Zhengzhou Jinyuan Wire and Cable Co., Ltd. >> Ydyp Electric Wire Good Supplier

Ydyp Electric Wire Good Supplier

Ydyp Electric Wire Good Supplier
Price: US $ 0.001/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Meter
Pay Type: T/T,Western Union,Money Gram
Prod Model: YDYp
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
None: None
Type: Insulated
Conductor Type: Solid
Conductor Material: Copper
Insulation Material: PVC
Certification: CE
Application: Household
Sheath Material: None
Range Of Application: Household
Brand: Jytop

Product Description

YDYp Electric Wire:

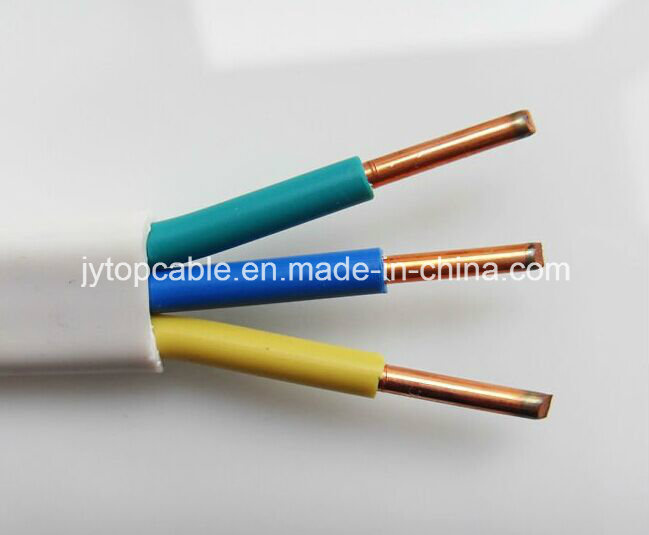

3 core copper cables in PVC shell type YDYP
1,pvc insulation copper conductor
2,YDYP cable
3,BVVB  type
4,China manufacturer

Specifications:
Standards: 227IEC52/53, equivalent to VDE0218 BS6500
Conductor: bare stranded copper-class5 IEC228
Insulation/sheath: PVC
Voltage rating:450/750V
Temperature range: 0 to 70
Main colors: HAR color code
Minimum bending radius: 7.5*overall dia
Application: including fixed wiring concealed in conduits or exposed, on insulators and switching panels and distributions boards. These cables maybe use in wet and dry locations & in outdoor application for street lighting poles.
1 Standard
GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227

2 Voltages:
450/750V300/500V300/300V.(600/1000V also available)
Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.
Impedance (ohms): 100±2ohm

3 Application
The products is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less

4 Model and Name

single core 450/750V PVC Insulated Copper Electric Wire

Dimensional Data

Size (sq. mm)
Class Of ConductorDiameter Over Conductor (mm)RT Of Insulation (mm)Diameter Over Core (mm)Size ECC Conductor (sq. mm)

1.521.380.72.81.0
1.531.590.73.01.0
2.521.780.83.41.5
2.532.010.83.71.5
422.550.84.21.5
623.120.84.72.5
1024.051.06.14.0
1624.801.06.86.0

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.

Company website: www.jytopcable.com
