Ye2 Three Phase AC Induction Motor

Name: Ye2 Three Phase AC Induction Motor
Brand: all-electronics-online.com
SKU: 732016682
Availability: InStock
Rating: 4.7 (146 reviews)

Price:	US $ 1435/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YE2-250M-4
Number Of Stator:	Three-Phase
Function:	Driving
Starting Mode:	Soft Starter
Brand:	Zuoli

Product Description

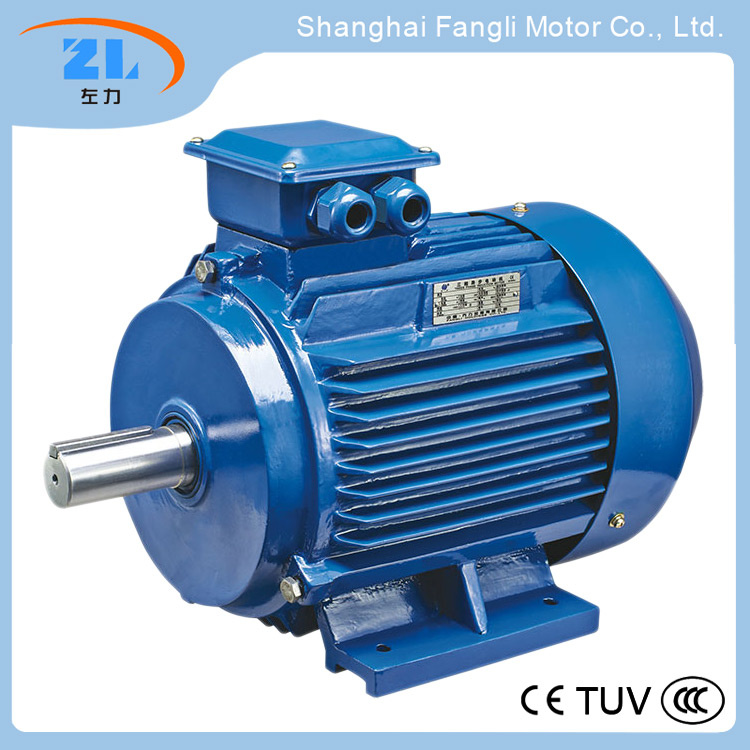

YE2 series high efficiency three phase asynchronous motor is a kind of totally enclosed fan-cooled squirrel-cage induction motor.

It has lots of features such as high efficiency and energy saving,large starting torque,excellent performance,low noise and vibration, compact structure,high reliability,easy operation and etc.

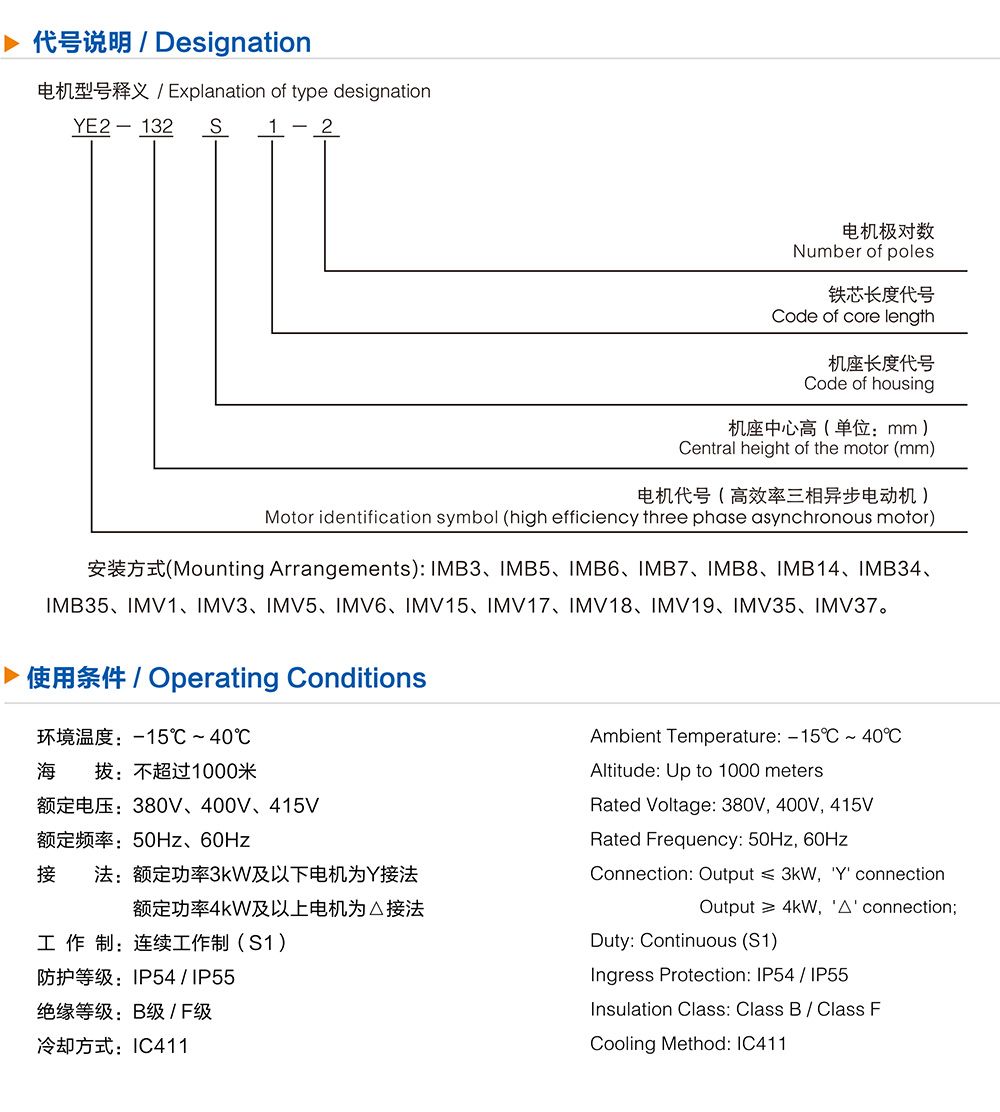

Dimensions and rated output of YE2 MOTORS are in conformity with international standard IEC60072-1:1991;on request of the user, we supply YE2 MOTORS in line with IEC60034-30 High Efficiency standard(IE2)as well.

It is widely used as drive mechanism in various kinds of machineries like machining tools,pumps,fans,compressors,gear boxes etc.and can also be used in transportation,agricultural machinery,printing industry and food industry.

Ordering Informations

1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor.

2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department .

3.The catalogue is only fpr reference,and there may be variations.

4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately.

Our Servies

WE ARE READY

Q: Do you offer OEM service?
A: Yes.

Q: What is your payment term?
A: 30% T/T in advance, 70% before delivery. Or Paypal.

Q: What is your lead time?
A: About 10-45 days after receiving deposit.

Q: What certificate do you have?
A: We have CE, ISO, CCC and so on.

Contact person: Tracy Zhang
Mobile:+86 17317975107

Fangli Holdings Co., Ltd. is a private enterprise integrating research and development, manufacturing and marketing, specialized in small and medium sized asynchronous motors.

Our main Products including YB2 series flameproof three phase asychronous motors, YBF2 series flameproof three phase asychronous motors for fan, YBX3 series premium efficiency flameproof three phase asynchronous motors, Ys serise Aluminium-housing three phase asynchronous motor, YE2 series high efficiency three phase asynchronous motor, YE3 series premium efficiency three phase asynchronous motor, etc.

We supply different kinds of products with high quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.

Our company have passed ISO9001: 2008 international quality management system attestation, we insist on technology innovation and scientific management improving quality. Our motors have obtained CCC, CE and Pohs approval, YB2 series motors and YBF2 series motors have gained Explosion-proof certificate and MA/KA certificate.

Our products have covered 29 provinces in our country, and have good reputations in such as Europe, Southeast Asia, the Middle East, South America, Africa, Russia etc. Warmly welcome customers to contact and visit us, we could like to establish stable and long term relationships of business with worldwide customers on mutual benefits.
