Ye3 Series (IE3, GB2) Premium Efficiency Induction Electric AC Motors

Name: Ye3 Series (IE3, GB2) Premium Efficiency Induction Electric AC Motors
Brand: all-electronics-online.com
SKU: 717644382
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 47-50/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YE3
Voltage:	Special Voltages Available
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	Ce

Product Description

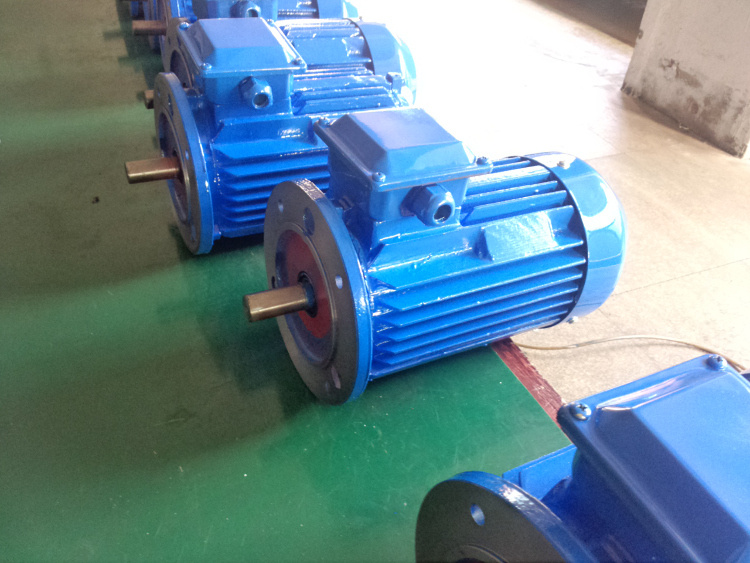

YE3 series (IP55) high effiency three-phase Electric Motor

Standard Features

Three-phase, 60 or 50Hz
Voltage: 230/460V (60Hz); 380-415V (50Hz)
Cast iron frames (80 up to 315L)
Squirrel cage rotor / Aluminum die cast
Totally Enclosed Fan Cooled TEFC (IP55)
Class "F" insulation
Continuous duty (S1)
Altitude: 3300 ft (1000 m)
Standard mouting: B3

Applications:

Blowers

Compressors
Pumps
Conveyor
Textiles

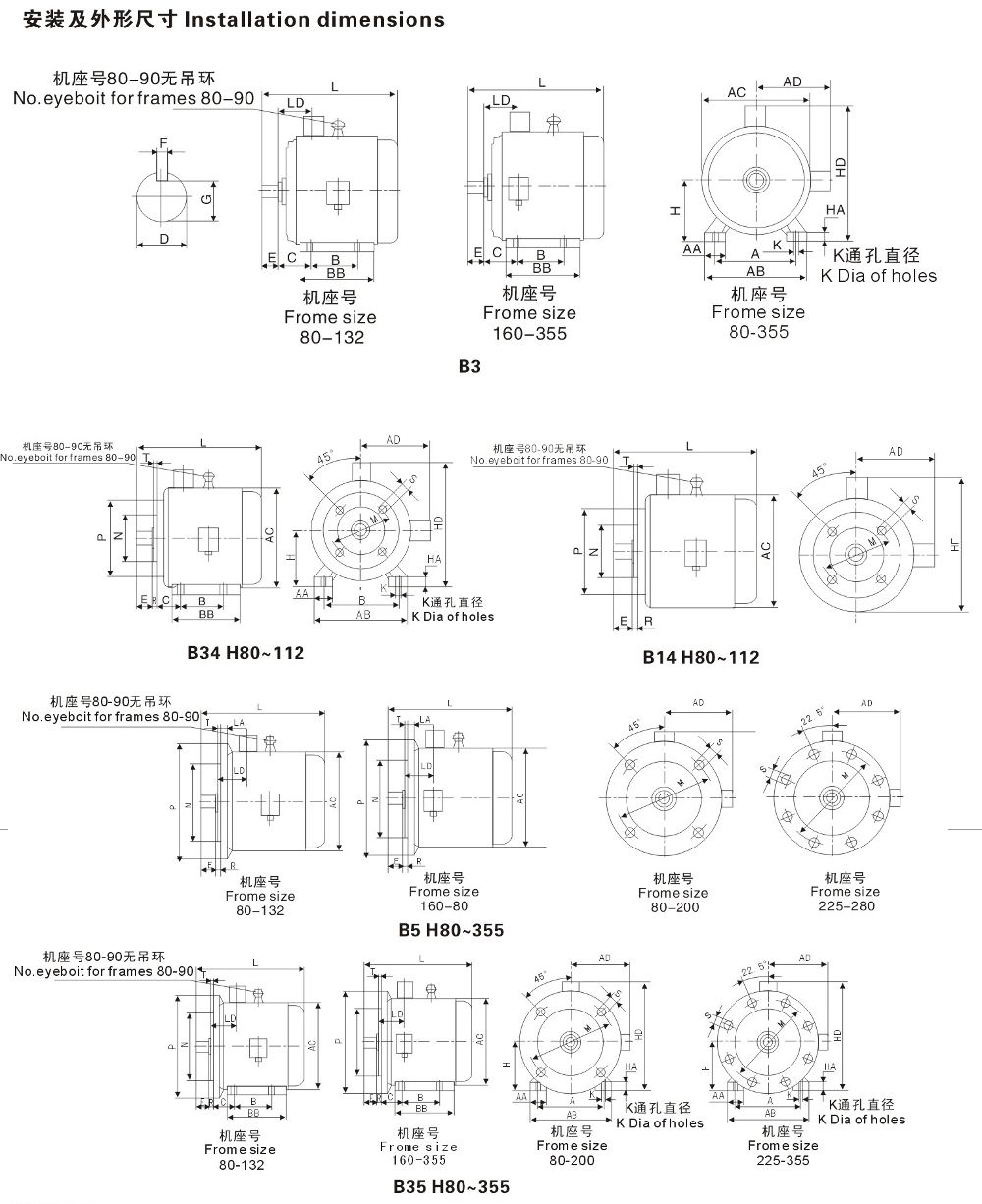

Frame Size	Flange No.	Pole	A	A/2	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	HD	HF	L
80M	FF165	2, 4,6	125	62.5	100	50	19	40	6	15.5	80	10	165	130	200	12	3.5	165	175	145	220		305
90S	FF165	2, 4,6	140	70	100	56	24	50	8	20	90	10	165	130	200	12	3.5	180	205	170	265		395
90L	FF165	2, 4,6	140	70	125	56	24	50	8	20	90	10	165	130	200	12	3.5	180	205	170	265		425
100L	FF215	2, 4,6	160	80	140	63	28	60	8	24	100	12	215	180	250	14.5	4	205	215	180	270	240	435
112M	FF215	2, 4,6	190	95	140	70	28	60	8	24	112	12	215	180	250	14.5	4	230	255	200	310	275	475
132S	FF265	2, 4,6	216	108	140	89	38	80	10	33	132	12	265	230	300	14.5	4	270	310	230	365	335	535
132M	FF265	2, 4,6	216	108	178	89	38	80	10	33	132	12	265	230	300	14.5	4	270	310	230	365	335	550
160M	FF300	2, 4,6	254	127	210	108	42	110	12	37	160	14.5	300	250	350	18.5	5	320	340	260	425	390	730
160L	FF300	2, 4,6	254	127	254	108	42	110	12	37	160	14.5	300	250	350	18.5	5	320	340	260	425	390	760
180M	FF300	2, 4,6	279	139.5	241	121	48	110	14	42.5	180	14.5	300	250	350	18.5	5	355	390	285	460	435	805
180L	FF300	2, 4,6	279	139.5	279	121	48	110	14	42.5	180	14.5	300	250	350	18.5	5	355	390	285	460	435	835
200L	FF350	2, 4,6	318	159	305	133	55	110	16	49	200	18.5	350	300	400	18.5	5	395	445	320	520	495	890
225S	FF400	4	356	178	286	149	60	140	18	53	225	18.5	400	350	450	18.5	5	435	495	350	575	550	865
225M	FF400	2	356	178	311	149	55	110	16	49	225	18.5	400	350	450	18.5	5	435	495	350	575	550	865
225M	FF400	4,6	356	178	311	149	60	140	18	53	225	18.5	400	350	450	18.5	5	435	495	350	575	550	895
250M	FF500	2	406	203	349	168	60	140	18	53	250	24	500	450	550	18.5	5	490	550	390	635	615	995
250M	FF500	4,6	406	203	349	168	65	140	18	58	250	24	500	450	550	18.5	5	490	550	390	635	615	995
280S	FF500	2	457	228.5	368	190	65	140	18	58	280	24	500	450	550	18.5	5	550	630	435	705	675	1030
280S	FF500	4,6	457	228.5	368	190	75	140	20	67.5	280	24	500	450	550	18.5	5	550	630	435	705	675	1030
280M	FF500	2	457	228.5	419	190	65	140	18	58	280	24	500	450	550	18.5	5	550	630	435	705	675	1080
280M	FF500	4,6	457	228.5	419	190	75	140	20	67.5	280	24	500	450	550	18.5	5	550	630	435	705	675	1080
315S	FF600	2	508	254	406	216	65	140	18	58	315	28	600	550	660	24	6	635	645	530	845		1180
315S	FF600	4,6	508	254	406	216	80	170	22	71	315	28	600	550	660	24	6	635	645	530	845		1290
315M	FF600	2	508	254	457	216	65	140	18	58	315	28	600	550	660	24	6	635	645	530	845		1210
315M	FF600	4,6	508	254	457	216	80	170	22	71	315	28	600	550	660	24	6	635	645	530	845		1320
315L	FF600	2	508	254	508	216	65	140	18	58	315	28	600	550	660	24	6	635	645	530	845		1210
315L	FF600	4,6	508	254	508	216	80	170	22	71	315	28	600	550	660	24	6	635	645	530	845		1320

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
