YEJ Three Phase Brake Induction Motors

Name: YEJ Three Phase Brake Induction Motors
Brand: all-electronics-online.com
SKU: 103208489
Availability: InStock
Rating: 4.6 (145 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YEJ series
Markets:	South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting

Product Description

Basic Info

Model NO.: YEJ802-YEJ355L2
Speed: Low Speed
Function: Driving
Number of Poles: 2
Certification: ISO9001, CCC, CE
Frame: 63~355
Protection Class: IP54 or IP55
Core Wire: 100% Copper Wire
Mounting: B3 B5 B35
Specification: With CE certificate
HS Code: 8501520000

Application: Universal
Number of Stator: Three-Phase
Casing Protection: Protection Type
Starting Mode: Direct on-line Starting
Brand: Qizhen
Housing: Cast Iron / Aluminium
Insulation Class: F
Duty: S1
Trademark: QIZHEN
Origin: Taizhou, Zhejiang, China

Product Description

Frame: From 56 to 365
Power: From 0.12Kw to 355Kw
Protection Class: IP54
Insulation Class: Class F
Rate Voltage: 380V 50Hz

Applications: Mechanical equipment and driving machines where rapidly and accurate braking is demanded
Feature: Spring set brake. Power off operation manual release. Resets automatically. One-half period rectification.

Model	power		pole	volt	frequencuy	current	effiency	power factor	startingtorque	starting current	max torque
Model	Kw	Hp	speed r/min	volt	Hz	A	%	power factor	rated torque	rated current	rate torque
YEJ80M1-2	0.75	1	2/2825	380	50	1.8	75	0.84	2.2	6.5	2.3
YEJ80M2-2	1.1	1.5	2/2825	380	50	2.5	77	0.86	2.2	7	2.3
YEJ90S-2	1.5	2	2/2840	380	50	3.4	78	0.85	2.2	7	2.3
YEJ90L-2	2.2	3	2/2840	380	50	4.8	80.5	0.86	2.2	7	2.3
YEJ100L-2	3	4	2/2880	380	50	6.4	82	0.87	2.2	7	2.3
YEJ112M-2	4	5.5	2/2890	380	50	8.2	85.5	0.87	2	7	2.3
YEJ132S1-2	5.5	7.5	2/2900	380	50	11.1	85.5	0.88	2	7	2.3
YEJ132S2-2	7.5	10	2/2900	380	50	15	96.2	0.88	2	7	2.3
YEJ160M1-2	11	15	2/2930	380	50	21.8	87.2	0.88	2	7	2.3
YEJ160M2-2	15	20	2/2930	380	50	29.4	88.2	0.88	2	7	2.2
YEJ160L-2	18.5	25	2/2930	380	50	35.5	89	0.89	2	7	2.2
YEJ180M-2	22	30	2/2940	380	50	42.2	89	0.89	2	7	2.2
YEJ200L1-2	30	40	2/2950	380	50	56.9	90	0.89	2	7	2.2
YEJ200L2-2	37	50	2/2950	380	50	69.8	90.5	0.89	2	7	2.2
YEJ225M-2	45	60	2/2960	380	50	8	91.5	0.89	2	7	2.2

YEJ series three phase squirrel-cage induction motors, are totally enclosed fan-cooled ND equipped with D. C. Round brake. It have advantages: Rapid braking, simple structre, high reliability and wide application, further more, the brake can be controlled by manual where rapid stop and accurate braking are demanded.

Any requirements, please feel free to contact with us, we can make products according your specs and supply the competition price.

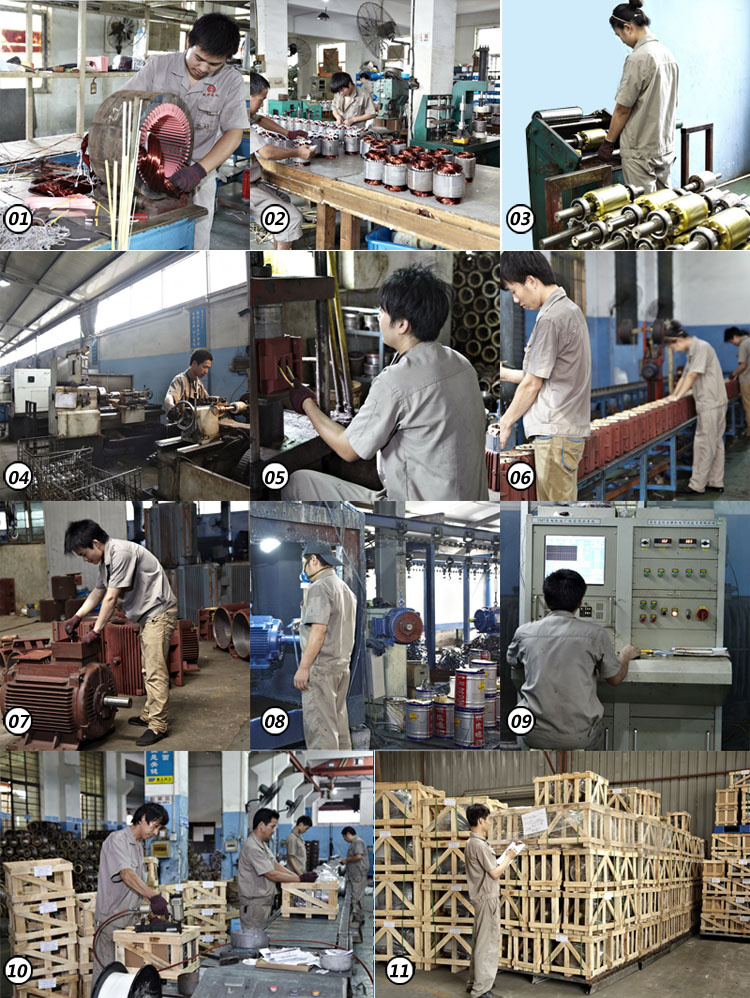

We changed our company name to Wenling Xinnuo Electric Motor Co., Ltd. is advanced enterprise specializing in all type of MID-size and small-size electric motors, electric machines. The products include Y and Y2 series three-phase asynchronous, MS series three-phase asynchronous motor with aluminium housing, YO2 series three-phase asynchronous motor, YL series monophase machine, YD series multispeed machine, YCT series electromagnetic ajustable-speed motor, frequency adjustable-speed motor and fractional electric motor, YEJ2 series electromagnetic-brake motor, DSM and M50/4 single-phase resistant start asynchronous motors, etc.

Our management system has been assessed and passed the ISO 9001: 2000 Certificate, our products have got the CCEE, CCC, CQC and CE certificates, moreover we are putting efforts to apply the approvals by UL, CSA, CE. The enterprise has the self-supporting import & export right.

With our high Quality, favorable price and excellent service, we are willing to cooperate with the friends in all circles to circles to create the flourishing future.
