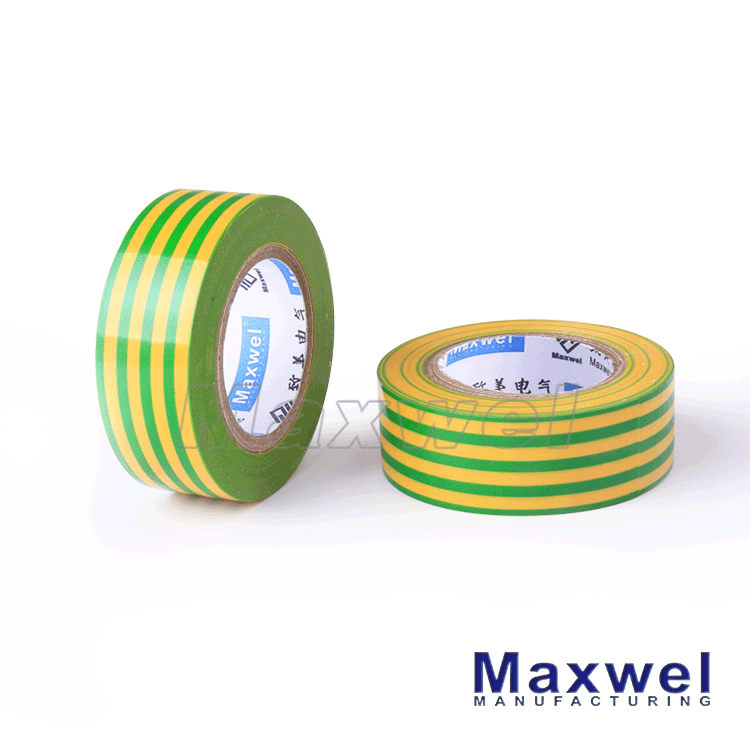

Yellow & Green PVC Electrical Insulation Tape

Prod Model:	130Z
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.13mm, 0.15mm, 0.18mm
Colour:	Black,Red,Yellow,Green,etc
Length:	up to 30m
Temperature:	up to 80 Deg C
Voltage:	up to 600V
Tensile Strength:	14-30 N/Cm
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Thermal Rating:	Y 90
Maximum Voltage:	20KV~100KV
Material:	PVC
Color:	All
Brand:	Maxwel

Product Description

PVC Rubber Adhesive Tape Made in China

Pvc insulation tape is made by smearing rubber like pressure-sensitive adhesive on PVC film (its backing material )and mangling them, it has the feathers of insulation, fire-resistance, high-voltage- resistance and cold resistance. It can be used in many electronic spare parts, automobile wires, winding wires and insulation protection.

Main Specification

Backing: PVC film
Adhesive: Rubber
Thickness: 0.10mm-0.22mm
Tensile strenth: 14N/cm-30N/cm
Elongation at break: 160%-220%
Adhesion: 1.5N/cm

Description of pvc insualtion tape

Pvc insulation tape composed of soft film and rubber PSA, its charaterized by excellent insulation, good flame retardant and excellent resistance to low temperature. PVC Adhesive Tape is used for insulation protection of electrical wires and harness in automobile industry

Code	Backing& Adhesive	Thickness      (mm)	Adhesion    (N/cm)	Tensile  (N/cm)	Elongation        (%)	Temperature         (°C)	Voltage breakdown    (kv/mm)	Features &application
100D	PVC&      rubber	0.1	1.5	14	160	80	≥40	Used for wrapping electric wires and cables etc.
110D	PVC&      rubber	0.11	1.5	15	160	80	≥40
130D	PVC&      rubber	0.13	1.5	17	160	80	≥40
150D	PVC&      rubber	0.15	1.5	22	200	80	≥40
165D	PVC&      rubber	0.165	1.5	25	200	80	≥40	Be up to UL standard,used for wrapping electric wires and cables etc.
180D	PVC&     rubber	0.18	1.5	28	200	80	≥40
190D	PVC&     rubber	0.19	1.5	28	200	80	≥40
200D	PVC&     rubber	0.2	1.5	30	220	80	≥40
100Z	PVC&     rubber	0.1	1.5	14	160	80	≥40	Flame retardant , used for wrapping electric wires, automotive wire harness and cables ect.
110Z	PVC&     rubber	0.11	1.5	15	160	80	≥40
130Z	PVC&      rubber	0.13	1.5	17	160	80	≥40
150Z	PVC&      rubber	0.15	1.5	22	200	80	≥40
165Z	PVC&      rubber	0.165	1.5	25	200	80	≥40	Be up to UL standard, flame retardant , used for wrapping electric wires, automotive wire harness and cables etc.
180Z	PVC&      rubber	0.18	1.5	28	200	80	≥40
190Z	PVC&      rubber	0.19	1.5	28	200	80	≥40
200Z	PVC&      rubber	0.2	1.5	30	220	80	≥40
