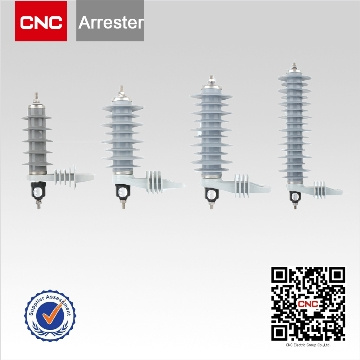

Yhws Polymer Lightning Arrester

Yhws Polymer Lightning Arrester
Price: US $ 26/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: YHWS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase: Three
Structure: Suspension Insulator
Material: Composite Polymer
Type: A Type Insulator
Application: Low-voltage
Brand: CNC

Product Description

Lightning Arrester

Specifications

thunder arrester:
1.Passed ISO9001 and IEC60099-4 standard.
2.The pass rate is up to 99.9%.
3.OEM and sample is provided

Polymer housed metal-oxide surge arrester nominal discharge current 5ka



1.The ambient temperature is not high than +40 celsius and not lower than -40 celsius.

2.The altitude above sea level do not exceed 1000-2000m.(Altiplano area should be indicated when order.)

3.The frequency in AC system is 50Hz or 60Hz.

4.Power frequency voltage which has been bearing on arrester for a long time do not exceed continuous operating voltage.

5.Max. wind speed do not exceed 35m/s.

6.Apply to the area where earthquake intensity is not exceed 8 degree.

7.The filthy area should be indicated before.


Lightening arrester 1
current impulse 51kv
Lightining current impulse 45
Switching current impulse 38.5
impulse withstand 150
Dimension 260*115
Body Material Silicone rubber
Partial Material resistance card(Zinc oxide)
Type YH10W-15kV
Function suit for transfprmers, switch gears,
distribute boxes, Vacuum circuit breaker" overload
voltage protection.
Rated voltage 15KV








Lightening arrester 2
Rated voltage 30KV
OPERATING VOLTAGE 24KV
CRAWLING DISTANCE 1600MM
Dimension 445*103
Body Material Silicone rubber
Partial Material resistance card(Zinc oxide)
Type YH10W-30kV
Function suit for transfprmers, switch gears,
distribute boxes, Vacuum circuit breaker" overload
voltage protection.
4/10μ sIMPULSE CURRENT 100ka

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
