Yj48 Full Copper Household Ventilation Fan Motor

Name: Yj48 Full Copper Household Ventilation Fan Motor
Brand: all-electronics-online.com
SKU: 650271155
Availability: InStock
Rating: 4.5 (75 reviews)

Price:	US $ 1-6/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJ4815
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Supply Voltage:	220-240V 50Hz 100-120Hz 60Hz
Core Material:	Sillicon Sheet
Wire Material:	Copper
Protection:	Resistance Protection
Application:	Household Appliances
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Winding Type
Casing Protection:	Open Type
Species:	Shaded Pole Motor
Starting Mode:	Induction Start
Certification:	Ce UL
Brand:	Yixiong

Product Description

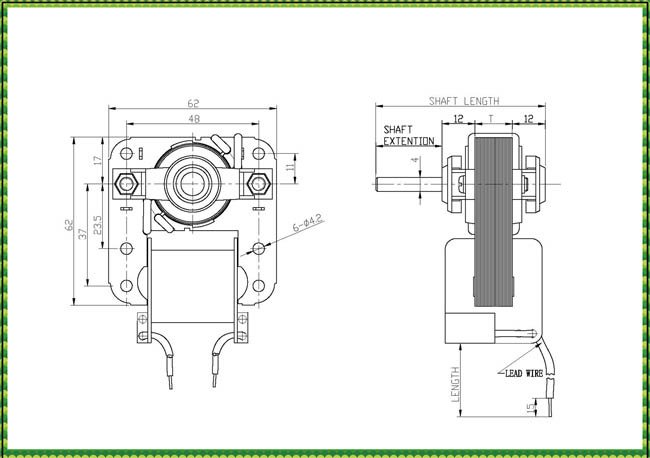

Motor size:
Model :YJ4810,YJ4812,YJ4813,YJ4815,YJ4820,YJ4825

Size : 48x48x10mm,48x48x12mm,48x48x13mm,48x48x15mm,48x48x20mm,48x48x25mm,

Shaft Length :70mm

Shaft Diameter :4mm

ON LOADING :

Voltage/Frequency :110V~130V/ 220-240V

Frequency: 50/ 60Hz

Spreed :1500-3000rpm

Current :0.07A~0.30A

Input power :6.0w ~ 20.0w

Exotherm :≤45k

Insulation Class :E

1.Safe and reliable ,low noise ,characteristics hard ,good starting ,long life ,etc .
2.This ac motor can be designed and produced as your request.

3.They can be any length of shaft and wire.

Model	Voltage	Frequency	Current	Power	Speed	Class
YJ48-08	110/220 VAC	50-60 Hz	0.08 A	6.5W	2500 RPM	E/B/F
YJ48-10	110/220 VAC	50-60 Hz	0.10 A	7.5 W	2650 RPM	E/B/F
YJ48-12	110/220 VAC	50-60 Hz	0.13 A	10.0 W	2800RPM	E/B/F
YJ48-15	110/220 VAC	50-60 Hz	0.15 A	13.5W	1300 RPM	E/B/F
YJ48-20	110/220 VAC	50-60 Hz	0.17 A	23.5 W	2400 RPM	E/B/F
YJ48-25	110/220 VAC	50-60 Hz	0.18 A	29.5 W	2500 RPM	E /B/F

Fan Motor Specification

Model: YJ6110, YJ6113, YJ6116, YJ6120, YJ6130, YJ6140
Size: 61x61x10mm, 61x61x13mm, 61x61x16mm, 61x61x20mm, 61x61x30mm, 61x61x40mm,
Shaft Length: As your request
Shaft Diameter: 5mm, 6mm

ON LOADING:
Voltage/Frequency: 220V~240V/50Hz 100V~120V/60Hz
Spreed: 2000~3000rpm
Current: 0.12A~0.50A
Input power: 12w~40w
Exotherm: ≤ 90k
Insulation Class: E

Product Feature

1. Safe and reliable, low noise, characteristics hard, good starting, long life, etc.
2. This AC motor can be designed and produced according to your request.

Model	Voltage	Frequency	Current	Power	Speed	Class
YJ61-10	110/220V AC	50/60 Hz	0.18 A	13.0 W	1850RPM	E/B/F/H
YJ61-13	110/220V AC	50/60 Hz	0.20 A	16.0 W	1800RPM	E/B/F/H
YJ61-16	110/220V AC	50/60 Hz	0.24 A	25.0 W	2500RPM	E/B/F/H
YJ61-20	110/220V AC	50/60 Hz	0.28 A	27.0 W	2400RPM	E/B/F/H
YJ61-25	110/220V AC	50/60 Hz	0.31 A	30.0 W	2480RPM	E/B/F/H
YJ61-30	110/220V AC	50/60 Hz	0.35 A	32.0 W	2450RPM	E/B/F/H
YJ61-40	110/220V AC	50/60 Hz	0.43 A	36.0W	2400RPM	E/B/F/H

Production

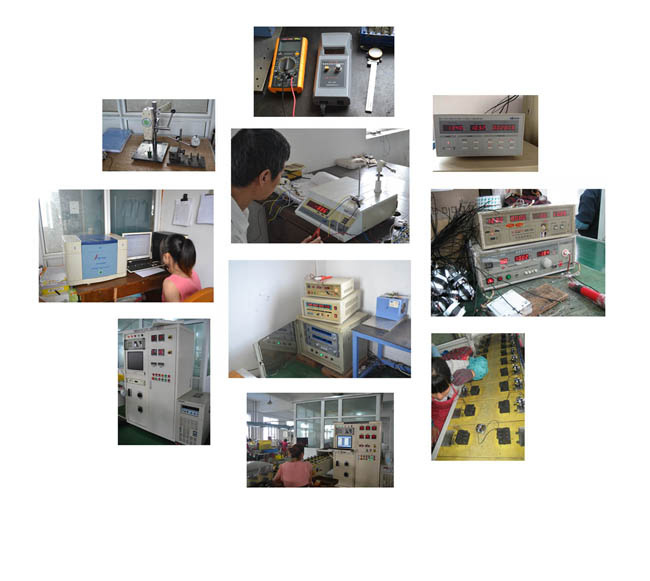

Inspection

Contact us

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
