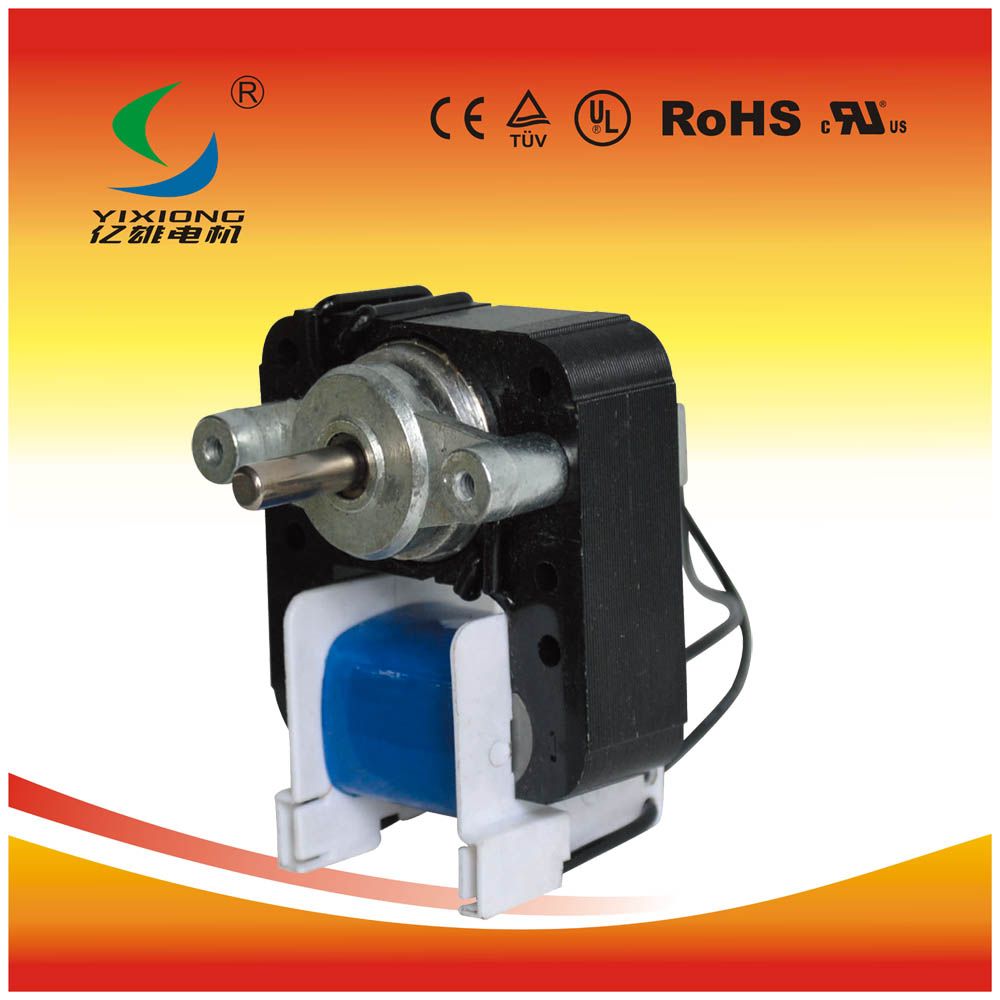

Yj48 Yixiong Brand C-Frame Single Phase Shaded Pole Motor

Name: Yj48 Yixiong Brand C-Frame Single Phase Shaded Pole Motor
Brand: all-electronics-online.com
SKU: 651966885
Availability: InStock
Rating: 4.9 (65 reviews)

Price:	US $ 1-6/Piece
Trade Terms:	others
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJ48
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Motor Type:	Shaded Pole Motor
Voltage:	100-240V AC
Frequency:	50/60Hz
Power:	25-90W
Insulation Class:	a/E/F/H
Noise:	<=45dB(a)
Life:	3000 Hours Min
Pole No.:	2 Pole
Stack Height:	8-40mm
Shaft Diameter:	4.6/5.0/5.5/6.0
Number Of Stator:	Single-Phase
Function:	Driving
Application:	Household Appliances
Starting Mode:	Induction Start
Certification:	Ce,UL
Brand:	Yixiong

Product Description

Fan Motor Discription :

Supply voltage: 110-240V AC; 50-60Hz; 110/220V 50-60Hz
Suitable Shaft Dia.:4 mm, Shaft length as your request
Stack size: 48*48 mm, thickness: 8-25 mm;
Mounting size: M3 Threading, disctance is 28 mm,

Rotation from shaft extention : CW or CCW;
Lead wire: model and length are as your request
Bearing style:Sleeve bearing is available;
Insulation Class: E / B / F / H
Protection type: Temperature protection
Sound level:≤45 dB(A);
Life:3000 Hours Min;

Product Feature

1. Fan-heater, Baking Oven, Air-cleaner, Fan, Exhaust fan, Humidifier, Water Dispemser etc small Household appliances;
2. It is safety and reliable, low noise, characteristics hard, good starting, long life, etc.;
3. This AC motor can be designed and produced according to your request.

Model	Voltage	Frequency	Current	Power	Speed	Class
YJ48-08	110/220V AC	50/60 Hz	0.08 A	6.5 W	2500 RPM	E/B/F/H
YJ48-10	110/220V AC	50/60 Hz	0.10 A	7.5 W	2650 RPM	E/B/F/H
YJ48-12	110/220V AC	50/60 Hz	0.13 A	10.0 W	2800 RPM	E/B/F/H
YJ48-15	110/220V AC	50/60 Hz	0.15 A	13.5 W	1300 RPM	E/B/F/H
YJ48-20	110/220V AC	50/60 Hz	0.17 A	23.5 W	2400 RPM	E/B/F/H
YJ48-25	110/220V AC	50/60 Hz	0.18 A	29.5 W	2500 RPM	E/B/F/H

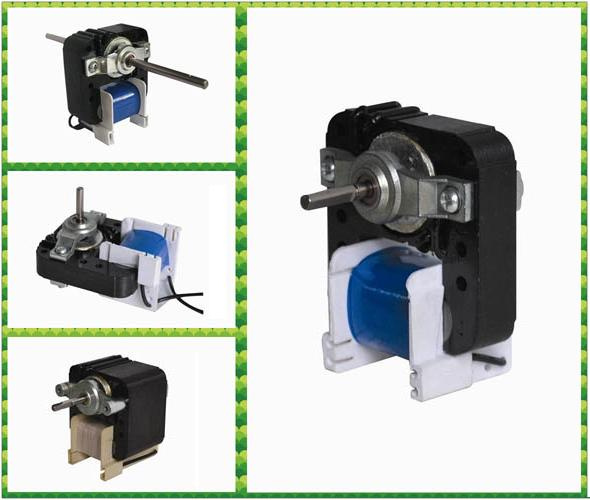

Image and Drawing

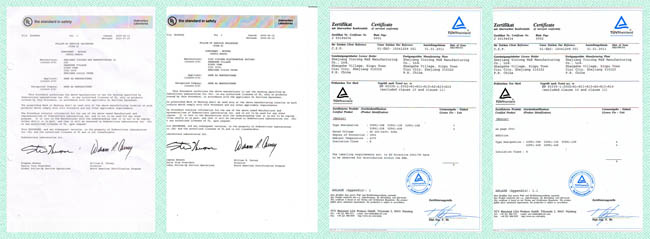

Certificate

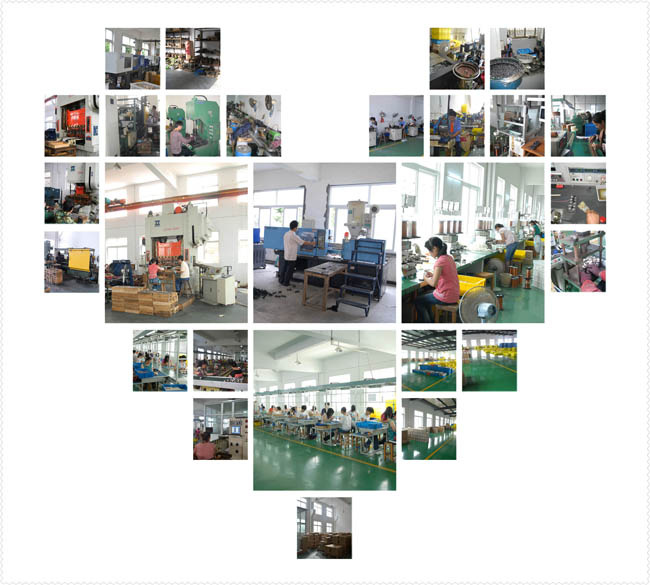

Production

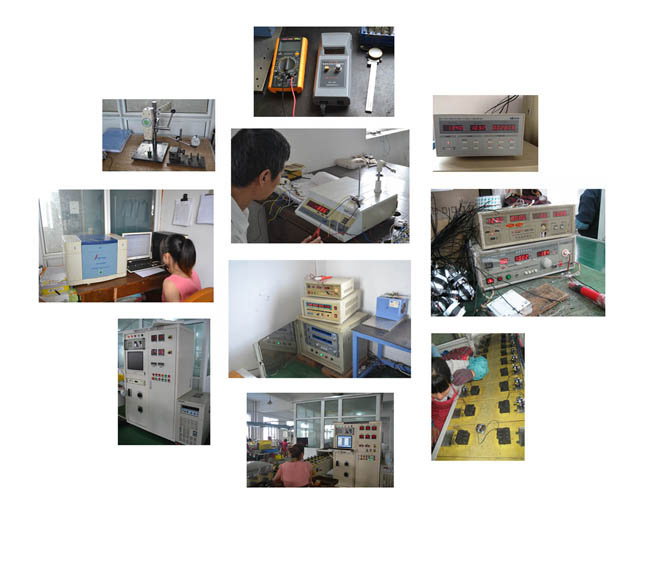

Inspection

Contact us

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
