YJ58 Series for "6" Ventilation Fan Motor in Home Appliances

Price:	US $ 1-3.5/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJ58
Supply Voltage:	220-240V 50Hz 100-120Hz 60Hz
Core Material:	Sillicon Sheet
Wire Material:	Copper
Protection:	Over Heater Protection
Number Of Stator:	Single-Phase
Function:	Driving
Application:	Household Appliance
Starting Mode:	Induction
Certification:	Ce TUV UL
Brand:	Yixiong

Product Description

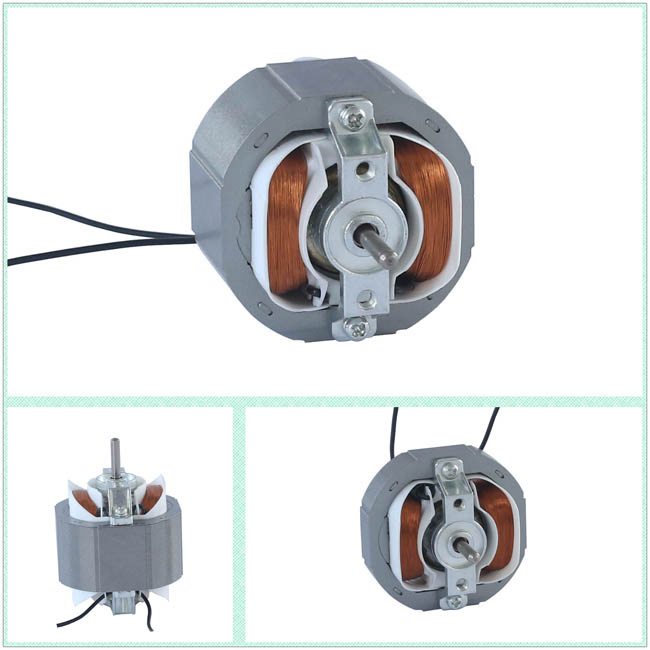

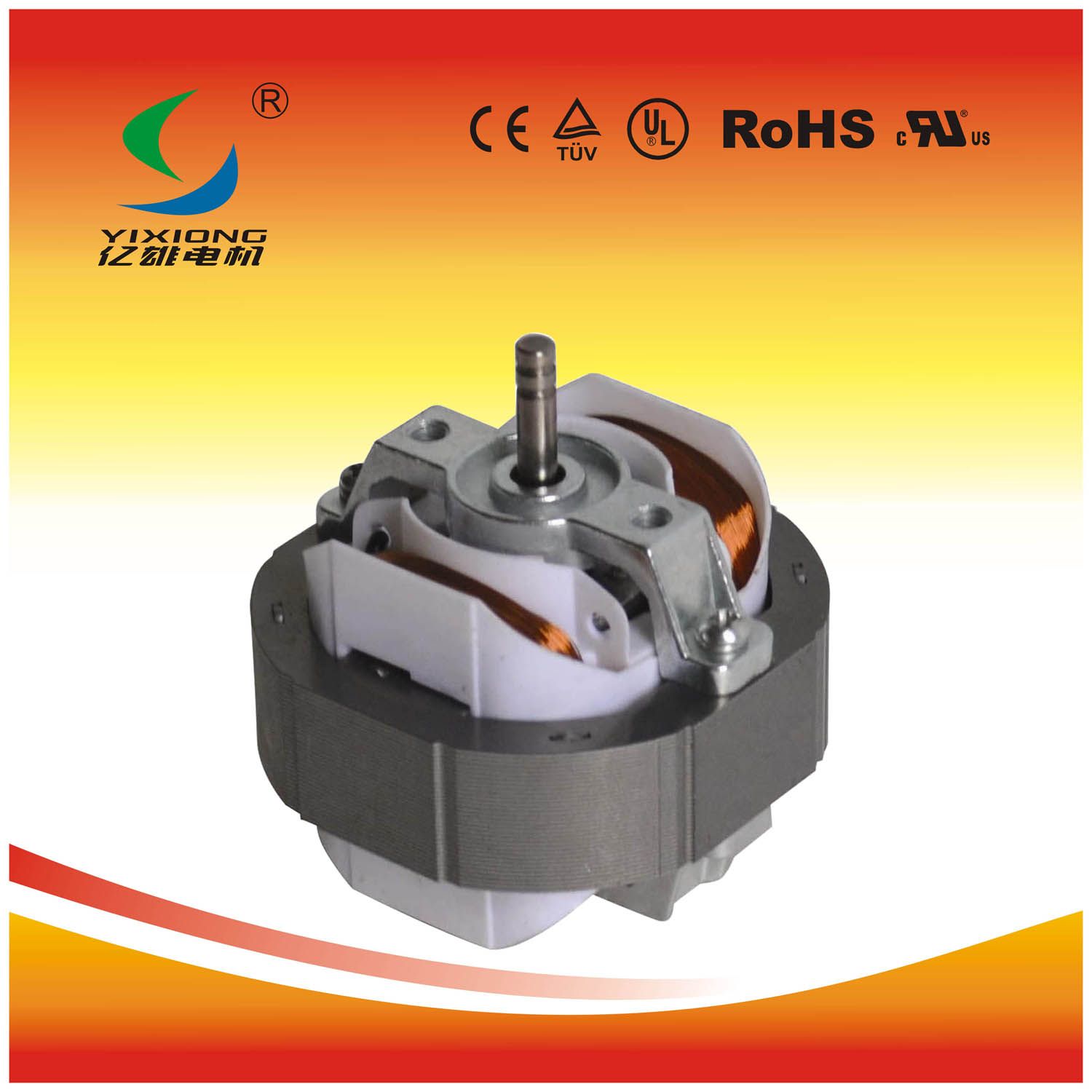

YJ58 Series for "6" Ventilation Fan Motor in Home Appliances Specification

Motor size:
1. Stator Size : 55*24mm, max dia 58mm; 50*50mm, max 52mm
2. Shaft Size : 4mm
3. Shaft length: can made according to your requirements
4. Thickness of stator : 10,12,16,20,25,30,35mm
5. Bearing : Sleeve bearing and Ball bearing are both available
6. Axial clearance : Max 1.0
7. Direction of rotation : CCW or CW
8. Voltage resistance : 1500V /0.5mA / min
9. Comply with Rohs Directive
10. Mainly products is approved by CE,TUV,UL

Motor Application:
1. Can be used in ventilation fan motor, box fan motor, etc
2. Safe and reliable, low noise, characteristics hard, good starting, long life, etc.
3. It can be designed and produced as your request.

Model	Voltage	Frequency	Current	Power	Speed	Class
YJ58-10	110/220 VAC	50-60 Hz	0.09 A	12.0 W	2400 RPM	E/B/F
YJ58-12	110/220 VAC	50-60 Hz	0.10 A	14.0 W	2800 RPM	E/B/F
YJ58-16	110/220 VAC	50-60 Hz	0.10 A	15.0 W	2300 RPM	E/B/F
YJ58-20	110/220 VAC	50-60 Hz	0.16 A	20.0 W	1750 RPM	E/B/F
YJ58-25	110/220 VAC	50-60 Hz	0.17 A	22.0 W	2400 RPM	E/B/F
YJ58-30	110/220 VAC	50-60 Hz	0.20 A	24.5 W	2500 RPM	E /B/F
YJ58-35	110/220 VAC	50-60 Hz	0.22 A	30.0W	2500 RPM	E/B/F

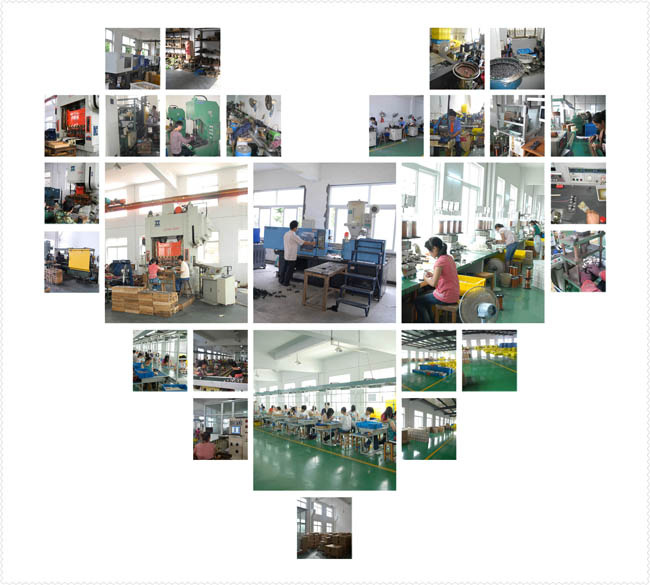

Motor Production

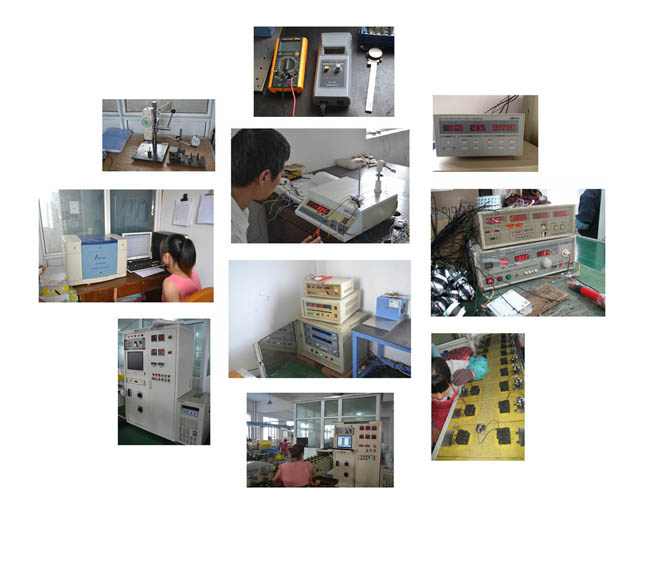

Motor Inspection

Please Contact us

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
