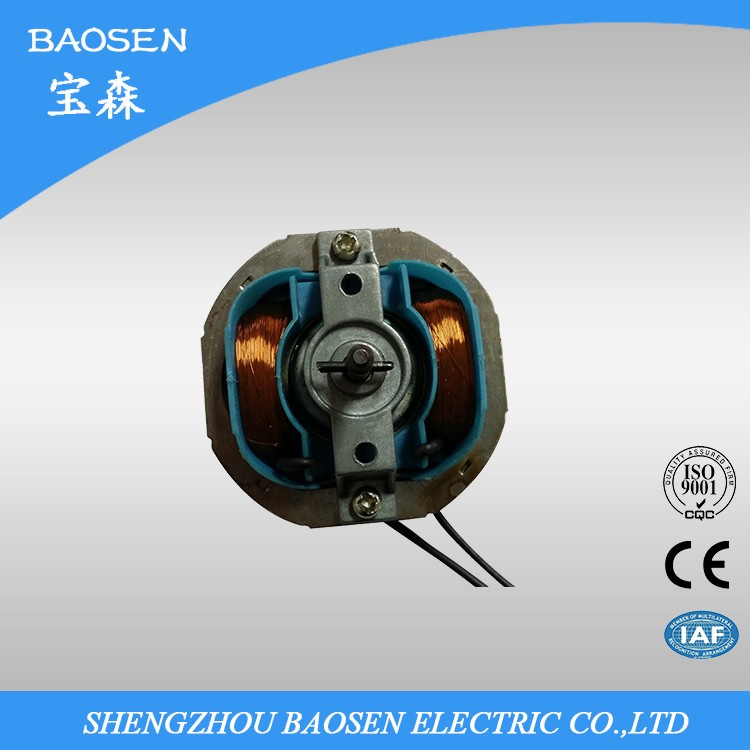

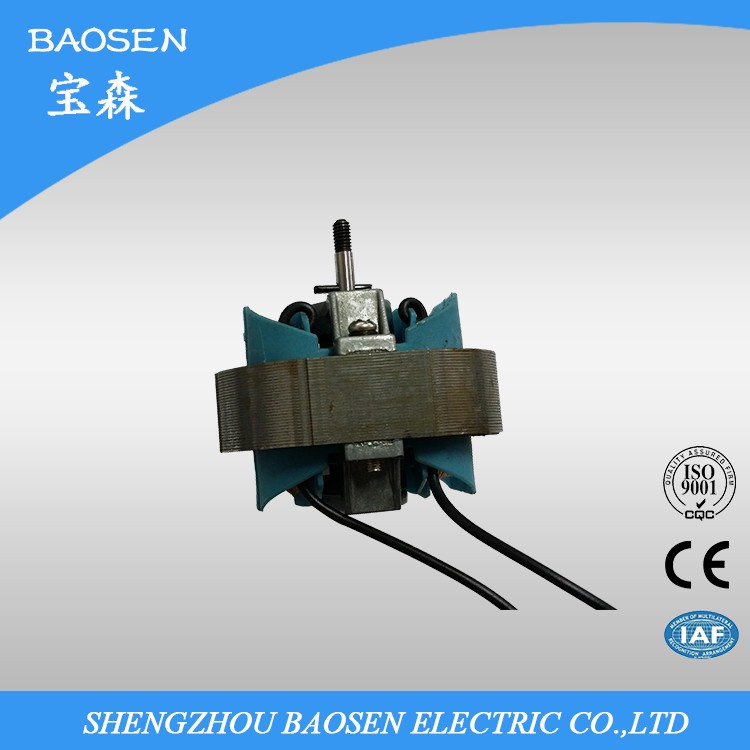

Yj58 Shaded Pole Fan AC Motor

Name: Yj58 Shaded Pole Fan AC Motor
Brand: all-electronics-online.com
SKU: 828838885
Availability: InStock
Rating: 4.7 (99 reviews)

Price:	US $ 2.5-5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Number Of Stator:	Single-Phase
Function:	Driving
Brand:	Lanfang

Product Description

Styles motors for shaded pole series:YJ5

Main technical parameter

Item	Voltage	Frequency	Insulation grade	Size	No-load Performance			Load Performance
	Voltage	Frequency	Insulation grade	Height	Input Current	Input Frequency	Speed of Rotation	Input Current	Input Frequency	Power Factor	Rotation Rate	Output Frequency	Rated Torque
	V	Hz		mm	A	W	r/min	A	W		r/min	W	g.cm
YJ58-10A/1	220/240	50	E	10	0.1	10.	2600	0.12	14	0.50	2300	1.40	50
YJ58-10B/2	120	60	E	10	0.16	10.5	3300	0.18	14.5	0.60	2400	1.45	50
YJ58-12A/3	220/240	50	E	12	0.1	12.5	2600	0.13	16	0.55	2400	1.50	60
YJ58-12B/4	120	60	E	12	0.16	12	3350	0.20	16.5	0.65	2500	1.55	60
YJ58-16A/5	220/240	50	E	16	0.11	13.5	2700	0.15	17	0.58	2350	1.95	80
YJ58-16B/6	120	60	E	16	0.17	14	3400	0.21	18	0.62	2400	2.0	80
YJ58-20A/7	220/240	50	E	20	0.115	13.5	2750	0.14	18	0.60	2400	2.5	100
YJ58-20B/8	120	60	E	20	0.175	15.5	3400	0.23	21	0.65	2500	2.6	100
YJ58-30A/9	220/240	50	E	30	0.145	15	2800	0.16	20	0.63	2450	3.0	120
YJ58-30B/10	120	60	E	30.	0.19	17	3400	0.28	25	0.66	2500	3.15	120

Main usage:Can be used for fan heater, Air cleaner, automatic hand dryer, mosquito killer, humidifier, Foot Bath and small exhaust fan etc.

Remarks:The motors can be customized according to the different requirement of rotation direction, Specification and length of lead out line , Length of output shaft .

Warranty:
1. Total warranty/Guarantee: 12 months
2. Warranty of battery: 12 months
Payment Terms:
1. T/T, Cash, L/C, Paypal 30% deposit, 70% balance before shipment
3. Lead time: 15 days after received deposited for 1000sets LED flashlights
4. Delivery way: EMS, UPS, DHL, FedEx, Sea transportation
Shipping:
For Sample:
1. EMS, UPS, DHL, Fede
2. EXPRESS: Around 5-7 working days to arrive
Bulk Order:
1. QTY of 20GP: 10, 000PCS Torch. Powerful flashlight, super bright flashlight, long range flashlight, long work life flashlight, tatical flashlight, CREE LED flashlight,
2. Via Sea
3. Delivery time: We will finish production in 15 days for MOQ 1000PCS

What's the MOQ?
- 500pcs.

What's the delivery time?
- Around 15-20days.(Depend on your QTY)after receiving the deposit.

Can I print my own logo?
- Yes,we can. we can make the sample as your sample or design drawing.

Can I take a sample for quality check?
- Sure.

What is your target /main market?
- To be honest, our goods enjoy a great popularity in the global market,

such as Asia, Middle East, South America, Africa, East and West Europe and a few Northern American areas.

what does your factory do regarding quality control?
- Specializing in AC motor for 21 years We have passed the ISO9001-2008 Certificate and CCC certificates. We give a 100% full inspection from the incoming materials to the final finished products. We strictly control the quality of the motor according to the ISO9001-2008.

We supply different kinds of products with high quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
