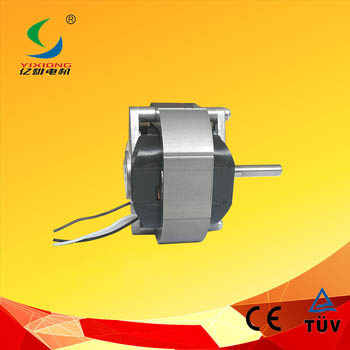

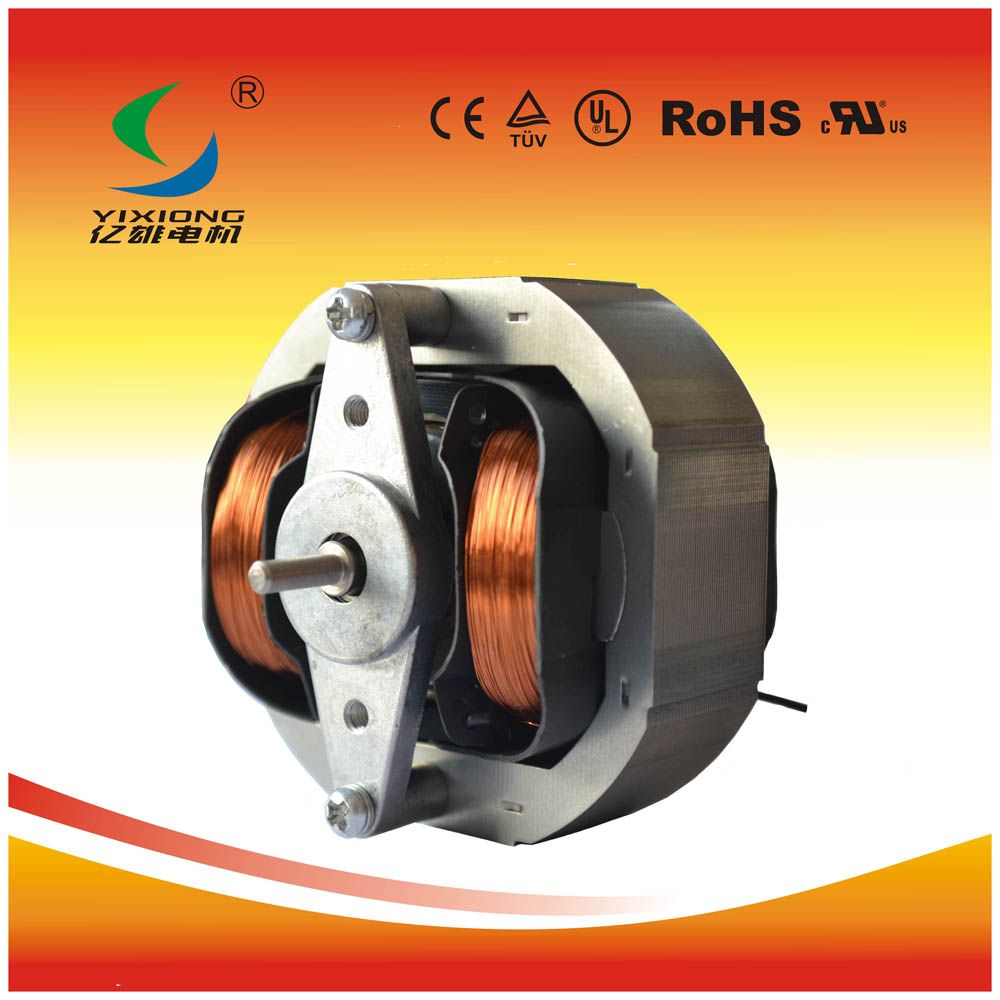

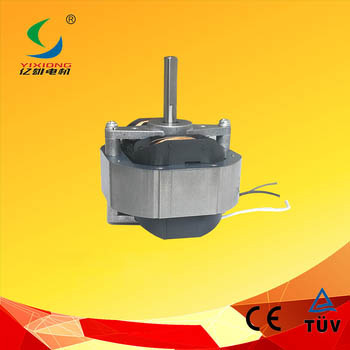

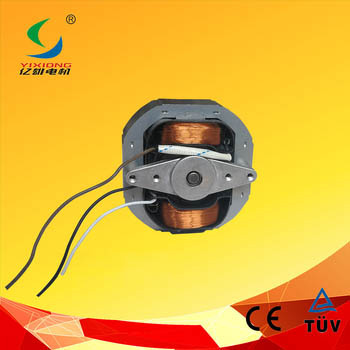

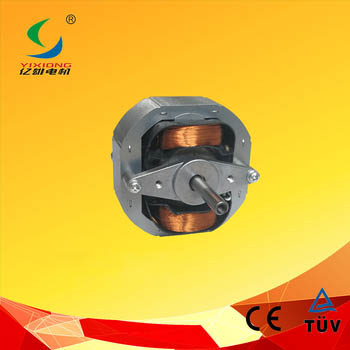

Yj80 (2P) Long Life Shaded Pole Motor

Yj80 (2P) Long Life Shaded Pole Motor
Price: US $ 0.8-4.5/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T
Prod Model: YJ80(2P)
Motor Type: Shaded Pole Motor
Supply Voltage: 220-240V 50Hz
Wire Material: Copper
Power: 35-90W
Insulation Class: a/E/B/F
Usage: Home Appliances
Life: 3000 Hours Min
Structure: Electromagnetic
Application: Household Appliance
Brand: Yixiong

Product Description

Technical Specification

1. Stator size: 73*73.2mm

2.Shaft size: 7mm or 8mm, Length can be done by your request

3.Thickness of stator: 20,25,30mm

4.Bearing: Ball Bearing

5 Direction of rotation(shaft extension end to see):C.C.W or C.W.

6.Axial clearance: Max 0.00

7.Voltage resistance: 1500V/0.5mA/min

8.Insulation resistance: Cold ≥ 50MΩ, Hot≥ 20MΩ

9.Comply with Rohs Directive



Motor Feature

1. Speed level : 2 level (high and low)
2. Voltage : Bi-voltage
3. Applications : Heater, Heater fan, Cooler fan, Ventilation fan, Exhaust fan, Duct fan, Electric mosquotp Killer etc.




ModelS in drawingVoltagePowerSpeedInsulation Class
YJ802020110-120V / 220-240V35W2400-2500RPME/B/F
YJ802525110-120V / 220-240V40W2400-2500RPME/B/F
YJ803530110-120V / 220-240V50W2400-2500RPME/B/F
Descripition of Goods





Company Introduce


FAQ


1.What's the MOQ?

  1500pcs



2.What's the delivery time?

  Around 25 days.



3.Can I take a sample for quality check?

 Sure.



4.What is your main market ?

  Our products  are  export  to Japan,Korea,America,Russia,Middle East,Europe,some country  from Southeast Aisa.More serve our god,we accept OEM/ODM plan in precision stamping parts ,precision injection plastic,presicion casting etc.



5.What does your factory do regarding quality control?

  We have ISO9001-2000 approval.Our products are approved CE,TUV,UL etc.

CONTACT




Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
