YJ82 16W Electric Motor Used on Refrigerated Display Cases

YJ82 16W Electric Motor Used on Refrigerated Display Cases
Price: US $ 2.6-6/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T
Prod Model: YJ8225
Motor Type: Shaded Pole Motor
Supply Voltage: 220-240V 50Hz
Bearing Type: Sleeve Bearing
Wire Material: Copper Wire
Structure: Electromagnetic
Certification: Ce
Brand: Yixiong

Product Description

YJ82 16W Electric Motor Used on Refrigerated Display Cases
Motor size:

1. Stator diameter: 83*83 mm
2. Shaft diameter: 6/7/8 mm, length can be done by your request
3. Bearing : Sleeve bearing is available
4. Lead wire: 2*300mm, also can be made according to your demands
5. Number of pole: 4 pole
6. Direction of rotation: CWor CCW
7. Thickness of stator : 13,19,24mm
8. Axial clearance : Max 1.0
9. Comply with Rohs Directive
10. Mainly products is approved by CE
11. Insulation resistance : cold ≥50MΩ, Hot≥20MΩ
12. Voltage resistance : 1500V /0.5mA / min


Application
1. Refrigerator, Ice chest, Condensing Plant, Fanners etc.,
2. It is safety and reliable, low noise, characteristics hard, good starting, long life, etc
3. It can be designed and produced as your request.



ModelVoltageFrequencyCurrentPowerSpeedClass
YJ82-13110/220 VAC50-60 Hz  0.35 A  36.0 W  1400 RPM E/B/F
YJ82-16110/220 VAC50-60 Hz  0.42 A  42.0 W  1300 RPME/B/F
YJ82-19110/220 VAC50-60 Hz  0.48  A  48.0 W  1550 RPME/B/F
YJ82-25110/220 VAC50-60 Hz  0.56 A  54.0 W  1350 RPME/B/F
YJ82-30110/220 VAC50-60 Hz  0.65 A  65.0 W  1400 RPME/B/F
YJ82-40110/220 VAC50-60 Hz  0.75 A  78.0 W  1300 RPME /B/F

Blade ModelMaterialWind DirectionDiaAngleThickness
F200AL/SilverySucking/ Blow200mm28°/34°0.8mm
F230AL/SilverySucking/ Blow230mm28°/34°0.8mm
F250AL/SilverySucking/ Blow254mm28°/34°0.8mm
F300AL/SliverySucking/ Blow300mm28°/34°0.8mm

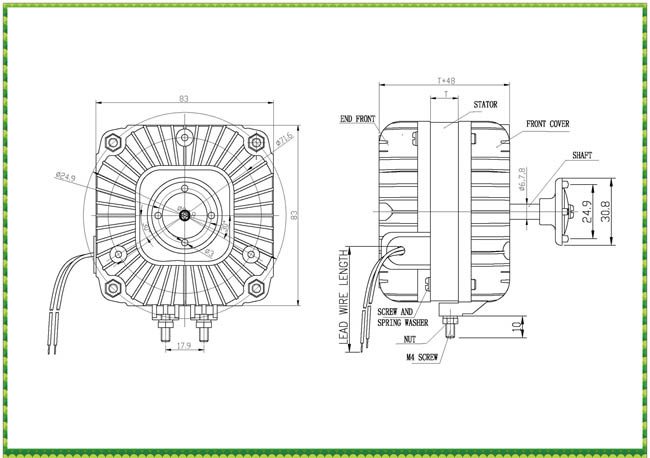

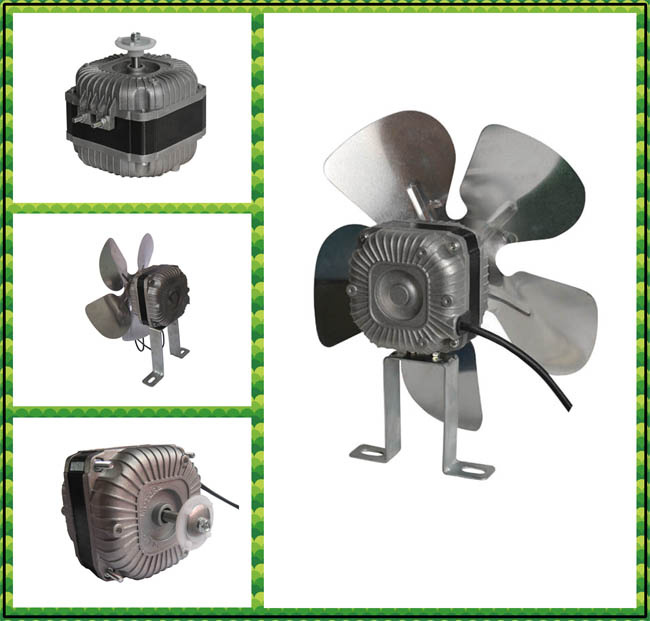

Drawing and Image

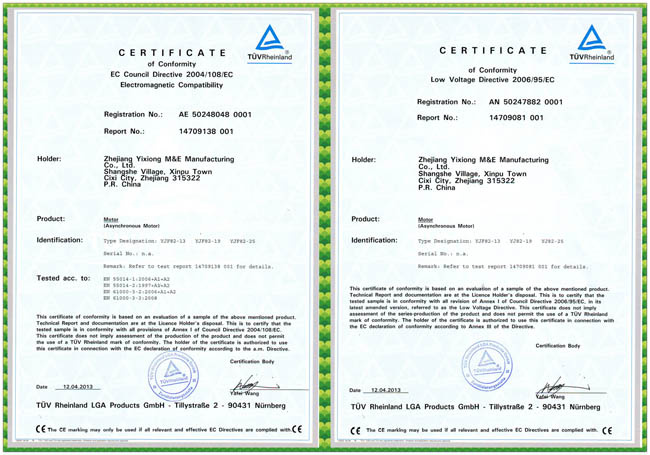

Certificate

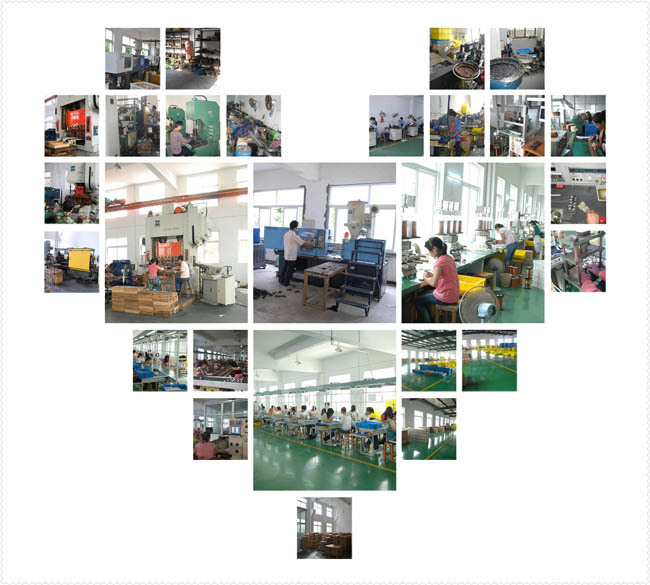

Production




Contact us





Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
