Yj82 Shaded Pole Motor for Ice Chest/Condenser
| Price: |
US $ 0.6-3.5/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
YJ82 |
| Place Of Origin: |
China (Mainland) |
| Scope Of Application: |
Home |
| Usage: |
Air Conditioner Parts |
| A Of Size: |
13-30mm |
| Shaft Dia: |
6-8mm |
| Volt: |
110-240V |
| Power: |
40-90W |
| Torque: |
80-150mn.M |
| Speed Rated: |
1000-3000rpm |
| Typical Apply: |
Ice Chest, Condensing, Ventilator |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |
| Brand: |
Ritscher |
Product Description

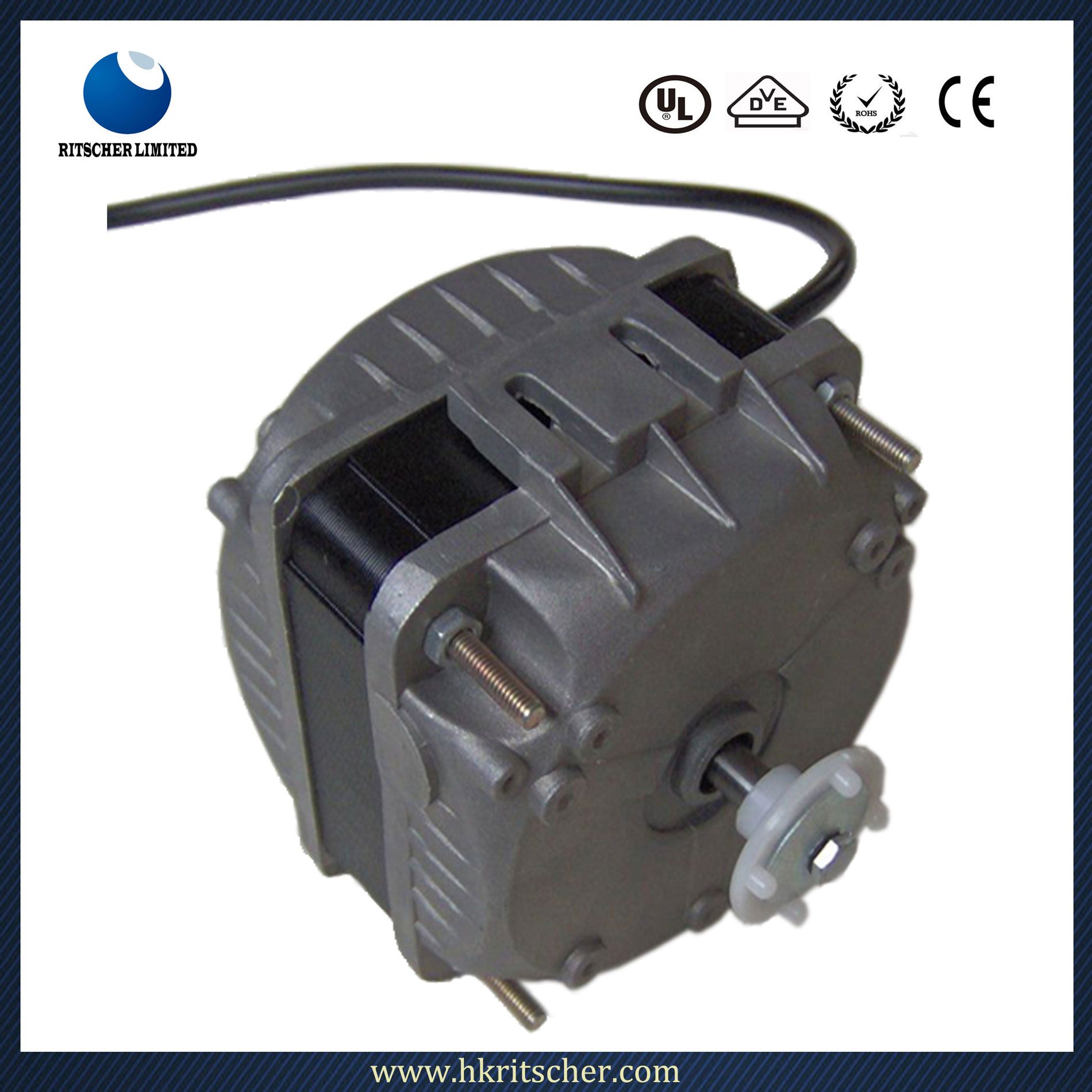

YJ82 shaded pole motor for ice chest/condenser
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used:
Compact high-performance fan motor used on Refrigerator, Ice Chest, Condensing plant, Ventilator Etc
1. Stator size: 82*25mm
2. Speed: 1750RPM
3. Safe, reliable, low noise, good starting, long life
Voltage(V): 110-240
Frequency: 50/60Hz
Current(A): 0.75
Input Power: 70W
Torque: 100mN. M
Shaft diameter(mm)=4-6mm
Shaft length(mm)=according to customer's requirement
Speed(r/min)=according to customer's requirement
Current(A)=according to customer's requirement

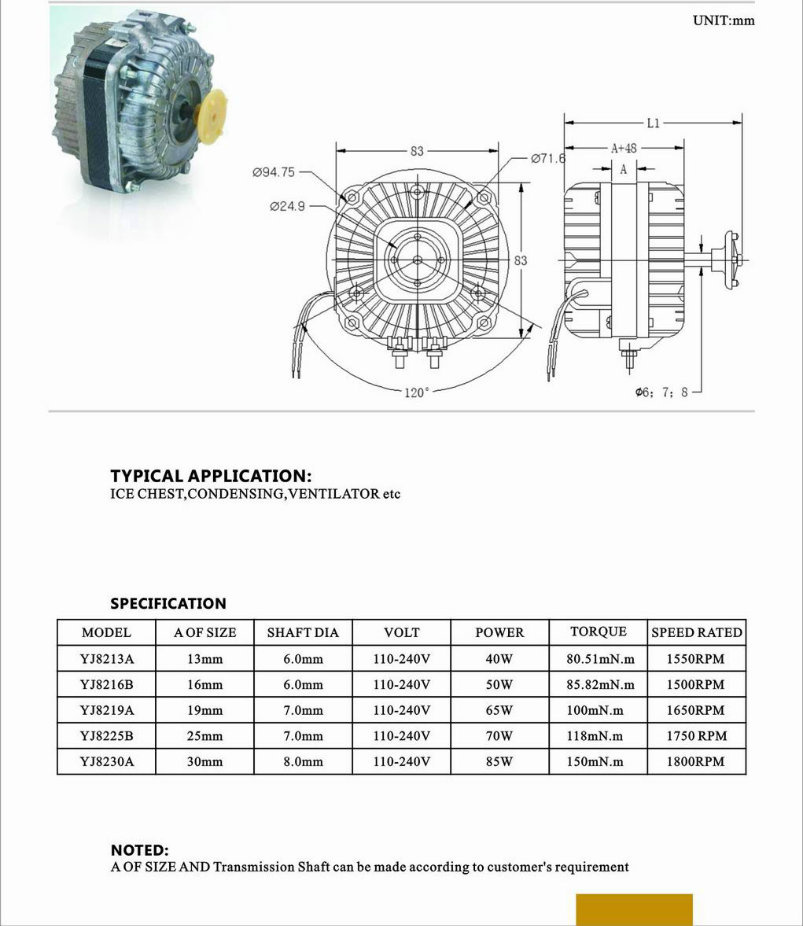

Input power(W)=according to customer's requirement | MODEL | STATOR SIZE | SHAFE DIA | VOLT | INPUT POWER | TORQUE (g.cm) | SPEED RATED |
YJ8213 |
13mm |
5mm |
110-240V |
40W |
80.51mN.m |
1550RPM |
YJ8216 |
16mm |
6mm |
110-240V |
50W |
85.82mN.m |
1500RPM |
YJ8219 |
19mm |
7mm |
110-240V |
65W |
100mN.m |
1650RPM |
YJ8225 |
25mm |
7mm |
110-240V |
70W |
118mN.m |
1750RPM |
YJ8230 |
30mm |
8mm |
110-240V |
85W |
150mN.m |
1800RPM
|
ABOUT US
Ritscher group was set up in 2006.we always focus on micro-motors for household electrical appliance and industry appliance since setting up.currently we have two professional micro-motor factories in China which severally located in Ningbo city and Foshan city.it has an area of 25,000 square meters plants and more than 300 employees, annual output is 3 million pcs and has 5 million pcs annual producing capacity.after several years development,we had built a great reputation in the market and got more and more customers' trust in the world.
We started from shaded pole motors at beginning, up to now,our product included of shaded pole motors,synchronous motors,stepping motors ,capacitor motors, BLDC motors, DC motors and compressors. Our product are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.

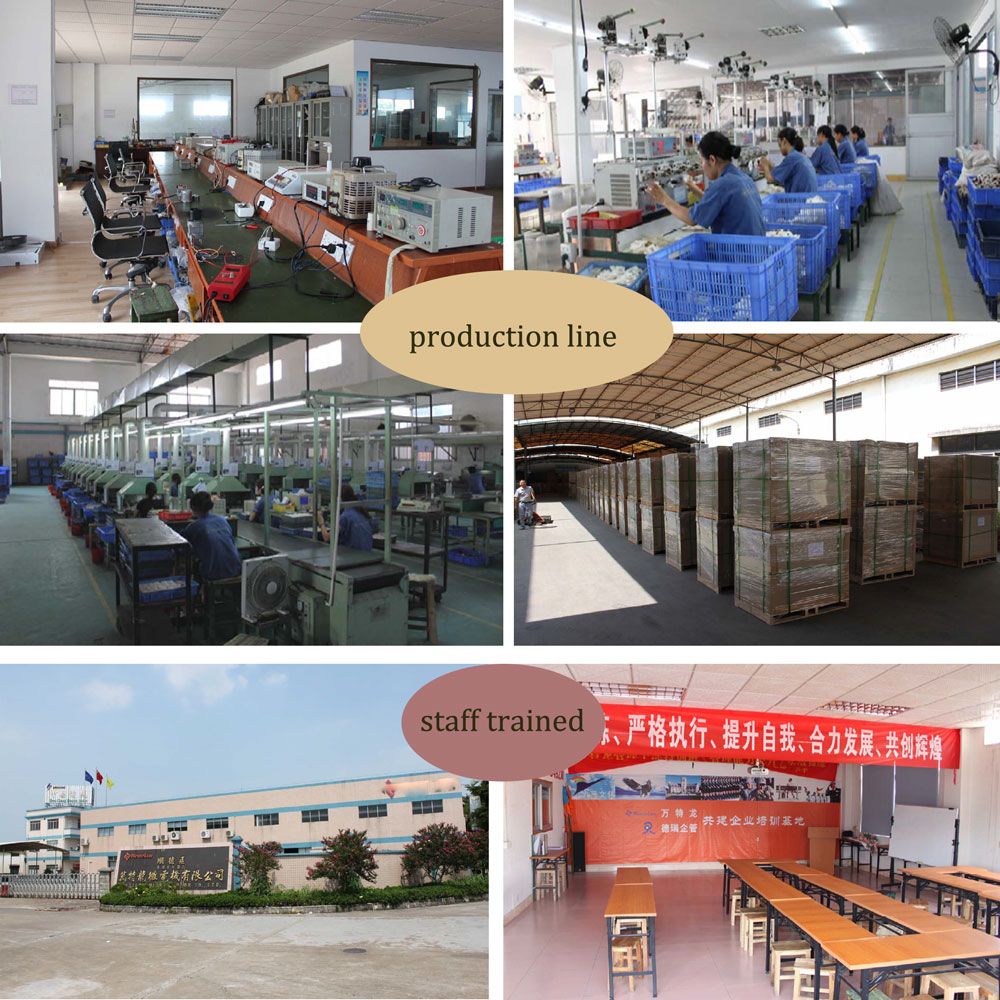

As a realiable quality guaranty,Ritscher has complete R&D departement,QC department,producing department,purchase department etc. has perfect producing equipment like Aluminum diecasting, Zinc diecasting, Sheet metal stamping, Plastic injection molding etc. also test/ detection device like multiplex temp measuring device, performance parameter inspection device, Phenol peptide solution pinhole tester,Anechoic room etc.
