Zhejiang Yixiong M&E Manufacturing Co., Ltd. >> YJ82 Variable Speed Electric Motors

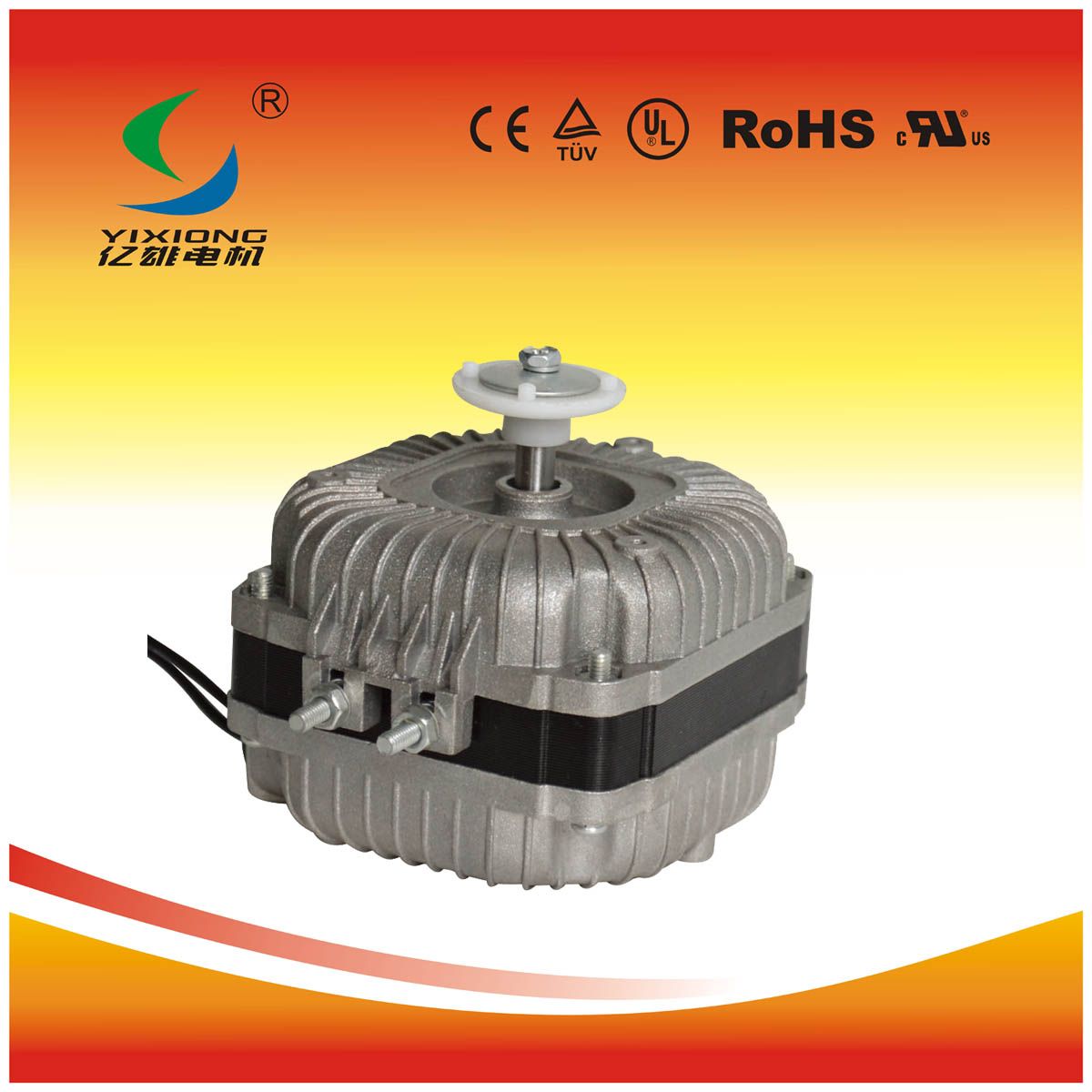

YJ82 Variable Speed Electric Motors

YJ82 Variable Speed Electric Motors
Price: US $ 3-3.5/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: YJ82
Motor Type: Shaded Pole Motor
Core Material: Sillicon Sheet
Winding Wire: Copper or Aluminum
Available Model: 5W, 7W, 10W, 16W
Number Of Stator: Single-Phase
Function: Driving
Application: Household Appliance
Starting Mode: Industion Start
Certification: Ce
Brand: Yixiong

Product Description

YJ82 Variable Speed Electric Motors Discription :

Supply voltage: 110-240V AC; 50-60Hz;  110/220V 50-60Hz
Suitable Shaft Dia.:6,7,8 mm,  Shaft length as your request
Stack size: 83 *83 mm,  thickness :13-25 mm;
Mounting size: M4 Threading,  disctance is17.9 mm,  or M3 threading.

Rotation from shaft extention : CW or CCW;
Lead wire: model and length are as your request
Bearing style:Sleeve bearing is available;
Insulation Class: E / B  /  F
Protection type: Temperature protection
Sound level:≤45 dB(A);

Life:3000 Hours Min;

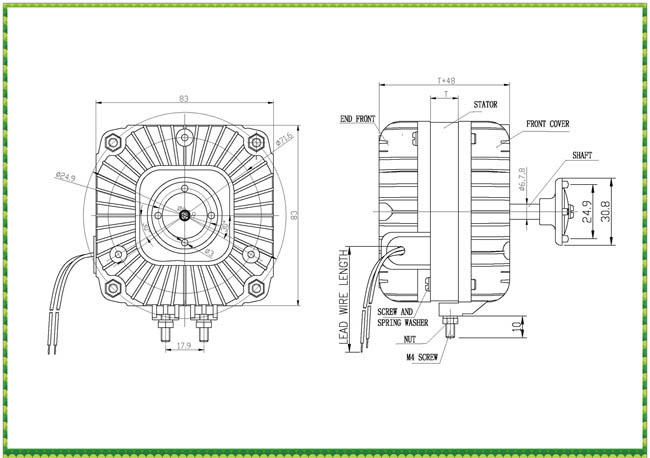

Drawing



ModelT in DrawingSupply VoltageOutput PowerSpeed
YJ82-13A13MM230V 50Hz5W1350RPM
YJ82-13B13MM120V 60Hz5W1550RPM
YJ82-19A19MM230V 50Hz10W1350RPM
YJ82-19B19MM120V 60Hz10W1550RPM
YJ82-25A25MM230V 50Hz16W1350RPM
YJ82-25B25MM120V 60Hz16W1550RPM


Motor Feature
1. Refrigerator, Ice chest, Condensing Plant, Fanners etc.,
2. It is safety and reliable, low noise, characteristics hard, good starting, long life, etc
3. It can be designed and produced as your request.

Certificate

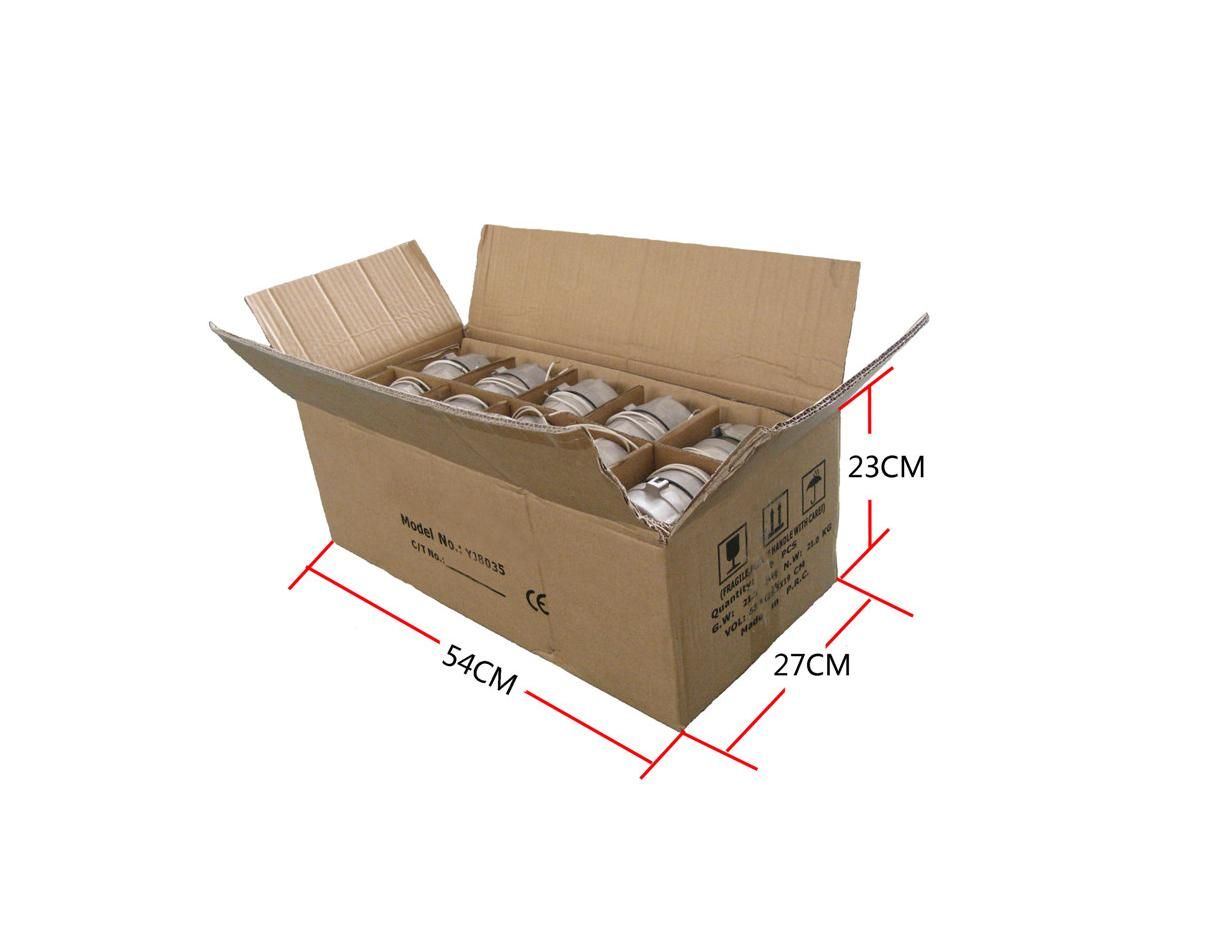

Package
1. FCL: FCL: Outter is double-layer corrugated paper carton, Inner is Plastic foam box.
2. LCL: Pallets with Carton

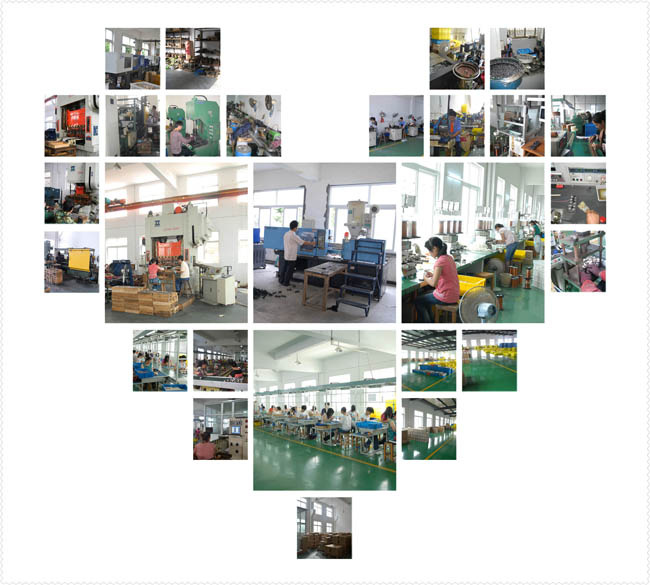

Production




Contact us



Welcome to visit our factory!
Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
