YJ84 AC Series Single Phase Range Hood Motor

YJ84 AC Series Single Phase Range Hood Motor
Price: US $ 2.8-5.5/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T
Prod Model: YJ84
Supply Voltage: 220-240V 50Hz 100-120Hz 60Hz
Core Material: Sillicon Sheet
Wire Material: Copper
Insulation Class: E/ F
Protection: Over-Heat Protection
Number Of Stator: Single-Phase
Function: Driving
Application: Household Appliance
Starting Mode: Induction Start
Certification: Ce
Brand: Yixiong

Product Description

YJ84  AC Series Single Phase Range Hood Motor Specification
Technical Specification

1. Stator Size : 84*67mm
2. Shaft Size : 5mm,6mm, length can be done by your request
3. Thickness of stator : 20, 22, 25, 28, 30, 38mm
4. Bearing : Sleeve bearing is available
5. Direction of rotation : CCW or CW
6. Axial clearance : Max 1.0
7. Voltage resistance : 1500V/0.5mA/min
8. Insulation resistance : Cold≥50MΩ, Hot≥20MΩ
9. Comply with Rohs Directive
10. Mainly products is approved by CE



ModelVoltageFrequencyCurrentPower   SpeedClass
YJ84-22110/220V AC50/60Hz 0.458A 45W 3speedsE/B/F
YJ84-25110/220V AC50/60Hz 0.503A 50W 3speedsE/B/F
YJ84-28110/220V AC50/60Hz 0.583A 55W 3speedsE/B/F
YJ84-30110/220V AC50/60Hz 0.612A 60W 3speedsE/B/F
YJ84-33110/220V AC50/60Hz 0.627A 68W 3speedsE/B/F



Application

1. It is used commonly Euro Range Hoods, Slim Range Hoods.Cooker hoods. etc
2. Safe and reliable, low noise, characteristics hard, good starting, long life, etc.
3. This Range hoods motorcan be designed and produced according to your requests.

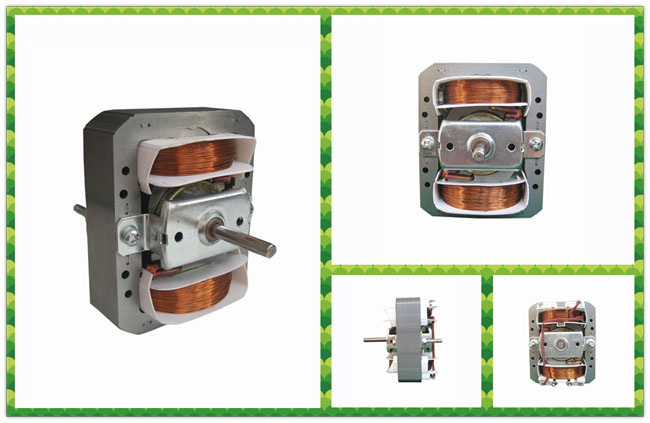

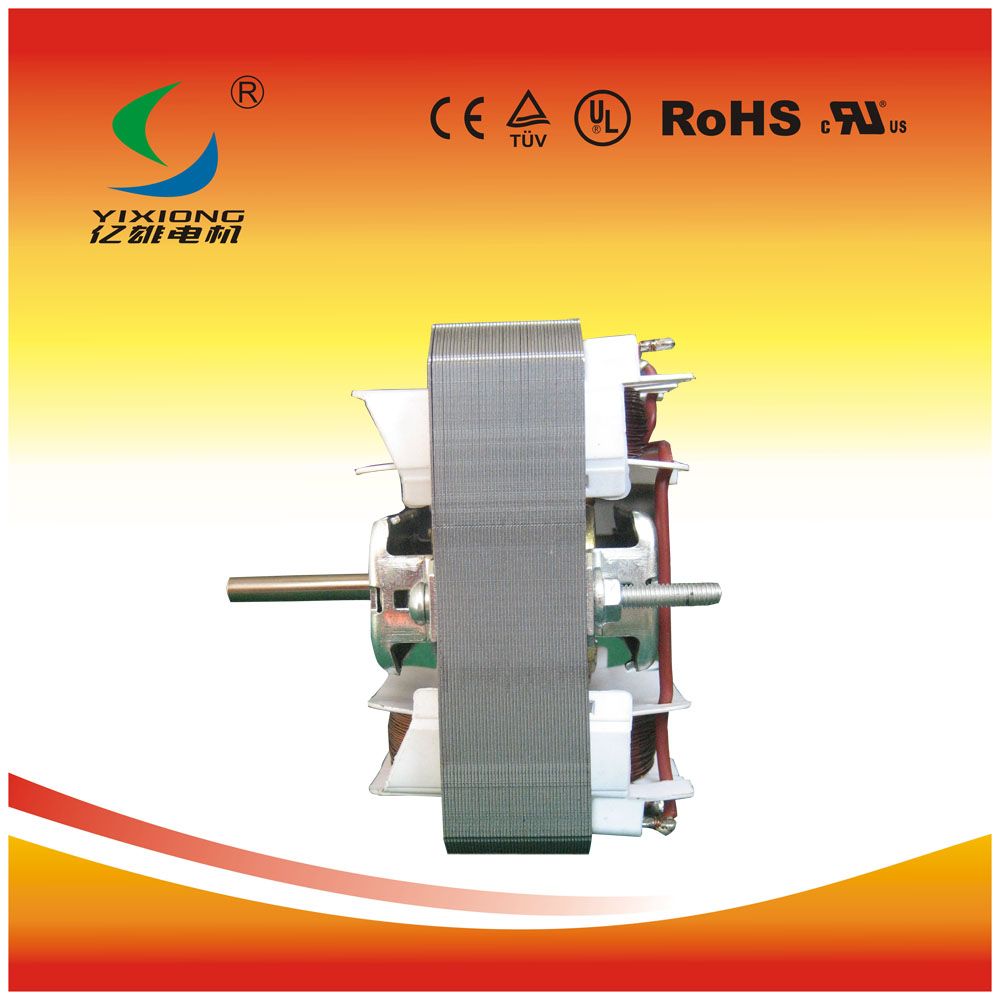

Range Hood Motor Detailed Picture

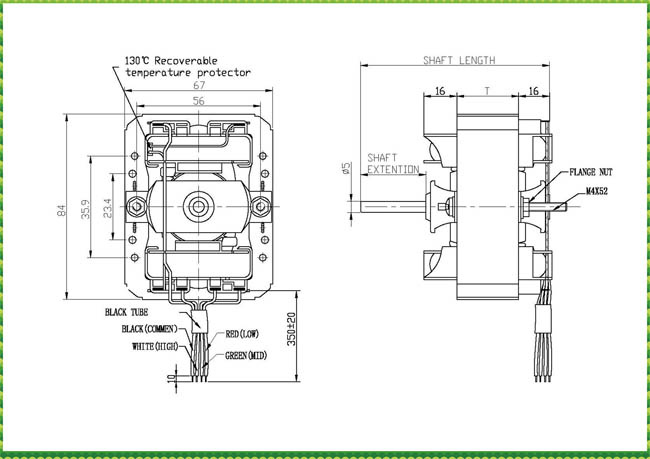

Range Hood Motor Drawing

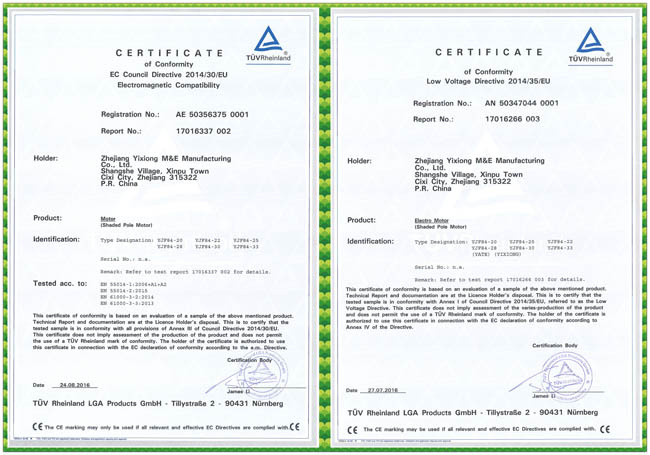

Range Hood Motor Certification

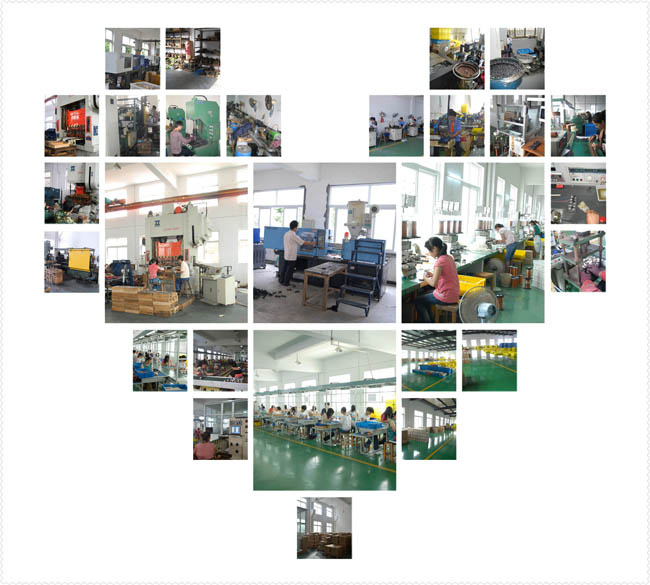

Range Hood Motor Production

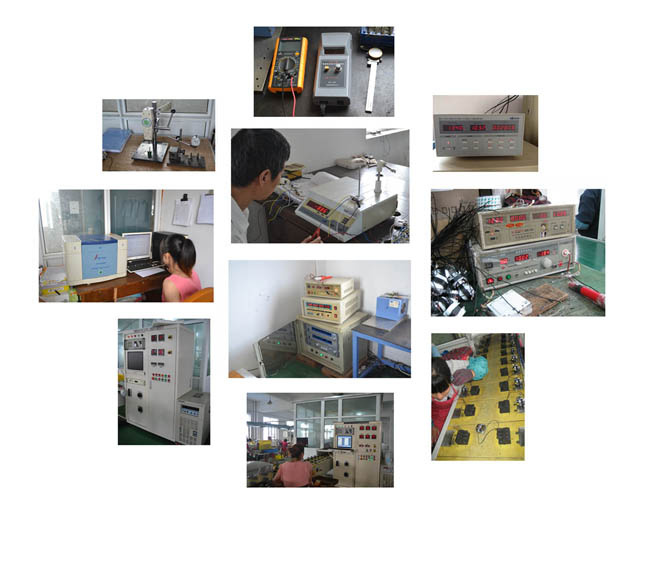

Range Hood Motor Inspection


Contact us






Welcome to visit our factory!
Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
