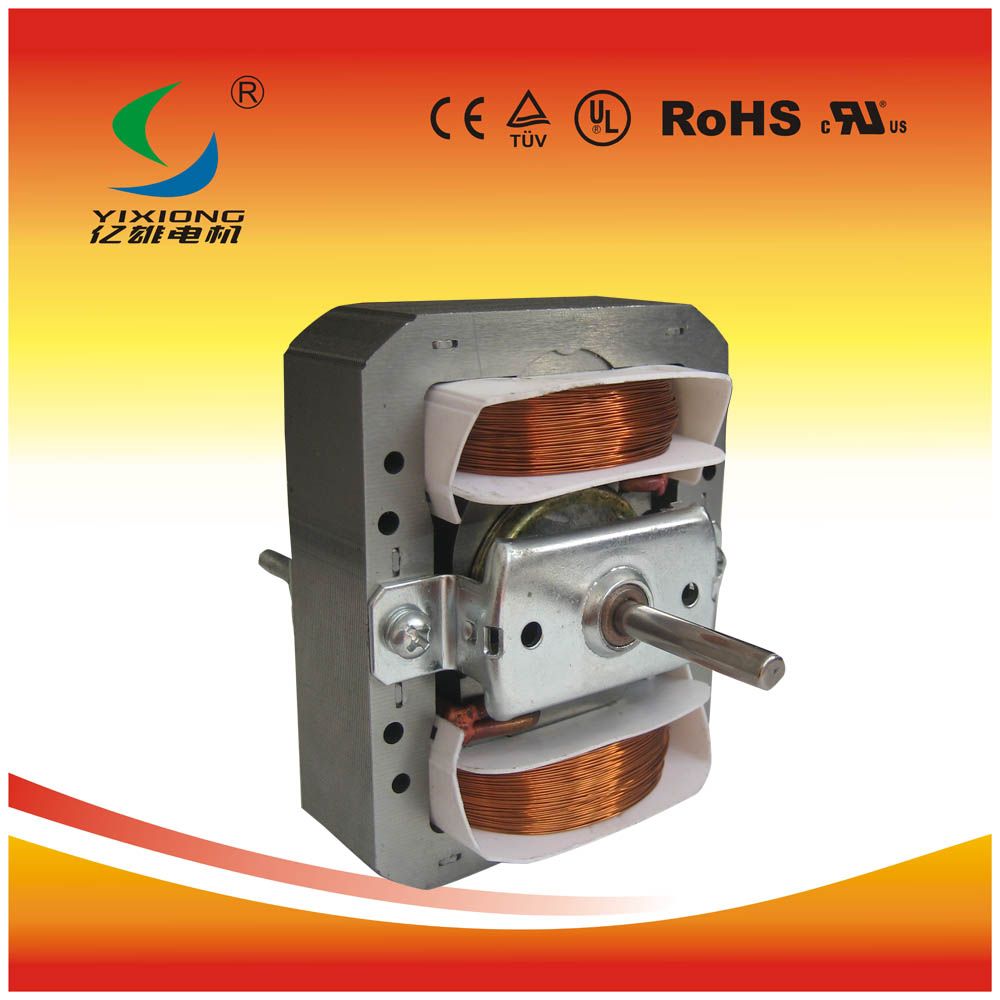

YJ84 Asynchronous Elecric Range Hood Fan Motor

Name: YJ84 Asynchronous Elecric Range Hood Fan Motor
Brand: all-electronics-online.com
SKU: 650273535
Availability: InStock
Rating: 4.5 (80 reviews)

Price:	US $ 2.8-5.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJ84
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Supply Voltage:	220-240V 50Hz 100-120Hz 60Hz
Core Material:	Sillicon Sheet
Wire Material:	Copper
Protection:	Over-Heat Protection
Application:	Household Appliances
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Open Type
Species:	Shaded Pole Motor
Starting Mode:	Induction Starting
Certification:	UL
Brand:	Yixiong

Product Description

YJ84 Asynchronous Elecric Range Hood Fan Motor Specification

1. Stator diameter: 84*67mm
2. Shaft diameter: 5mm,6mm, Length can be done by your request
3. Thickness of stator : 20,22,25,28,30,33,38mm
4. Bearing : Sleeve bearing is available
5. Direction of rotation : CCW or CW
6. Axial clearance : Max 1.0
7. Voltage resistance : 1500V /0.5mA / min
8. Insulation resistance : Cold≥50MΩ, Hot≥20MΩ
9. Comply with Rohs Directive
10. Mainly products is approved by CE

Model	S in drawing	Voltage	Power	Speed	Insulation Class
YJ8420	20	100-240V 50/60Hz	60W	1500RPM	E/B/F
YJ8422	22	100-240V 50/60Hz	70W	1450RPM	E/B/F
YJ8425	25	100-240V 50/60Hz	85W	1600RPM	E/B/F
YJ8428	28	100-240V 50/60Hz	90W	1200RPM	E/B/F
YJ8430	30	100-240V 50/60Hz	100W	1700RPM	E/B/F
YJ8433	33	100-240V 50/60Hz	130W	1600RPM	E/B/F
YJ8438	38	100-240V 50/60Hz	150W	1300RPM	E/B/F

Dryer Motor Application

1. It is used commonly Euro Range Hoods, Slim Range Hoods. etc
2. Safe and reliable, low noise, characteristics hard, good starting, long life, etc.
3. This Range hoods motorcan be designed and produced according to your requests.

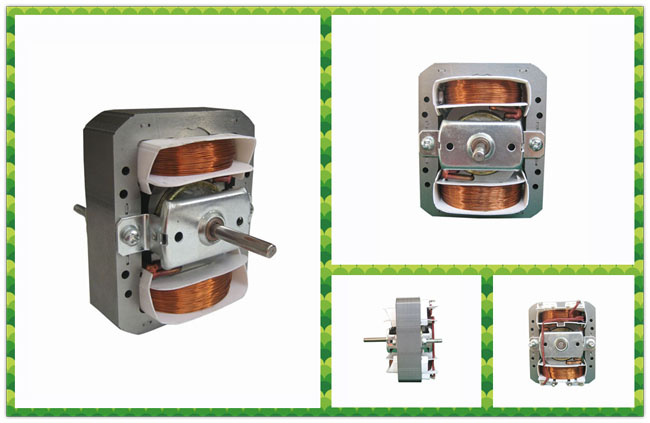

Dryer Motor Detailed Picture

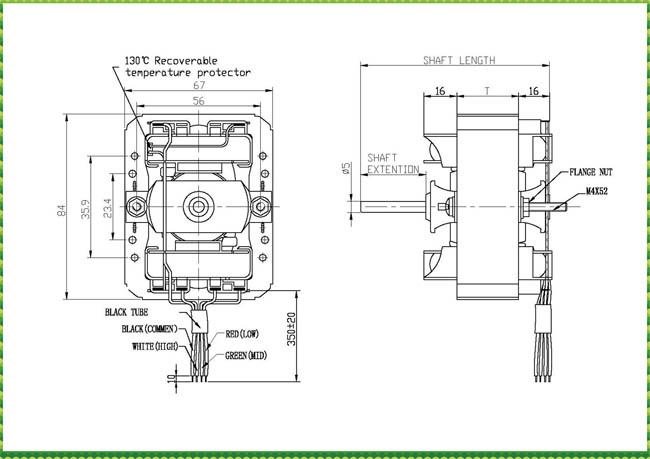

Dryer Motor Drawing

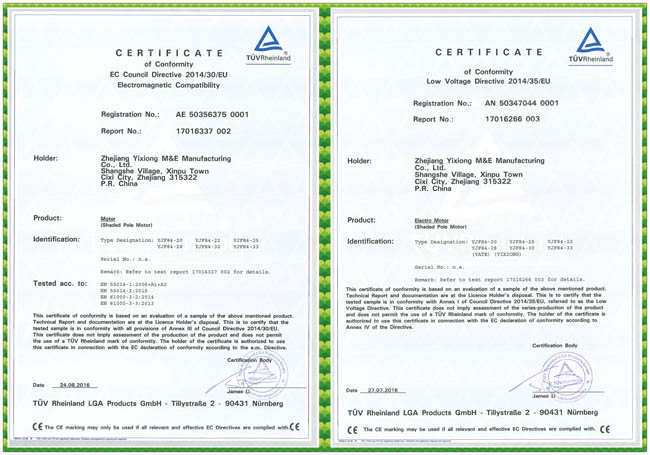

Dryer Motor Certification

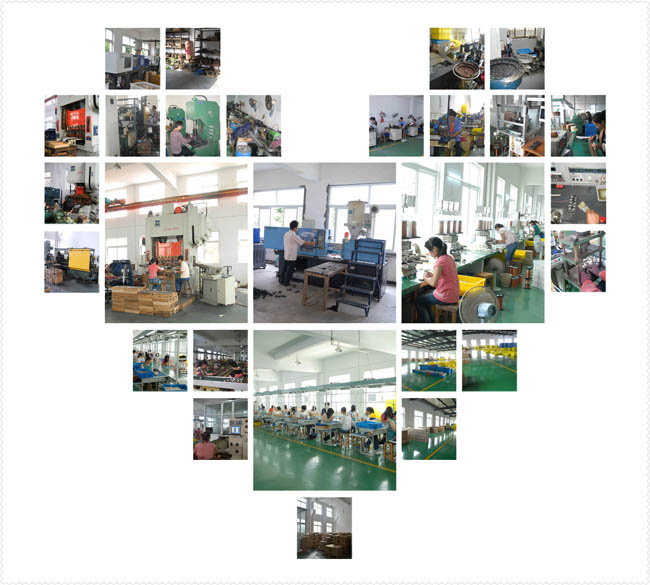

Dryer Motor Production

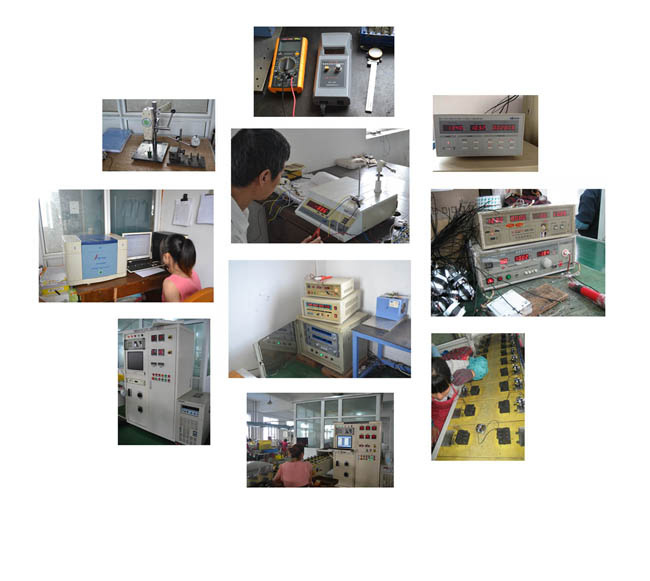

Dryer Motor Inspection

Contact us

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
