Zhejiang Yixiong M&E Manufacturing Co., Ltd. >> YJ84 Asynchronous Motor in Home Appliances

YJ84 Asynchronous Motor in Home Appliances

YJ84 Asynchronous Motor in Home Appliances
Price: US $ 2.8-5.5/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T
Prod Model: YJ84
Supply Voltage: 220-240V 50Hz 100-120Hz 60Hz
Core Material: Sillicon Sheet
Wire Material: Copper
Insulation Class: E/ F
Protection: Over-Heat Protection
Number Of Stator: Single-Phase
Function: Driving
Application: Household Appliance
Starting Mode: Induction Start
Certification: Ce
Brand: Yixiong

Product Description

YJ84  Asynchronous Motor in Home Appliances Specification
1.Stator diameter:84mm
2.Shaft diameter: 5mm
3.Shaft length: as your request
4.Lead wire or Terminal are both available
5.Number of pole:2 pole
6.Rotation: CW/CCW

Application
1.It is used commonly Euro Range Hoods,Slim Range Hoods.etc
2.Safe and reliable,low noise,characteristics hard,good starting,long life,etc.
3.This Range hoods motorcan be designed and produced according to your requests.
   Model       Voltage Frequency  Current Power    Speed Class
 YJ84-22110/220 VAC  50-60 Hz 0.458 A  45 W 3speeds E/B/F
 YJ84-25110/220 VAC  50-60 Hz 0.503A  50 W 3 speeds E/B/F
 YJ84-28110/220 VAC  50-60 Hz 0.583A  55 W 3speeds E/B/F
 YJ84-30110/220 VAC  50-60 Hz 0.612 A  60 W 3speeds E/B/F
 YJ84-33110/220 VAC  50-60 Hz 0.627 A  68 W 3speeds E/B/F


Application
1. It is used commonly Euro Range Hoods, Slim Range Hoods. etc
2. Safe and reliable, low noise, characteristics hard, good starting, long life, etc.
3. This Range hoods motorcan be designed and produced according to your requests.

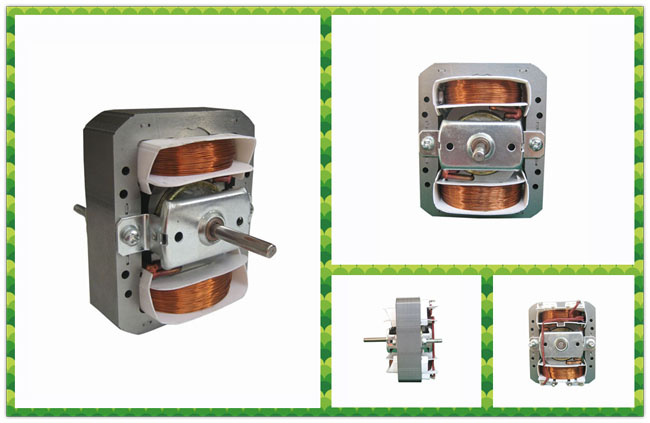

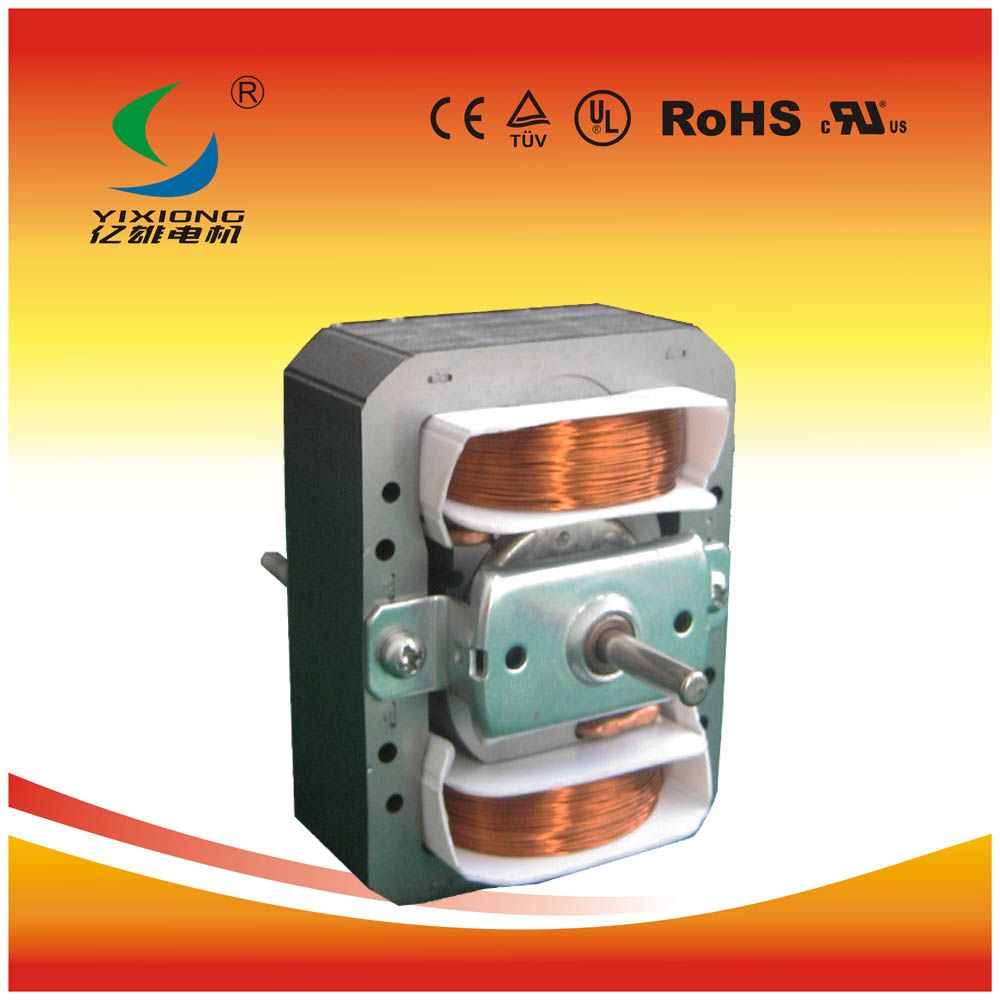

Dryer Motor Detailed Picture

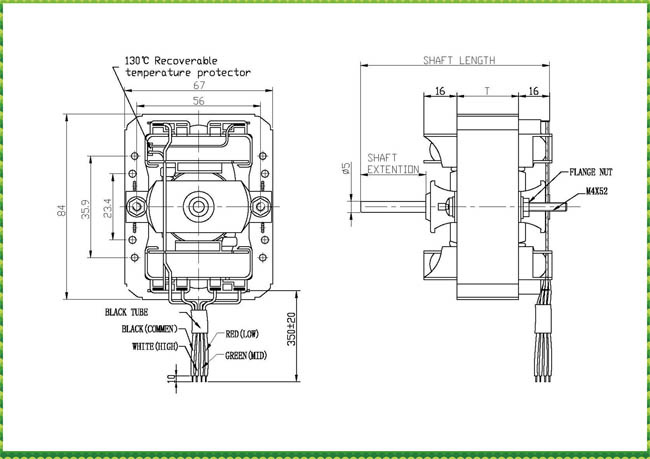

Dryer Motor Drawing


Dryer Motor Certification

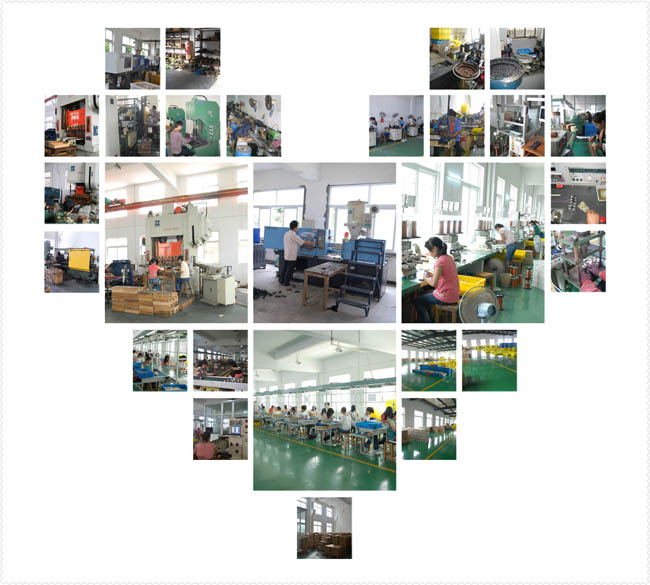

Dryer Motor Production

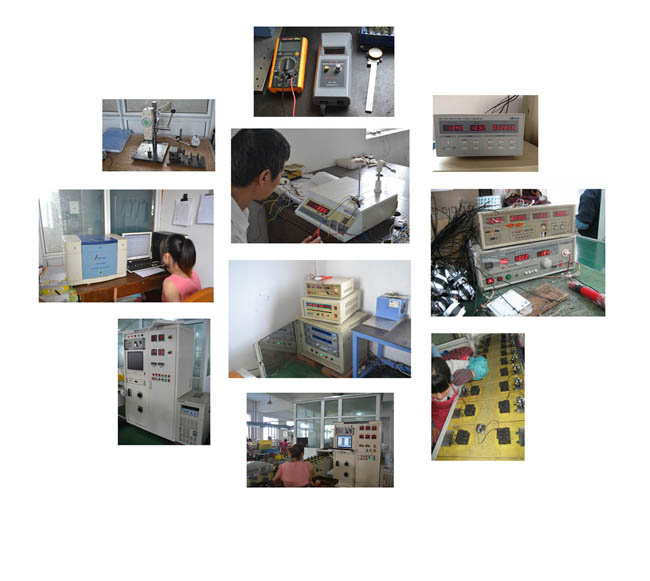

Dryer Motor Inspection


Contact us







Welome to visit our factory!


Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
