| Prod Model: |
YJV |
| Insulation: |
XLPE / PVC |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Model: |
VV |
| Brand: |
Sansen |

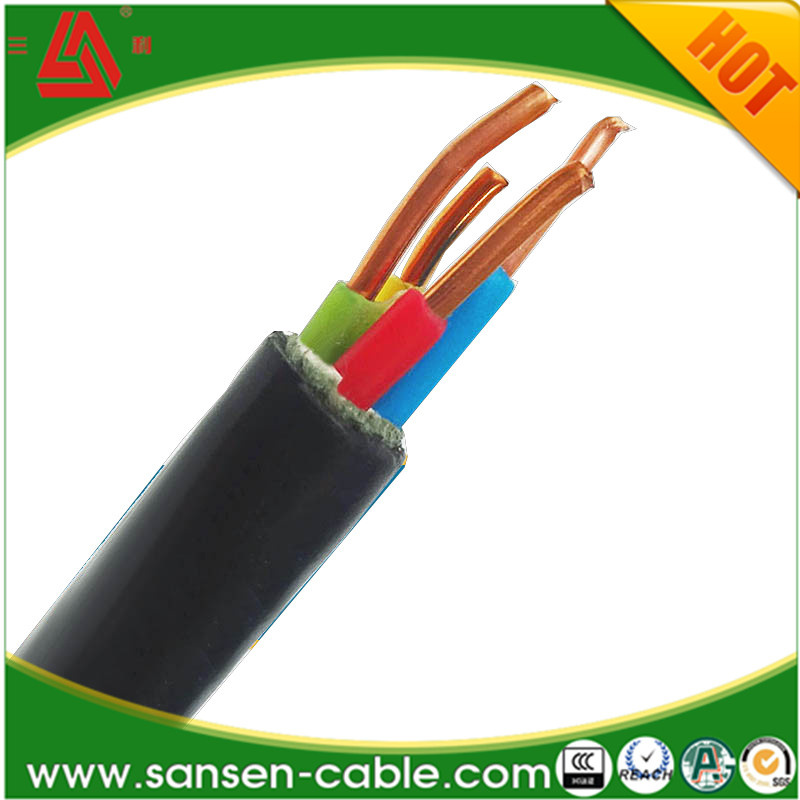

Product Description
SpecificationsXLPE Insulated, PVC/PE Sheath
IEC 60502, IEC 60228, IEC 60332, CE, KEMA
Armour, LSZH, Fire-resistant optional
Constructions
Conductor
Compact Stranded Copper Conductor, Class 2 as per IEC 60228
Circular solid Copper Conductor, Class 1 as per IEC 60228
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228
Conductor Screen
Semi-conductor (MV only)
Insulation
XLPE(Cross-linked polyethylene)
Insulation Screen
Semi-conductor (MV only)
Separate Screen
Copper Tape (MV must, LV optional)
Filler
PP Yarn, or Paper
Wrapping Tape
PP
Inner Covering
Extruded PVC (MV only)
Armour
Steel Wire, or Steel Tape, or Aluminium Tape optional
Overall Sheath
PVC or PE
Applications
Used for power transmission and distribution line with voltage rated at 35kV and below. Compared with PVC Insulated Power Cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS, DIN and ICEA upon request
Technical data
Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
Maximum Conductor Temperature: Under normal (90° C), emergency (130° C) or short circuit no more than 5 s (250° C) conditions.
Min. Ambient Temp. 0° C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 X cable O. D for single-core non-armoured cables
15 X cable O. D for single-core armoured cables
15 X cable O. D for multi-core non-armoured cables
12 X cable O. D for multi-core armoured cables
Certificates
CE, RoHS, CCC, KEMA and more others at request
| Type | Designation | Application |
| YJV | Copper conductor, XLPE insulated and PVC sheathed power cable. | For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces, Single core cable in magnetic duct is not permissible. |
| YJLV | Aluminum conductor, XLPE insulated and PVC sheathed power cable. |
| YJY | Copper conductor, XLPE insulated and PE sheathed power cable. |
| YJLY | Aluminum conductor, XLPE insulated and PE sheathed power cable. |
| YJV22 | Copper conductor, XLPE insulated, steel tape armored and PVC sheathed power cable. | For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
| YJLV22 | Aluminum conductor, XLPE insulated, steel tape armored and PVC sheathed power cable. |
| YJV23 | Copper conductor, XLPE insulated, steel tape armored and PE sheathed power cable. | For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force |
| YJLV23 | Aluminum conductor, XLPE insulated, steel tape armored and PE sheathed power cable. |
| YJV32 | Copper conductor, XLPE insulated, steel wire armored and PVC sheathed power cable. | For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force. |
| YJLV32 | Aluminum conductor, XLPE insulated, steel wire armored and PVC sheathed power cable. |
| YJV33 | Copper conductor, XLPE insulated, steel wire armored and PE sheathed power cable. |
| YJLV33 | Aluminum conductor, XLPE insulated, steel wire armored and PE sheathed power cable. |
FAQ:Q1. What kind of products can your company supply? A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect. Q2. What's your MOQ?A: The MOQ of long meter cable is 50 km, or we can negociate. Q3. What's your delivery time? A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order. Q4. What are your payment terms?A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you. Q5. What's your trade term ? A: We can accept FOB, CIF, EXW term. Q6. What's your conventional packing ? A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand. Q7. Can your factory customize cables based on clients' samples or data sheet ? A: Yes, we can. Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

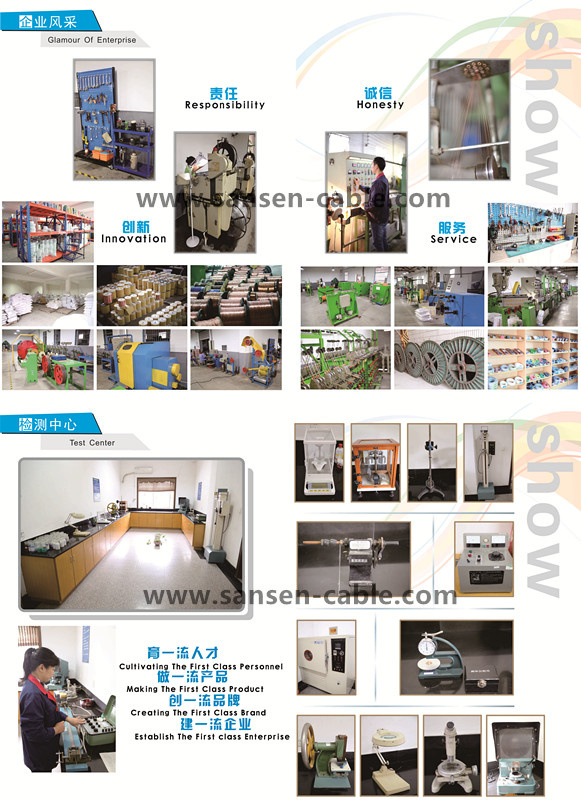

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.
At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.
We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
