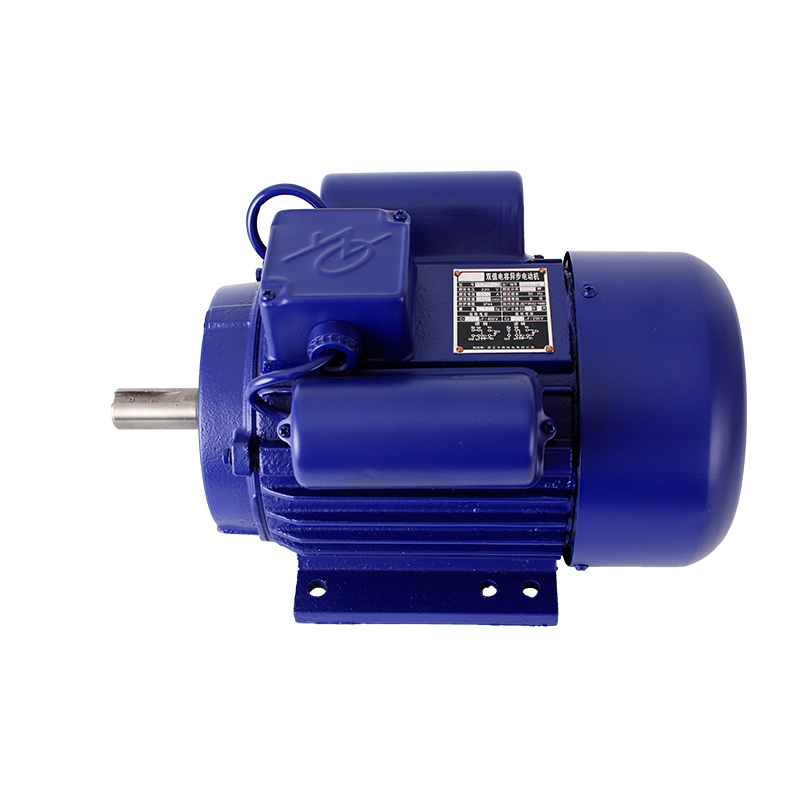

Yl 0.37kw Single Phase Asynchronous Motor

Name: Yl 0.37kw Single Phase Asynchronous Motor
Brand: all-electronics-online.com
SKU: 621266444
Availability: InStock
Rating: 4.9 (130 reviews)

Price:	US $ 30.8-35/Box
Min Order:	1/Box
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YL
Material:	Cast Iron&Aluminum Body
Stator Material:	195&800 Stator
Application:	Agriculture
Operating Speed:	High Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Species:	YL single phase
Number Of Poles:	2-4

Product Description

Detailed Info
Overview:

YL series motor is totally enclosed fan-cooled two-value capacitor asynchronous motor, it has a simple structure, safe and reliable operation, easy maintenance and excellent technical and economic indicators and so on. YL series motors for general use motors suitable for driving a variety of small machine tools, transport machinery, agricultural machinery, food machinery.

Working conditions:

YL series motor at ambient temperature does not exceed 40 , not more than 1000 meters above sea conditions, continuous operation at rated power.

Rated voltage: 220V

Rated frequency: 50Hz

Working mode: S1

Insulation Class: E or B (E OR B)

Protection: IP44

Cooling: IC 411

Zhejiang Fanglei Machine & Electric Co., Ltd. is located in Zhejiang, East China Sea in Taizhou. Ointly established the production of small and medium-sized production base for kinds of electric motors. The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor

History: 25 years experience of manufacturing stator, motor, water pumps;

Scale: Covers working area of 6, 000 square meters. Have more than 200 employees;

Technology: A group of professional technical engineers and a strong R&D team;

Management: Scientific management and strict quality control system;

Equipments: Advanced automatic production line and test equipment;

Innovation: Continuously diversify products range to satisfy customers'needs, Production capacity: 30, 000 PCS/month;

Marketing network: Europe, Asia, Africa, America, etc;

Certificate: CE, GS, RoHS, IS09001: 2008,

The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system
