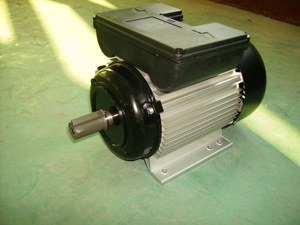

Yl Single-Phase Capacitor Start Induction Electrical Motor (YL90L-2)

Prod Model:	Single phase (YL90L-2)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hs:	8501400000
Number Of Stator:	Single-Phase
Function:	Driving

Product Description

YL Series Single-Phase HEAVY-DUTY Induction motors2. Output: 1/2HP~5HP3. Norms: IMB35 IMB5, IMB34. Voltage: 220V
YL Series motors is desiged and manufactured in according with national standard,
Newly developedby our company with low noise, compact construction, light weight. Easy maintenance etc.
These motors are widely used on air compressors, pumps, fans, refrigerator, medical instruments, small-suze machines etc, especially for occasion where only single-phase power supply is available.
Operating conditions:
Ambient temperature: -15° C≤ ≤ 40° C
Altitude: Not exceeding 1000meters
Rated voltage: 220V± 50%
Rated frequency: 50Hz
Duty/Rating: Continuous running
Insulation class: Class B/F
Protection class: IP44/IP54
Cooling method: IC0141

Specifications
1, outstanding performance of starting2, operation, low noise3, compact dimensions4, light weight, easy maintenance

Yl Single-Phase Capacitor Start Induction Motor (YL90L-2)

YL series two value capacitor asynchronous motors is totally enclosed and fan-cooled, squirrel cage, asynchronous motor, newly designed in conformity with the relevant requirements of IEC standards, which has out standing goodness, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc, widely used in many places except where has combustible, explosive or corrosive gas and special requirements, such as for machine tools, pimps, fans transportation machinery, mixer,
Agricultural machinery and food machines, etc.

If u are interested in those kinds of motor, pls feel free to contact with me.
