Ym20 7 Pin Waterproof Power Connector with Stable Performance with Corrosion Resistance

Prod Model:	YM-20-C07PE-01-001, YM20-20-J07SX-01-001
Contact Diameter × Number:	Φ2.0×7
Rated Current:	12A
Operating Voltage (AC.V.RMS):	500V
Contact Resistance:	<2.5mΩ
Withstanding Voltage(AC.V)1 Minute:	2500V
Protection Level:	IP65/68
Assembly Wire:	Solder
Connecting Mode:	1/4 Bayonet Connect
Flammability Rating:	UL94-V0
Copper Needles:	Copper Alloy(Gold-Plated)
Application:	LED Display, DMX Lighting
Gender:	Male and Female

Product Description

Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727075007_78750.jpg

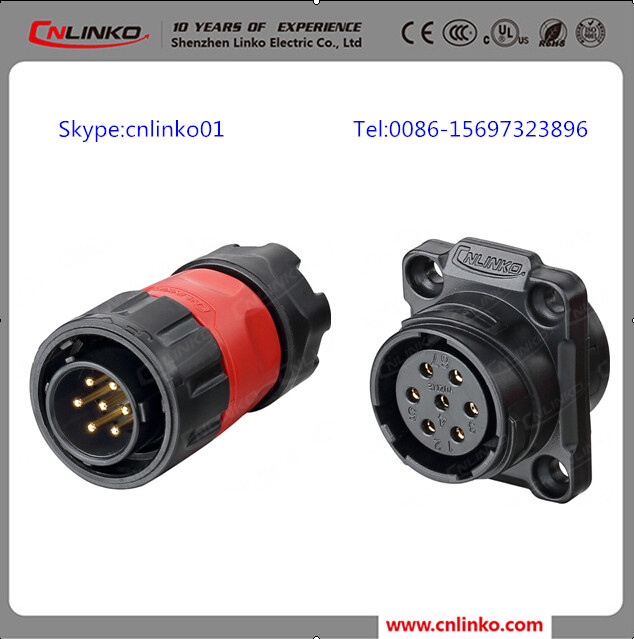

YM20 7Pin Waterproof Power and Data connector with Stable Performance

YM-20 Series connector is widely used in variety of challenging environments due to its high-precision,high-quality automatic insertion ,self-locking devices and waterproof, such as :LED screen industry, audio-visual equipment,medical equipment,industrial control ,test and measurement equipment,AV systems,broadcast television and communications industry and other fields.

1.Multi-pins design for varies industrial equipment (2, 3, 4, 5 pin).
2.Plug with PBT shell and gold-plated contact.
3.High performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
4.Stable electrical performance,fireproof, anti-pressure, anti-explosion and anti-corrosion.
5.1/4 quick bayonet connecting,simple operation and easy installation.
6.Waterproof level: IP65/IP67.
7.Rated current: 20A/12A/5A rms.
8.Certification: UL,CE,CCC,ISO9001,ROHS.

Cable specification: 1.0mm²~1.5mm²/18~16 AWG
Diameter range: Φ7mm~Φ9mm
Contact diameter × number: Φ2.0×7
Rated Current: 12A
Operating voltage (AC.V.rms): 500V
Contact resistance: <2.5mΩ
Temperature rise: 12A contact temperature below 30ºC, 15 Acontact temperature below 40ºC, 18A contact temperature below 50ºC.


Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP65/68	Durability:	>500Times
Working temperature:	-40ºC~80ºC	Connecting mode:	1/4 bayonet connect
Assembly wire:	solder	Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0

1. 10pcs to a box, 24 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 3-10 working days after received the payment
3. Delivery: by DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner
