Ym20 IP68 9pin Waterproof Power and Signal Connector

Prod Model:	YM-20-C09PE-01-001, YM-20-J09SX-01-001
Copper Needles:	Φ1.0×9
Rated Current:	5A
Operating Voltage (AC.V.RMS):	400V
Withstanding Voltage(AC.V)1 Minute:	2500V
Protection Level:	IP65/68
Assembly Wire:	Solder
Waterproof Circle:	Silica Gel
Connecting Mode:	1/4 Bayonet Connect
Flammability Rating:	UL94-V0
Housing,The Insulating Parts:	High Performance Engineering Plastics

Product Description

Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727075007_78750.jpg

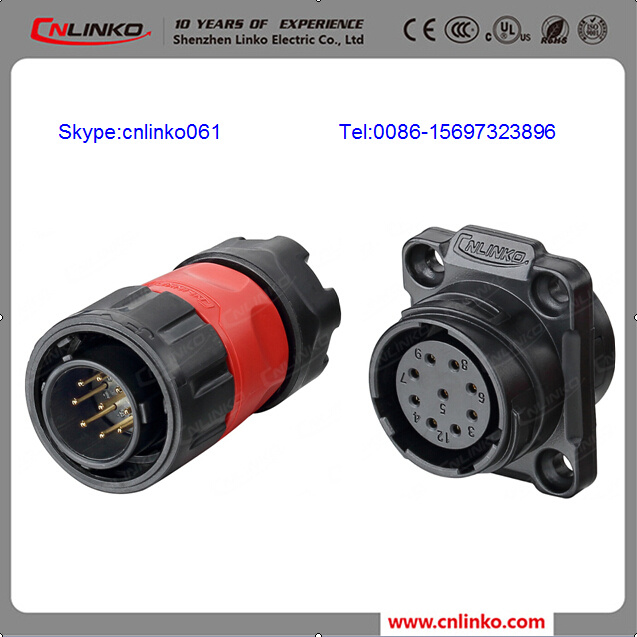

YM20 IP68 9Pin Waterproof Power and Signal Connector

YM-20 Series connector is widely used in variety of challenging environments due to its high-precision,high-quality automatic insertion ,self-locking devices and waterproof, such as :LED screen industry, audio-visual equipment,medical equipment,industrial control ,test and measurement equipment,AV systems,broadcast television and communications industry and other fields.

1.Multi-pins design for varies industrial equipment (2, 3, 4, 5 pin).
2.Plug with PBT shell and gold-plated contact.
3.High performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
4.Stable electrical performance,fireproof, anti-pressure, anti-explosion and anti-corrosion.
5.1/4 quick bayonet connecting,simple operation and easy installation.
6.Waterproof level: IP65/IP67.
7.Rated current: 20A/12A/5A rms.
8.Certification: UL,CE,CCC,ISO9001,ROHS.

Cable specification: 0.15mm²~0.2mm²/26-24 AWG
Diameter range: Φ5.5mm~Φ7mm
Contact diameter × number: Φ1.0×9
Rated Current: 5A
Operating voltage (AC.V.rms): 400V
Contact resistance: <5mΩ
Temperature rise: /


Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP65/68	Durability:	>500Times
Working temperature:	-40ºC~80ºC	Connecting mode:	1/4 bayonet connect
Assembly wire:	solder	Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0

Packaging & Shipping

Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 3-5 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.

Our Services

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
Oversea's department
Tel:0086-15697323896
