Yp-20 4pin Waterproof Power Connector for LED Display and LED Lighting

Prod Model:	YP-20-C04PE-01-001, LP-20-J04SX-01-001
Contact Diameter × Number:	Φ2.7×4
Rated Current:	20A
Operating Voltage (AC.V.RMS):	500V
Contact Resistance:	<1mΩ
Withstanding Voltage(AC.V)1 Minute:	2500V
Protection Level:	IP67
Assembly Wire:	Solder
Hardware:	Zinc Alloy(Pearl Hard Chromium)
Durability:	≥500 Times
Connecting Mode:	Plug/Unplug
Application:	LED Display, Lighting Equipment
Gender:	Male and Female

Product Description

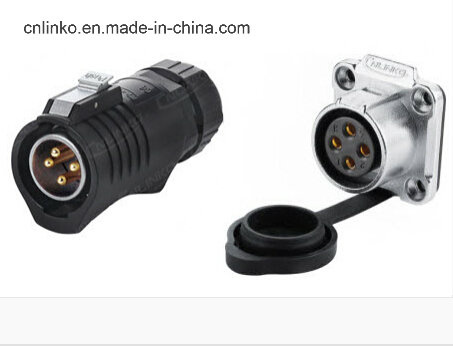

Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727073021_61584.jpg

YP Series is the first choice for user who in the file LED display and lighting equipment, Due to snap quickly plug/unplug, connection securety, convenient and easy to operate, high safety performance and with multi-core industrial use to meet the need.

1.Multi-pins(2/3/4/5/7/9/12 PINS) for power and signal,in line with all kinds of industrial demand.
2.Zinc shell and other inner components against high frequency noise and electromagnetic interference.
3.Gold-plated contacts. High electrical conductivity.
4.PBT and zinc shell, high performance of corrosion resistance and stable,compression, anti-explosion and anti-deformation.
5.Unique CNLINKO clip design for fastening
6.4 holes for installation,which make sure fixed stable
8.Rated current: 20A/12A/5A rms.
9.Protection level: IP65/IP67.

Cable specification: 2.5mm2~4mm2/14~12 AWG
Diameter range: Φ8mm~Φ12mm
Contact diameter × number: Φ2.7×4
Rated Current: 20A
Operating voltage (AC.V.rms): 500V
Contact resistance: <1mΩ
Temperature rise: 20A contact temperature below 30oC, 25 Acontact temperature below 40oC, 30A contact temperature below 50oC.


Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP65/IP67	Durability:	≥500 times
Working temperature:	-40oC~80oC	Connecting mode:	plug/unplug
Assembly wire:	solder	Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0
