| Prod Model: |
YR315L1-4 |
| Model Number: |
Yr315L1-4 |
| Output Power: |
132kw |
| AC Voltage: |
220V-760V |
| Insulation Class: |
B & F |
| Protection Class: |
IP54/IP55 |
| Ambient Temperature: |
-15 Degree to 40 Degree |
| Baseline Work System: |
S3 |
| Cooling Methods: |
IC411 |
| Altitude: |
Not Exceeding 1000m |
| Efficiency: |
Ie3 |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Protection Type |
| Starting Mode: |
y-δ Starting |
| Species: |
Yr |
| Brand: |
Anlian |
Product Description

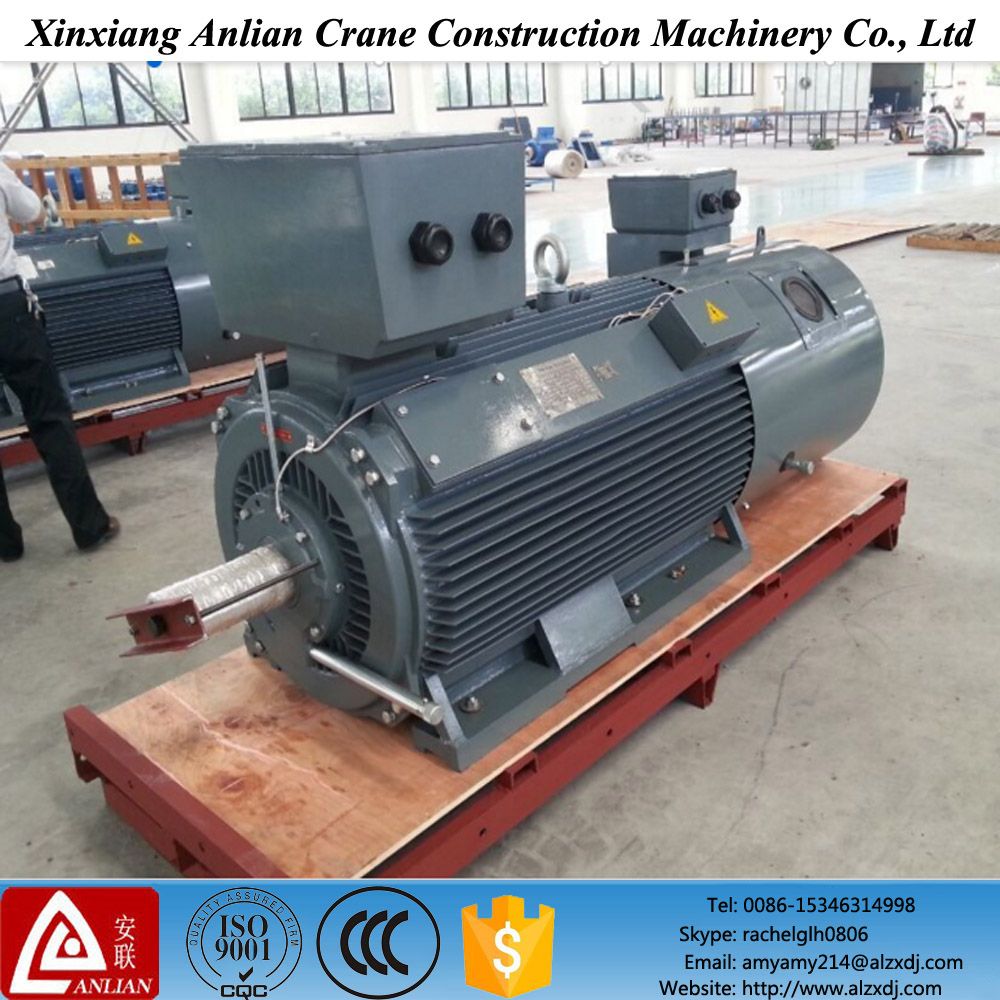

YR series wound rotor Slip Ring Induction Motor
Brief Introduction:YR Slip Ring Electric Induction Motor 132kw are applicable to ventilator, water pump, motor generator set and other general machinery. The rated voltage of this series of motors is 6000V/10000V, rated frequency is 50H and rated power factor is 0.9(leading). This series of motors have high operating efficiency, good material, perfect manufacture, stable performance and revolution does not change with load variation.
As for technical requirement of this series of motors, in addition to the specification of special technical specification of the product, other requirements comply with China National Standard GB755and IEC standard.
The mechanical dimension and tolerance for each part of this series of motors comply with China National standard GB1889-1804 and ISO standard.
The protection grade for case of this series of motors is IP00,IP20,IP21,IP23 and IP44 in accordance with GB/T4942.1 and IEC 34-5
The way of cooling for this series of motors is IC401,IC27,IC37,IC81W and IC91 in accordance with standard of GB/T1993 and IEC60034-6.
The basic installation mode for this series of motors complies with the specification of GB997 and IEC60034-7In case o needing other protection grade and way of cooling, negotiation can be made separately.
The voltage of synchronous motor of our company is: low voltage at 380V, 660V, high voltage at 6000V and 10000V, pole number is from 6 to 36 and the range of power is 200kW-1800kW. Each set of motor has been subjected to strict electrical inspection and complete set test before delivery so to assure each performance index.
Operating Conditions:
Ambient temperature:-5ºC < θ <40ºC
Altitude:not exceeding 1000m
Rated voltage:380V or any voltage between 220-760v
Rated frequency:50Hz,60Hz
Protection ciass:IP55
Insulation class:ClassF the temperature rise of the stator winding is examined at 80k
Cooling method:IC 411
Technical Data
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR |
| Type:YR315L1-4 | Output:132kW | Voltage:380V |
Speed:1490rpm | Current:262A | Frequency:50Hz |
Efficiency:94.8% | Power Factor:0.89 | Protection:IP55 |
Main performance parameters | Rotor Voltage :479V | km/h | 5.9/4.0 |
Travel speed (max. & min.) | Rotor Current:236A | <=90dB(A) |
Coolings:IC411 | Weiht:3350kg | Duty:S1 |
Accessories | 6PT100 in windings | 2PT100 in bearings | 2xSpace Heater |

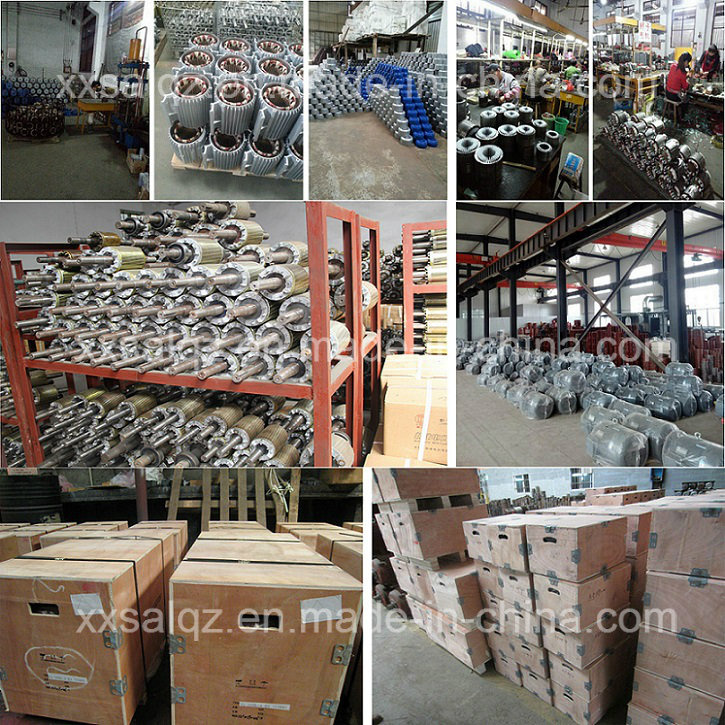

Workshop & Packaging
An Overview of Company
Xinxiang Anlian Crane Construction Machinery Co., Ltd., the main business: electric hoist, electric motor, electric winch, crane and crane accessories, Which widely used in various fields of materials handling, such as Machinery Manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydro-power, road and rail, port logistics, shipbuilding and so on. Founded in 1993, after years of development, as a whole of development, design, manufacture, sale, installation and service, it has become the equipment manufacturing enterprises. Currently has a registered capital of 10 million Yuan, more than 200 employees, 20 engineers and technicians, covers an area of 24,000 square meters, with all kinds of production equipment 90 (sets).
You may want to know
1: What is our factory product range?
A:We are specialize in crane, electric motors, wire rope hoists, electric winches and concrete vibrators, etc. for many years.
Q2:How about sample policy?
A:Welcome sample order. Please inform your detailed sample requirement, such as the quantity, the capacity, the chain, the lift and so on. If we have the sample in stock , the ship will be quicker. If we don't have stock, please understand to wait for the produce. Express fee is charged by the shipping company. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
Q3: How to order?
A: Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice for your order. We need to know the following information for your order:
1)About product: Quantity, Specification (such as lifting weight and height, material, color and packing requirement and so on).
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.
Q4: What advantages we have?
A: 1) One to one service guarantees the best purchasing experience for you.
2) Strong production capacity and professional workmen guarantee you the short delivery.
3) Strict delivery inspection guarantees the high quality products.
