Guangdong Lingyi Industrial Technology Co., Ltd. >> Yrkk Heavy Duty High Voltage Slip Ring Asynchronous Three Phase Induction Motor for Ball Rolling Mill

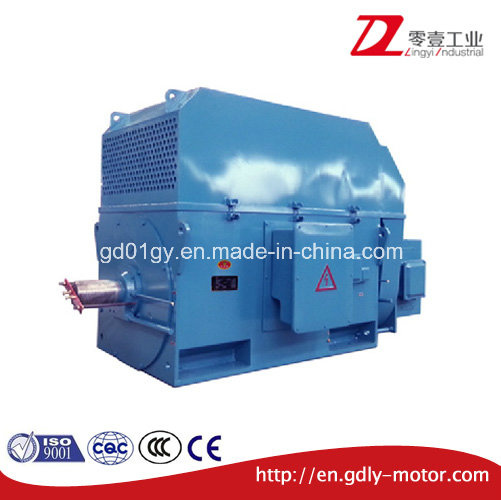

Yrkk Heavy Duty High Voltage Slip Ring Asynchronous Three Phase Induction Motor for Ball Rolling Mill

Yrkk Heavy Duty High Voltage Slip Ring Asynchronous Three Phase Induction Motor for Ball Rolling Mill
Price: US $ 14000-200000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile
Prod Model: YRKK450-4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output: 400kw~5600kw
Rated Voltage: 3kv, 6kv, 10V
Frame Size: 710~800
Pole: 4~12
Application: Industrial
Operating Speed: Constant Speed
Number Of Stator: Three-Phase
Rotor Structure: Winding Type
Casing Protection: Protection Type
Starting Mode: Soft Starter
Species: Yr Rotor Motor
Certification: Ce
Brand: Ly

Product Description

Specifications

Rated Power400kw~5600kw
Rated Voltage3kV, 6kV, 10V
Frame Size710~800
Pole4~12
Protection ClassYR series: IP23
YRKS, YRKK series: IP54, IP55
Cooling MethodYR series: IC01
YRKS series: IC81W
YRKK series: IC611 or IC616

Structural characteristics

1/. Box-type construction, which made up of steel plate welded.

2/. Can be observed its interior after removing the cooler or protective cover, and also easy to be installed and maintained.

3/. The rotor is wound rotor type, with slip ring structure

4/. The stator with insulation class F, made by VPI process, ensure the electric motor own the reliability of insulation, moisture-proof and shock resistance.

5/. Stator and bearings are fitted with the pt100 temperature measurement components.

6/. The motor bearings equiped with non-stop oiling and oil discharge device, improving the ability of itself protection and operation efficiency.

7/. When the power is more than 2000kW, according to the requirement of customer, another terminal box can be installed to pick up the neutral point of winding.

Application

This electric motor can be applied to the requirements as follows:
the lager starting torque,
power capacity is not enough to start a squirrel cage motor,
long start time or start more frequently.Adjust speed in a small range.

Such as used in steel, mines, mechanical industries, blower, compressor, transportation, building materials industry, etc field

Plant Photo


Guangdong Lingyi Industrial Technology Co., Ltd set up since 1997, with 20 years development, we become one of the best companies in the industry for mechanical and electrical products system integration, logistics service and investment. The company has set up 21 subsidiaries located in southern, central, eastern and northern China, .

The products categories include:

1, Transmission Products: High and low voltage electric motors, geared motors, gear boxes, bearings, inverter and complete electrical cabinets

2, Automation Products: Automation systems, motion control, low voltage control products and systems, sensor and communication products,

3, Power distribution Products: Low-voltage power distribution products, medium voltage circuit breaker, intelligent building system and equipment.

4, Machinery components.

Count on our 20 years industry experiences. Guangdong Lingyi Industrial Technology Co., Ltd give you one-stop industrial products sourcing, procurement, system integration and services, satisfy your different needs in the industry.

We are looking forward to cooperating with you.
