| Prod Model: |
YS(AO2/JW) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size Range: |
H56-71 |
| Rated Power: |
0.09~0.75kw |
| Rated Voltage: |
380V |
| Frequency: |
50Hz;60Hz |
| Protection Class: |
IP44;IP54;IP56 |
| Insulation Class: |
B;F;H |
| Ambient Temperature: |
-20~+40 °c |
| Altitude: |
≤1000m |
| Application: |
Universal |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Number Of Poles: |
2, 4 |
| Certification: |
Ce |
| Brand: |
Hongma |
Product Description
Product Description

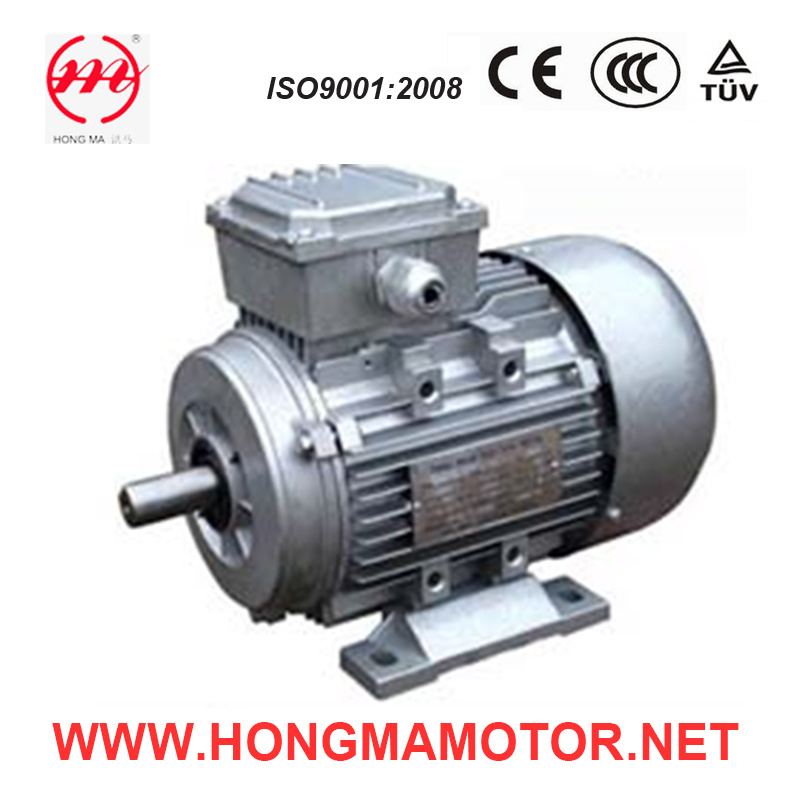

YS(AO2/JW) Series motor is of high efficiency, energy saving, good performance, small vibration, low noise, long life, high reliability and easy maintenance. Its mounting dimension and power totally conform to IEC standard. YS(AO2/JW) Series Motors is widely used in mechanism facility without specific requirement: agriculture equipment, food machinery, fans, pumps, machine tools, mixers, air compressors.
Technical Data
| Housing Material | Aluminium |
| Frame Size Range | H56-71 |
| Pole | 2, 4 |
| Rated Power | 0.09~0.75KW |
| Rated Voltage | 380V |
| Frequency | 50Hz, 60Hz |
| Protection Class | IP44, IP54, IP55 |
| Insulation Class | B\F\H |
| Mounting Type | B3, B5, B14, B35multi and Pad Mounting |
| Cooling Method | IC411 |
| Terminal Box | Top Mounted |
| Type | Output | Rated
Voltage | At Full Load |
| Speed | Current | Eff. η% | Power Factor |
| W | V | r/min | A | % | CosΦ |
| AO2 | 4522 | 25 | 380 | 2800 | 0.12 | 52 | 0.6 |
| AO2 | 5012 | 40 | 380 | 2800 | 0.17 | 55 | 0.65 |
| AO2 | 5022 | 60 | 380 | 2800 | 0.23 | 60 | 0.66 |
| AO2 | 5612 | 90 | 380 | 2800 | 0.323 | 62 | 0.68 |
| AO2 | 5622 | 120 | 380 | 2800 | 0.3822 | 67 | 0.71 |
| AO2 | 6312 | 180 | 380 | 2800 | 0.53 | 69 | 0.75 |
| AO2 | 6322 | 250 | 380 | 2800 | 0.67 | 72 | 0.78 |
| AO2 | 7112 | 370 | 380 | 2800 | 0.95 | 73.5 | 0.8 |
| AO2 | 7122 | 550 | 380 | 2800 | 1.35 | 75.5 | 0.82 |
| AO2 | 8012 | 750 | 380 | 2800 | 1.75 | 76.5 | 0.85 |
| AO2 | 4514 | 10 | 380 | 1400 | 0.12 | 28 | 0.45 |
| AO2 | 4524 | 16 | 380 | 1400 | 0.155 | 32 | 0.49 |
| AO2 | 5014 | 25 | 380 | 1400 | 0.17 | 42 | 0.53 |
| AO2 | 5024 | 40 | 380 | 1400 | 0.224 | 50 | 0.54 |
| AO2 | 5614 | 60 | 380 | 1400 | 0.28 | 56 | 0.58 |
| AO2 | 5624 | 90 | 380 | 1400 | 0.385 | 58 | 0.61 |
| AO2 | 6314 | 120 | 380 | 1400 | 0.48 | 60 | 0.63 |
| AO2 | 6324 | 180 | 380 | 1400 | 0.65 | 64 | 0.6 |
| AO2 | 7114 | 250 | 380 | 1400 | 0.83 | 67 | 0.68 |
| AO2 | 7124 | 370 | 380 | 1400 | 1.12 | 69.5 | 0.72 |
| AO2 | 8014 | 550 | 380 | 1400 | 1.55 | 73.5 | 0.73 |
| AO2 | 8024 | 750 | 380 | 1400 | 2.01 | 73.5 | 0.75 |
| BO2 | 6312 | 90 | 220 | 2800 | 1.02 | 56 | 0.67 |
| BO2 | 6322 | 120 | 220 | 2800 | 1.36 | 58 | 0.69 |
| BO2 | 7112 | 180 | 220 | 2800 | 1.89 | 60 | 0.72 |
| BO2 | 7122 | 250 | 220 | 2800 | 2.4 | 64 | 0.74 |
| BO2 | 8012 | 370 | 220 | 2800 | 3.36 | 65 | 0.77 |
| BO2 | 6314 | 60 | 220 | 1400 | 1.23 | 39 | 0.57 |
| BO2 | 6324 | 90 | 220 | 1400 | 1.64 | 48 | 0.58 |
| BO2 | 7114 | 120 | 220 | 1400 | 1.88 | 50 | 0.58 |
| BO2 | 7124 | 180 | 220 | 1400 | 2.49 | 53 | 0.62 |
| BO2 | 8014 | 250 | 220 | 1400 | 3.11 | 58 | 0.63 |
| BO2 | 8024 | 370 | 220 | 1400 | 4.24 | 62 | 0.64 |
Package
Frame NO. 80--132 :Package by carton box and then packed by wooden box
Frame NO.160 and above:one wooden box per set
