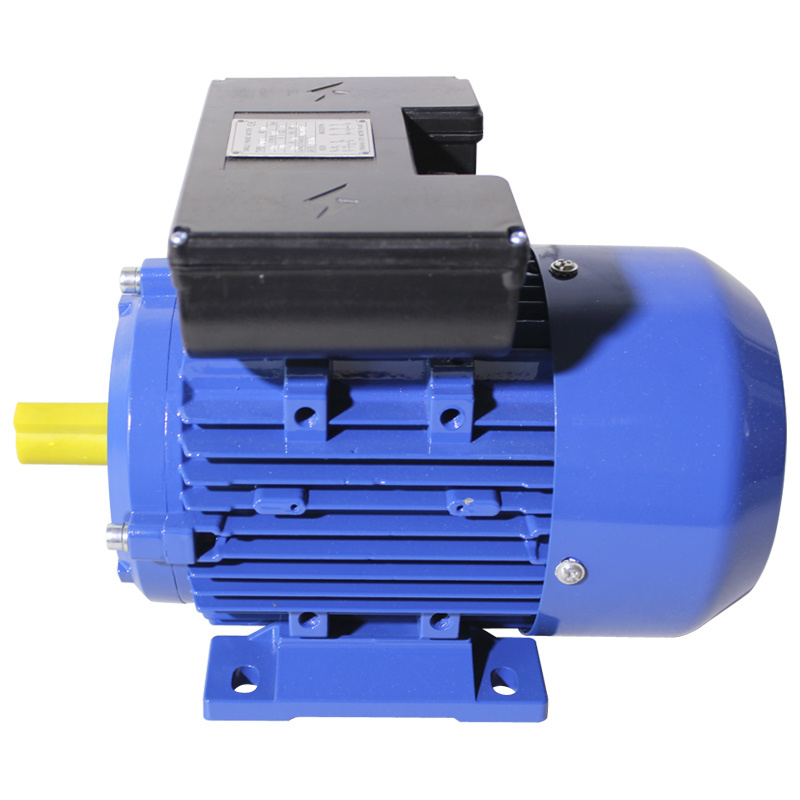

Yu/Mu/Bo2/Jz Series Single Phase Induction Electric Motor

Name: Yu/Mu/Bo2/Jz Series Single Phase Induction Electric Motor
Brand: all-electronics-online.com
SKU: 790443355
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	US $ 20PCS
Min Order:	50PCS
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	Frame Size: H56~71
Frame Size Range:	H56~71
Application:	Power Tools
Operating Speed:	High Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Brand:	Hongma
Species:	One Capacitor
Certification:	Ce
Number Of Poles:	2p/4p

Product Description

YU( BO2/JZ) Series Single-Phase Asynchronous Motor is designed to nation standard and are of good performance, low noise, small size, light weight, easy maintenance. Features designed to Protection Class IP44, IP54 and higher up to IP55; Cooling Method IC411; Rated Voltages 380V, 400V and 415V; Frequency 50HZ or 60HZ. It is widely used in mechanism equipment with single phase voltage.

Single Phase Micropower Asynchronous Induction Motor
YU( BO2/JZ) Single Phase Resistance Start Motors
GENERAL INFORMATION
Frame Size: H56~71
Rated Power: 0.04~1.1KW
Rated Voltage: 220V
Frequency: 50HZ ;60HZ
Protection Class: IP44;IP54;IP55
Insulation Class: B;E;F
Ambient Temperature: -20~+40 °C
Altitude: ≤1000M

Contact Information:
Name: Kisty Hung
Mob: 0086 136 8583 1788

www.hongmamotor.com

Welcome to contact us!

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
