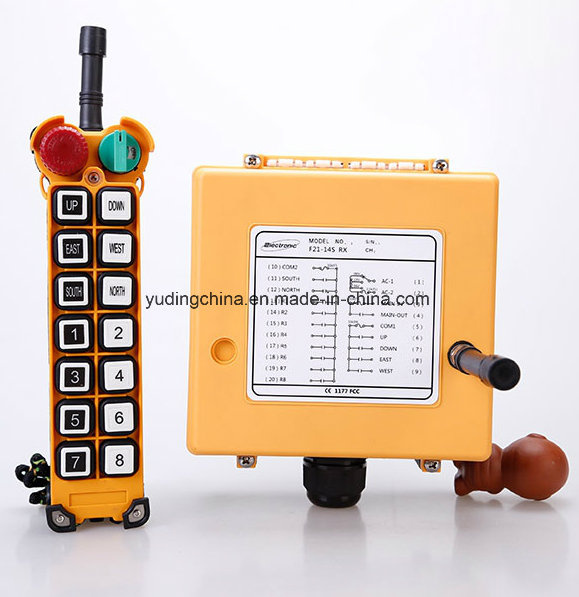

Yuding Mobile & Crawler Cranes Remote Control (F21-14S)
| Price: |
US $ 200-500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
F21-14S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Yuding Mobile & Crawler Cranes Remote Control |
| Certificates: |
CE,FCC,ISO |
| Control Distance: |
up to 100m |
| F21-14s Packing Details: |
1 Set/Inner Carton,10 Sets/Outer Carton |
| F21-14D Packing Size: |
5.5kg(Including Inner Carton) |
| F21-14D Net Weight: |
55*30*26cm(Including Inner Carton) |
| F21-14D Packing Details: |
1 Set/ Carton |
| Shipping: |
International Express |
| Application: |
Material Handling Equipment,Lifting Euipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Battery Type: |
AA Battery |
| Voltage: |
AC380V/220V/110V/48V/36V/24V/12V or DC12V |
| Material: |
Glass Fiber |
Product Description
Dirk Mobile & Crawler Cranes Remote Control (F21-14S)

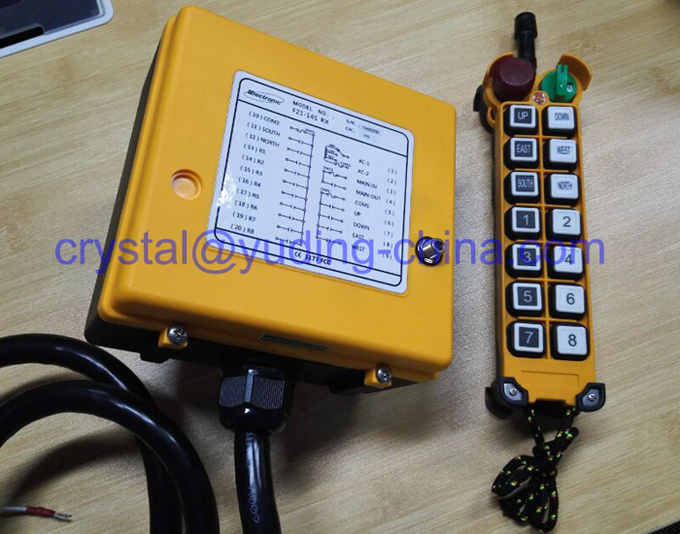

Standard Configuration:
One Transmitter (with strap),
One Reiceiver,
Receiver with 1m Cable,
One Operation and maintain manual Applications of wireless crane remote control:
Widely applied in lifting equipments,construction machinery cargo loading/unloading machines,water supply system,data transmission,the iron smelting and steel-making the automobile manufacturing,papermaking and chemical industry,steel structure processing,galvanization,shipbuilding,railroad,bridge tunnel construction and other equipments and sites which can be worked by radio controls
Features of remote control:
· 14 Single Speed Push buttons,1 EMS button and 1 rotate switch.
· Control points up to 14(14S)
· With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
· Set the internal functions by computer interface.
· UP/DOWN,EAST/WEST,SOUTH/NORTH,1/2,3/4,5/6,7/8 push buttons can be set ordinary,jump strokes,mutural inhibition or not.
Technical Specifications:

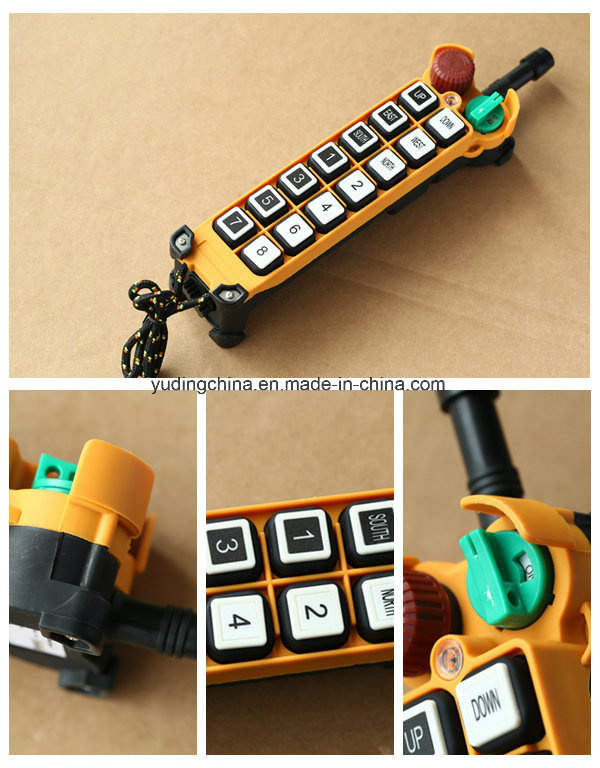

Transmitter Sepcification:
| TX Model | F21-14S-TX-V-(E) |
| TX Size | 21.5x6.5x4.7cm |
| TX Weight | about343g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 14 Single speed buttons,1 mushroom button,1Rotary switch |
| Button Marking | English + number |
| I.D.Code | 0.2 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 2.2V,
and unable to start TX under 1.8V. |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |

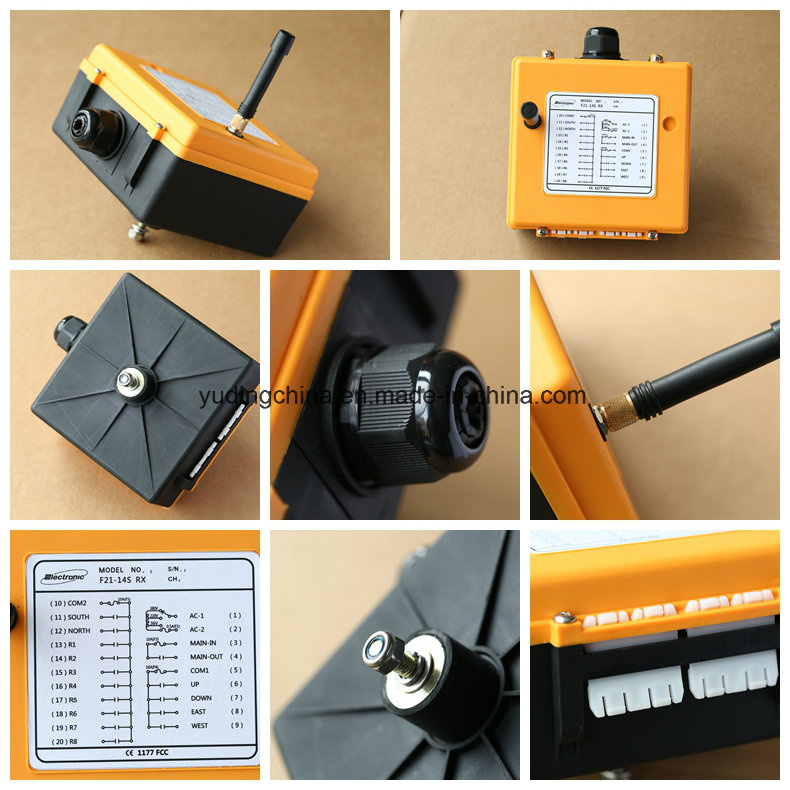

Receiver Specification:
| RX Model | F21-14S-RX-V-(E) |
| RX Size | 17.0x16.7x8.7cm |
| RX Weight | about1203g |
| Housing Material | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| connection diagram | english |
| Temperature Rating | -35°C ~ +85°ºC |
| Power Supply | AC380V,AC36V,AC220V,AC110V,AC48V,AC24V,AC12V/DC12V,
AC380V/AC220V(50-60Hz) |
| Relays | 14 Relays control functions,1 relay control EMS |
| Output Relays | 5Amp Omniseal Relays(AC250V/10A Relays ,10Amp fuse) |
| I.D.Code | 0.2 billion |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| Sensitivity | >=-110DBm |
| Interface | Cable output |

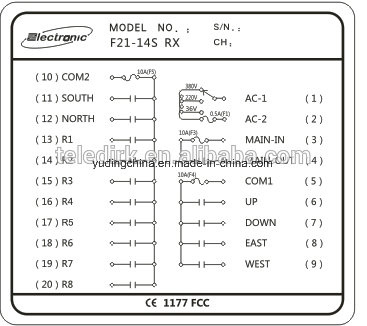

Connection Diagram:
Our Products Advantage:
All our products have got CE,FCC,ISO Certificate.
All operate process according to ISO9001:2008 and international quality control system.
Easy to operate to keep workers safety.
One year warranty.
OEM orders can be acceptable.
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
