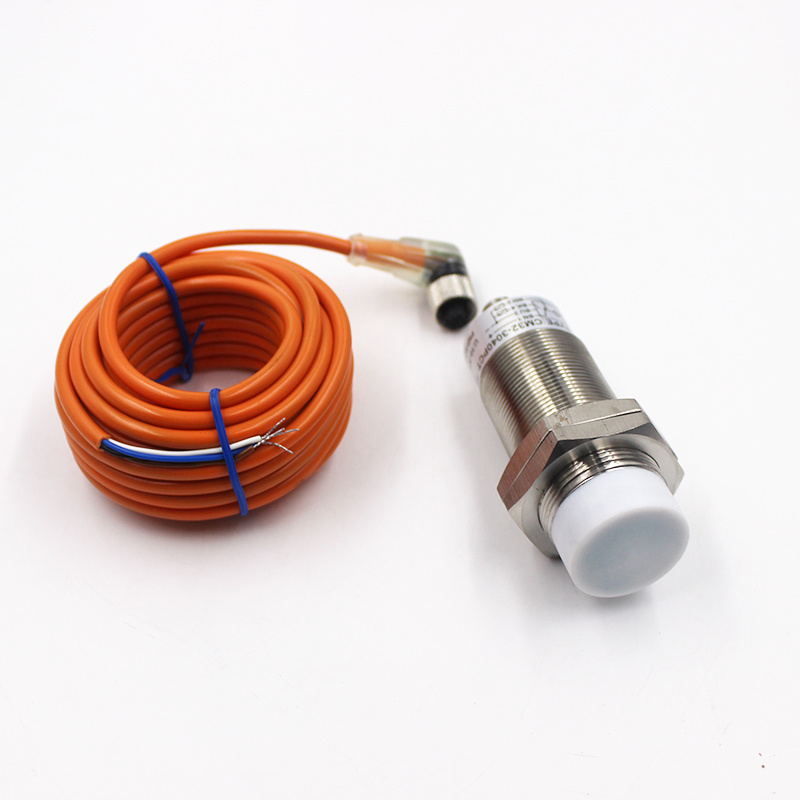

Yumo 40mm Long Distance Capacitive Proximity Switch Sensor
| Price: |
US $ 3-40/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
CM32-3040PCT |
| Housing Diameter: |
32mm |
| Sensing Distance: |
1-40mm |
| Operation Type: |
No+Nc |
| Voltage: |
DC6-36V |
| Standard Detected Object: |
Conductor and Dielectric Body |
| Shell Material: |
ABS Resin, Copper , Stainless Steel |
| Output Current: |
DC 200mA |
| Output Voltage Drop: |
DC<3V |
| Responce Frequency: |
DC 50Hz |
| IP Grade: |
IP54~IP67 |
| Principle: |
Capacitive |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Capacitive Sensor |
| Wires: |
4wires |
| Application: |
Position Sensor |
| Size: |
M18 |
Product Description
YUMO CM32-3040PCT 40mm long distance capacitive proximity switch sensorProximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application, this is a very simple technology to detect 1"~2" metal object. YUMO Electric offer different series proximity sensor, that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality, enabling the sensors in a world-class level . If you are searching for proximity switch, YUMO will be your best choice.
CM32 Data | CM32 Capacitive proximity switch |
| Detecting rang mm 0-12mm | YUMO part no. |
| Flush | DC 6-36V | NPN | NO | CM32-30012NA |
| NC | CM32-30012NB |
| NO+NC | CM32-30012NC |
| PNP | NO | CM32-30012PA |
| NC | CM32-30012PB |
| NO+NC | CM32-30012PC |
| AC 90-250V | SCR | NO | CM32-20012A |
| NC | CM32-20012B |
| Detecting rang mm 0-18mm | |
| Non-flush | DC 6-36V | NPN | NO | CM32-3018NA |
| NC | CM32-3018NB |
| NO+NC | CM32-3018NC |
| PNP | NO | CM32-3018PA |
| NC | CM32-3018PB |
| NO+NC | CM32-3018PC |
| AC 90-250V | SCR | NO | CM32-2018A |
| NC | CM32-2018B |
| Characteristics |
| Output current | DC | 200mA |
| SCR/relay | 300mA |
| Output voltage drop | DC<3V;AC<7V |
| Consumption current | DC<15mA, AC<10mA |
| Standard detected object | Conductor and dielectric body |
| Response Frequency | DC:50Hz ; AC: 10HZ |
| Working environment temperature | -25ºC ~+70ºC |
| Insulation resistance | 50MΩ |
| Shell material | ABS Resin , Metal |
| Protection grade | IEC Standard IP54 |
| Alternative model | LJC32A3-** |
