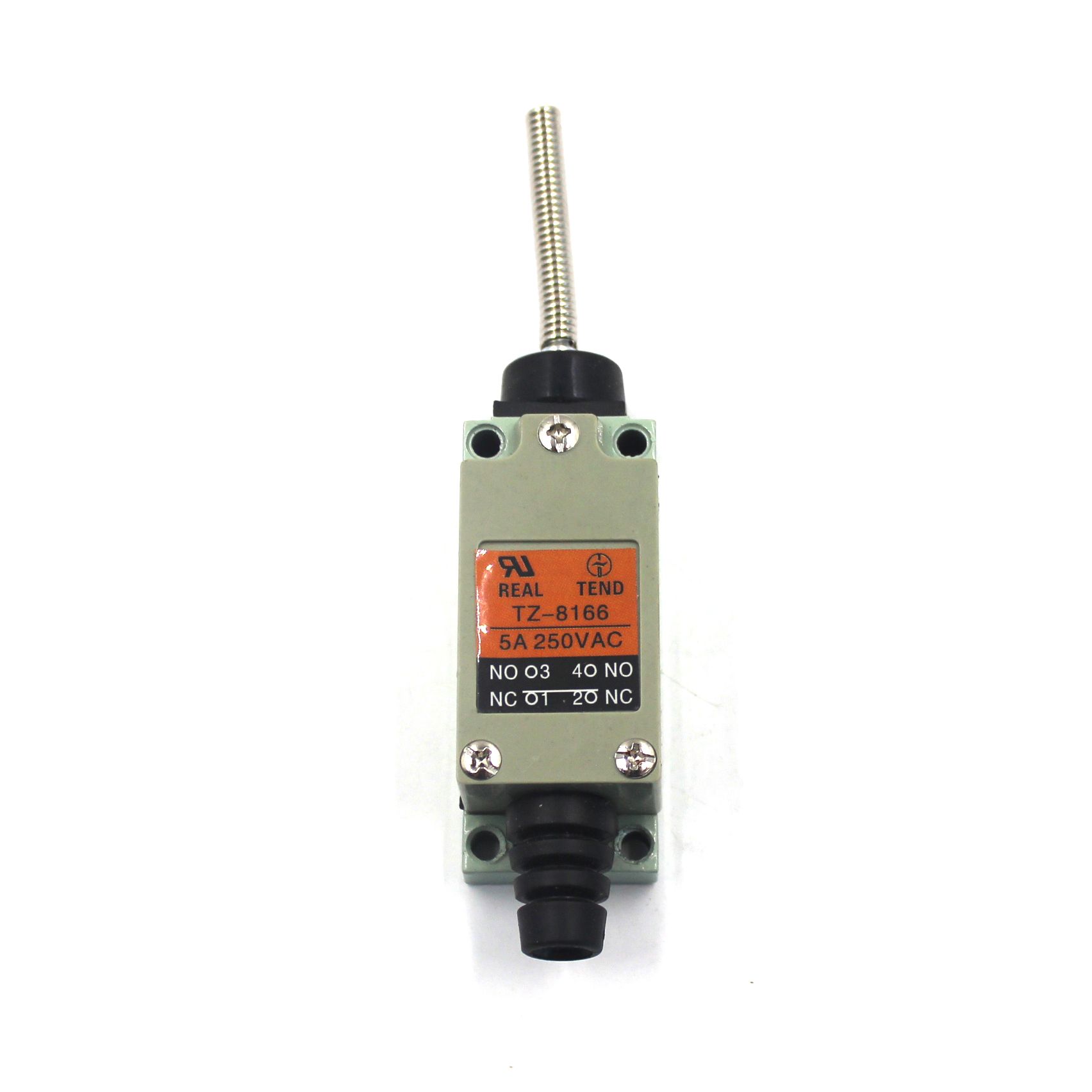

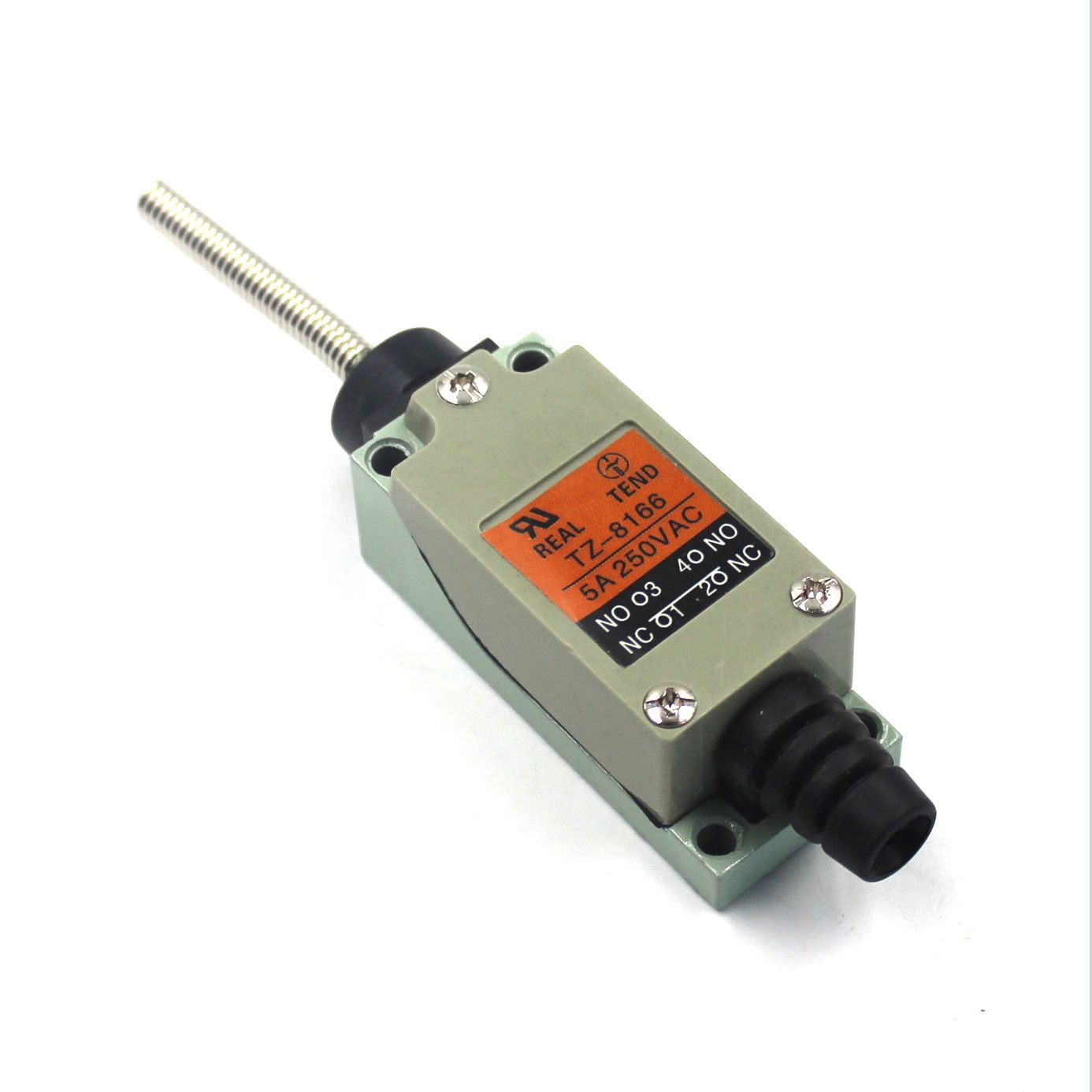

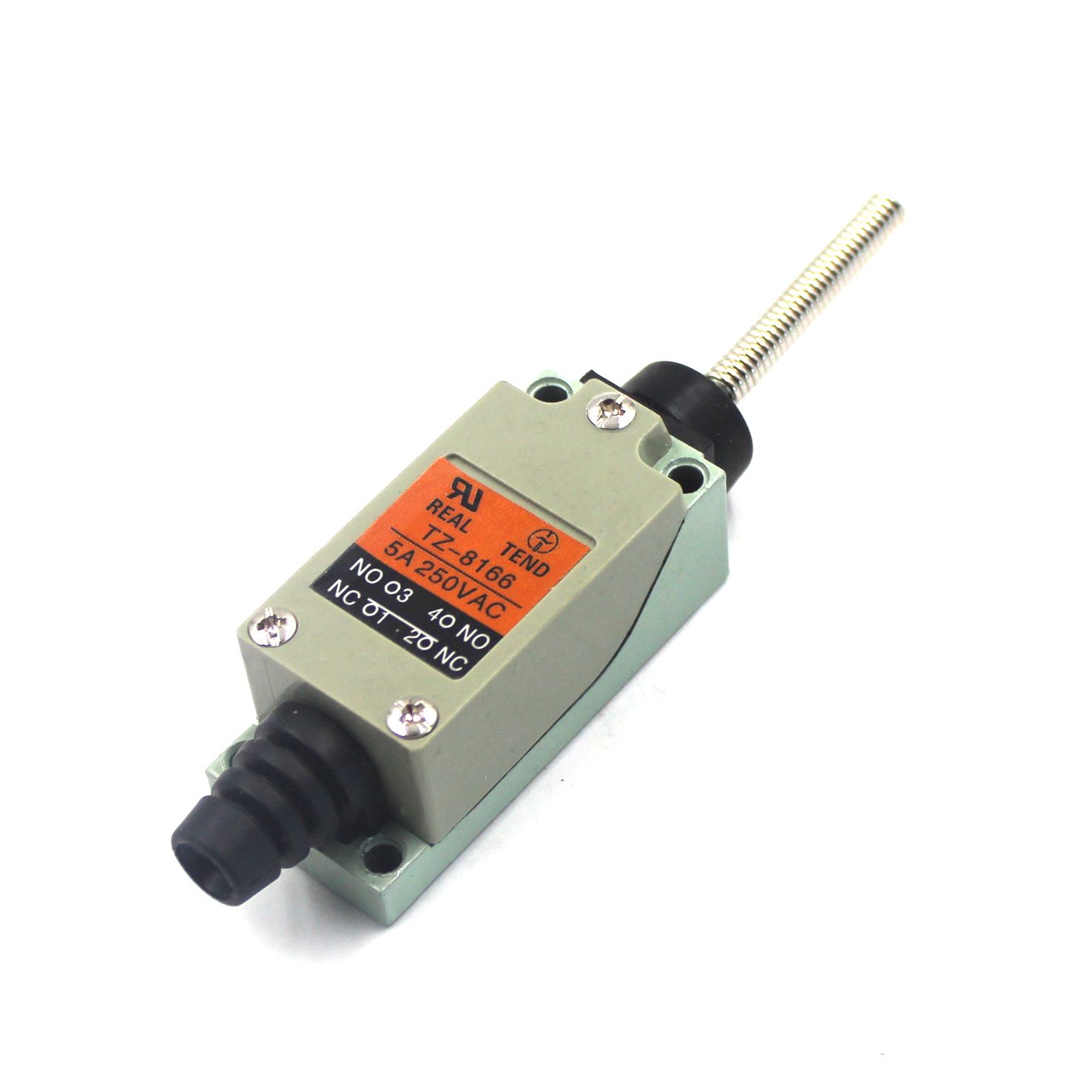

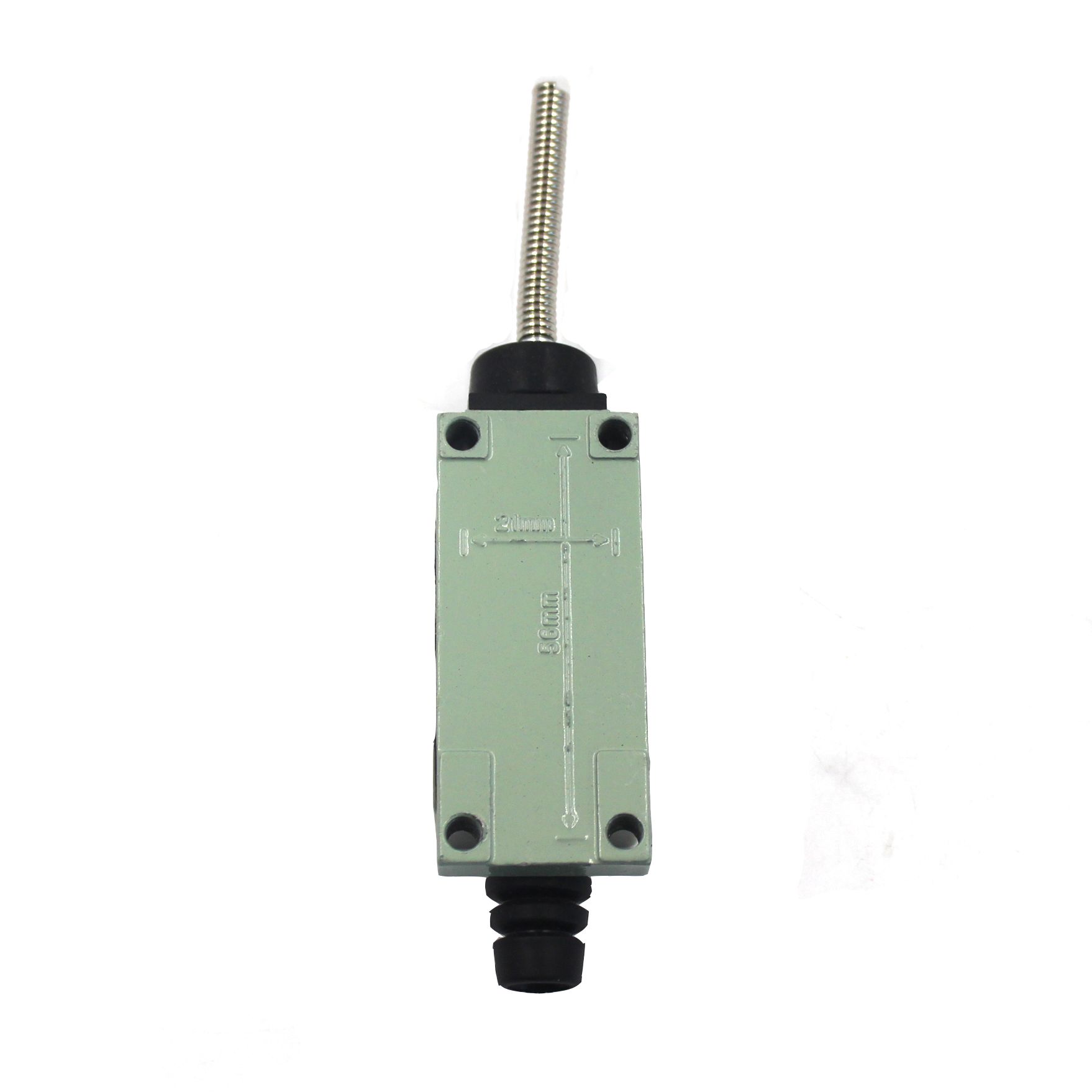

Yumo 5A 250VAC Tz-8166 High Temperature, Price IP65 Comply with IEC60529 Tz-8 Limit Switch

Name: Yumo 5A 250VAC Tz-8166 High Temperature, Price IP65 Comply with IEC60529 Tz-8 Limit Switch
Brand: all-electronics-online.com
SKU: 831568725
Availability: InStock
Rating: 4.9 (102 reviews)

Price:	US $ 2.8-3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TZ-8166
Max. Voltage:	250VAC
Max. Current:	5A
Ambient Temperature:	-25--70c
Contact Form:	No, Nc
Shape:	Double Circuit Type Limit Switch
Mechanical Life:	15,000,000 Times
Protection Level:	IP65
Storage Temperature:	-40----70c

Product Description

YUMO TZ-8166 Limit switch High temperature limit switch limit switch price IP65 comply with IEC60529 TZ-8 Limit switch

Model:

Model

TZ-8104

TZ-8108

TZ-8107

TZ-8111

TZ-8112/8122

TZ-8166/8167/8168/8169

Triggering

30°convex trigger

Any moving part

At the end

30°convex trigger

Any moving part

Contact operation

Contacts attract Contacts separate

Max triggering speed

1.3m/s

0.25m/s

1.3m/s

Max restoring force

750g

900g

150g

Min restoring force

100g

150g

Weight(kg)

0.19

0.21

0.2

0.155

0.16

0.15

Wiring

Flexible rubber cable sleeve is suitable for cables of Ø6…9mm, each termianlcan hold conductors of 2mm² at most

Tecnical Parameter:

Characteristics of Contact Module
Rated operating characteristics	Inductive load:-AC15,B300(Ue=240V,le=1.5A) --DC-13,R300(Ue=250V,le=0.1A) Resistive load:250V,5A
Rated insulation voltage	Ui=500V,class of pollution is 3,comply with IEC 60947-1 Ui=300V, comply with UL508, CSA C22-2n° 14
Insulation resistance	>100MΩ, at 500V
Operating frequency	120 times/min
Electrical life	1,000,000 times,AC-15(Ue=240V,le=1.5A
Contact resistance	≤25MΩ,5V,5mA, after ten million times of operation

Environmental Characteristics
Normative reference	Product	IEC60947-5-1,EN60947-5-1,UL508,CSAC22-2N°14
Normative reference	Components	IEC60204-1,EN60204-1
Ambient temperature	Operating	-25ºC to 70ºC
Ambient temperature	Storage	-40ºC to 70ºC
Vibration resistance	Comply with IEC60068-2-6	55Hz,1.5mm double-amplitude
Shock resistance	Comply with IEC60068-2-27	30gn 18ms, in any position
Degress of protection		IP65, comply with IEC60529
Mechanical life		15,000,000 times

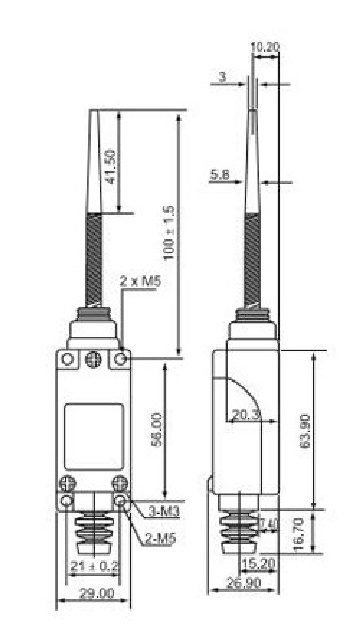

Dimension:
