| Prod Model: |
CM18-3005PC |
| Housing Diameter: |
18mm |
| Detecting Distance: |
0-5mm |
| Output Signal: |
PNP.No+Nc |
| Voltage: |
6-36VDC |
| Output Current: |
200mA |
| Standard Detected Object: |
Conductor and Dielectric Body |
| Response Frequency: |
Metal or ABS Resin , |
| IP: |
IEC Standard IP or 54 |
| Consumption Current: |
<15mA |
| Working Environme: |
-25c~70c |
| Principle: |
Capacitive |
| Standard: |
Standard |
| Application: |
Basement |
| Certification: |
CE |
| Wires: |
PNP.No+Nc |
Product Description
YUMO CM18-3005PC Plastic Detection Distance 0-5mm Adjustable PNP.NO+NC Capacitive Proximity Switch
Datasheet:| CM18 Capacitive proximity switch |
| Detecting rang mm 0-5mm | YUMO part no. |
| Flush | DC 6-36V | NPN | NO | CM18-3005NA |
| NC | CM18-3005NB |
| NO+NC | CM18-3005NC |
| PNP | NO | CM18-3005PA |
| NC | CM18-3005PB |
| NO+NC | CM18-3005PC |
| AC 90-250V | SCR | NO | CM18-2005A |
| NC | CM18-2005B |
| Detecting rang mm 0-8mm | |
| Non-flush | DC 6-36V | NPN | NO | CM18-3008NA |
| NC | CM18-3008NB |
| NO+NC | CM18-3008NC |
| PNP | NO | CM18-3008PA |
| NC | CM18-3008PB |
| NO+NC | CM18-3008PC |
| AC 90-250V | SCR | NO | CM18-2008A |
| NC | CM18-2008B |
| LMF40 Inductive proximity switch Characteristics |
| Output current | DC | 200mA |
| SCR/relay | 300mA |
| Output voltage drop | DC<3V;AC<7V |
| Consumption current | DC<15mA, AC<10mA |
| Standard detected object | Conductor and dielectric body |
| Response Frequency | DC:50Hz ; AC: 10HZ |
| Working environment temperature | -25ºC ~+70ºC |
| Insulation resistance | 50MΩ |
| Shell material | ABS Resin , Metal |
| Protection grade | IEC Standard IP54 |
| Alternative model | LJC18A3-** |

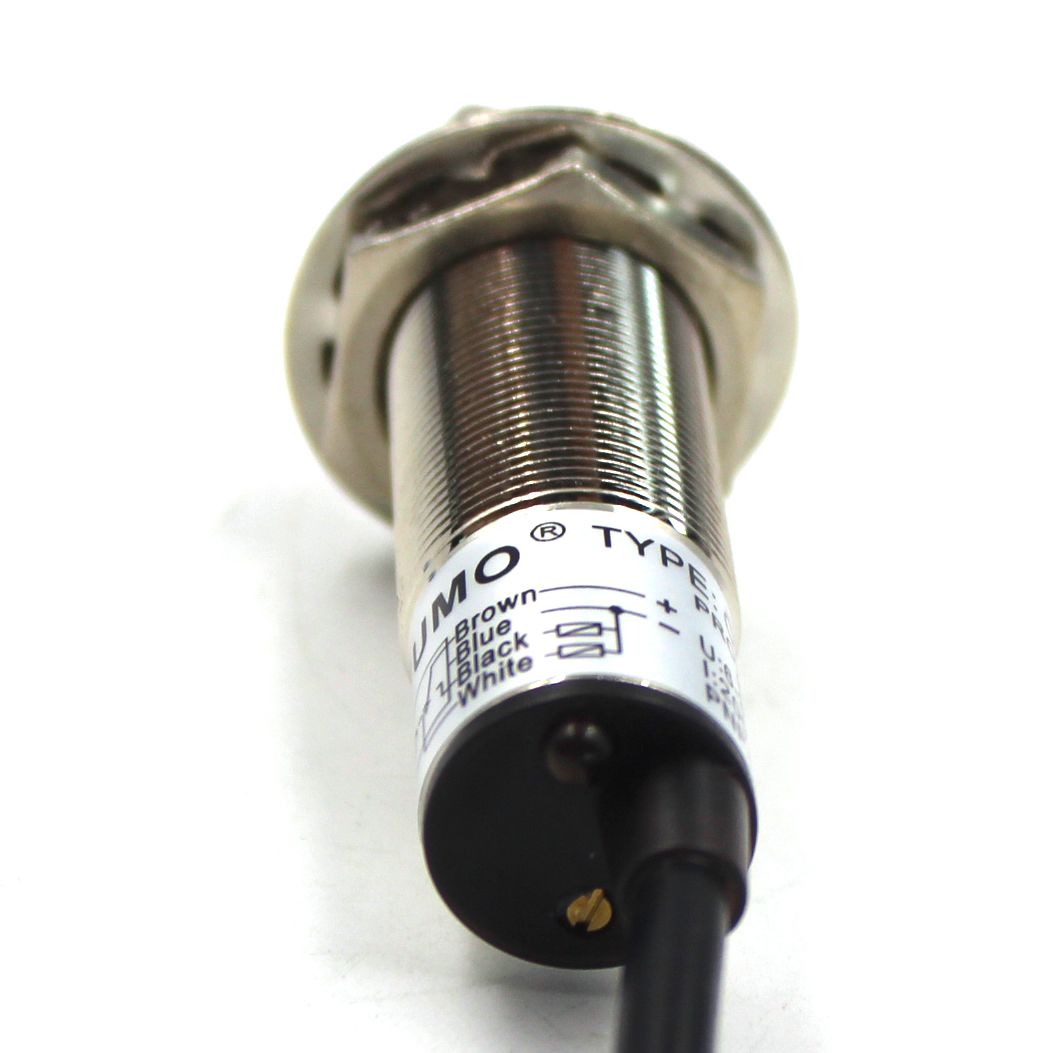

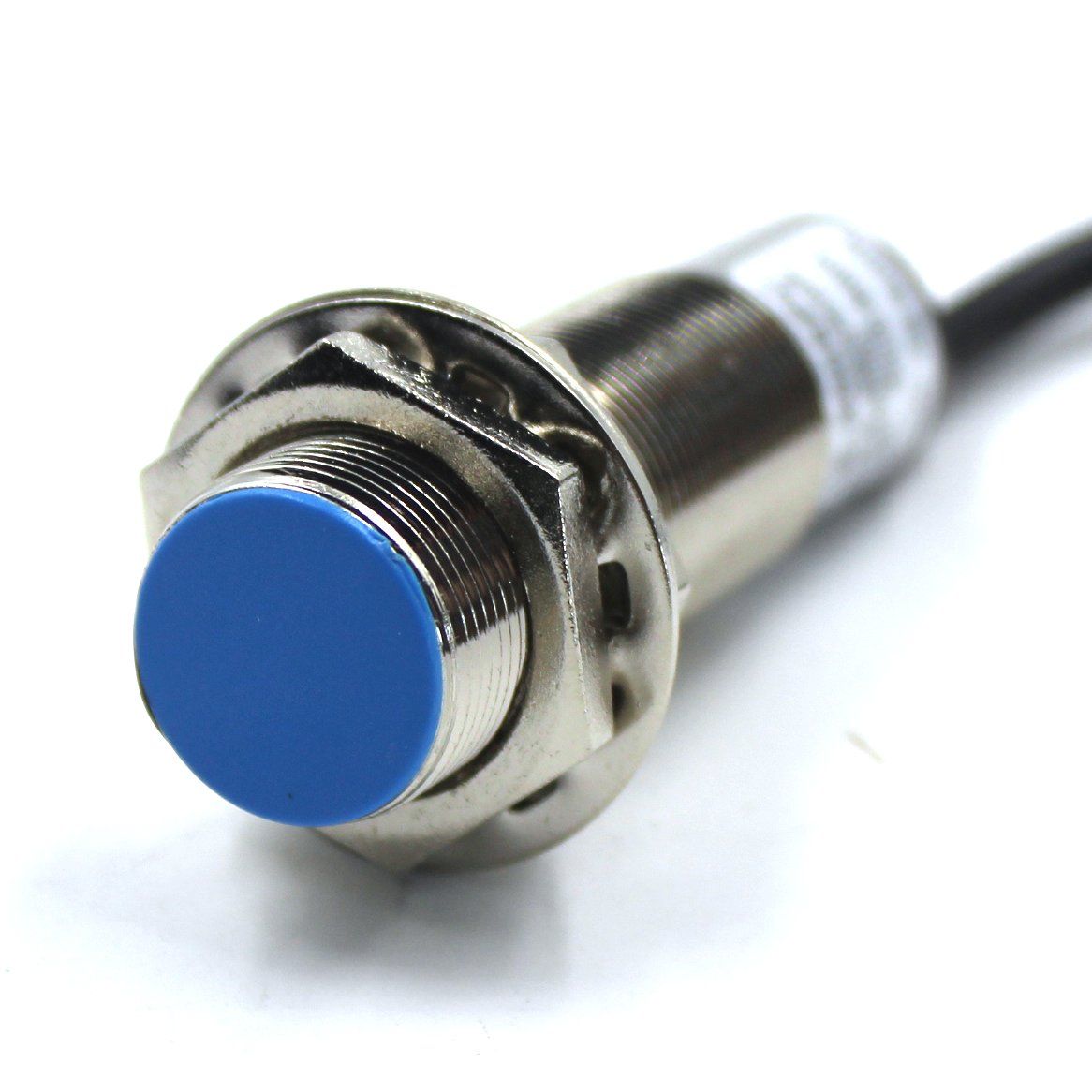

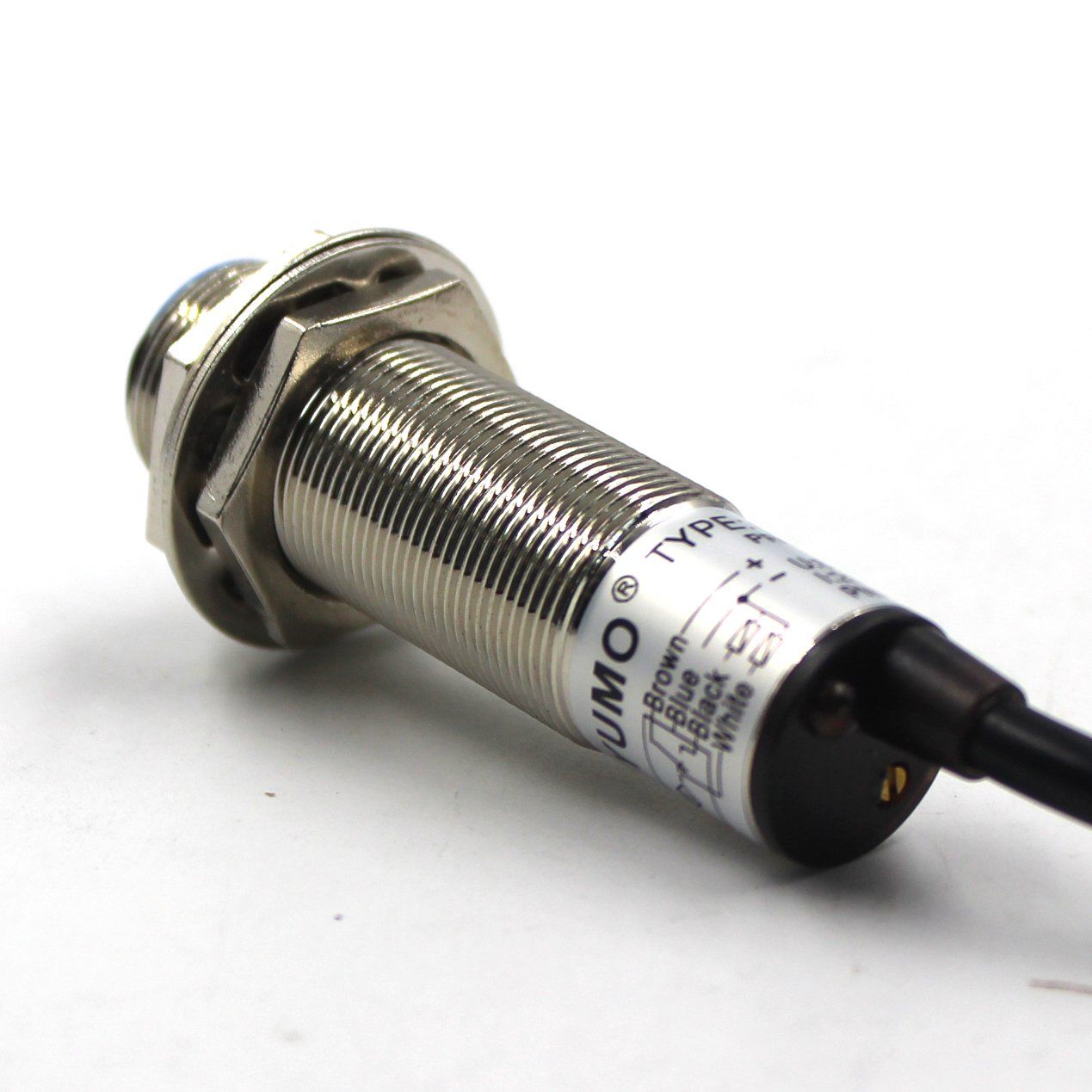

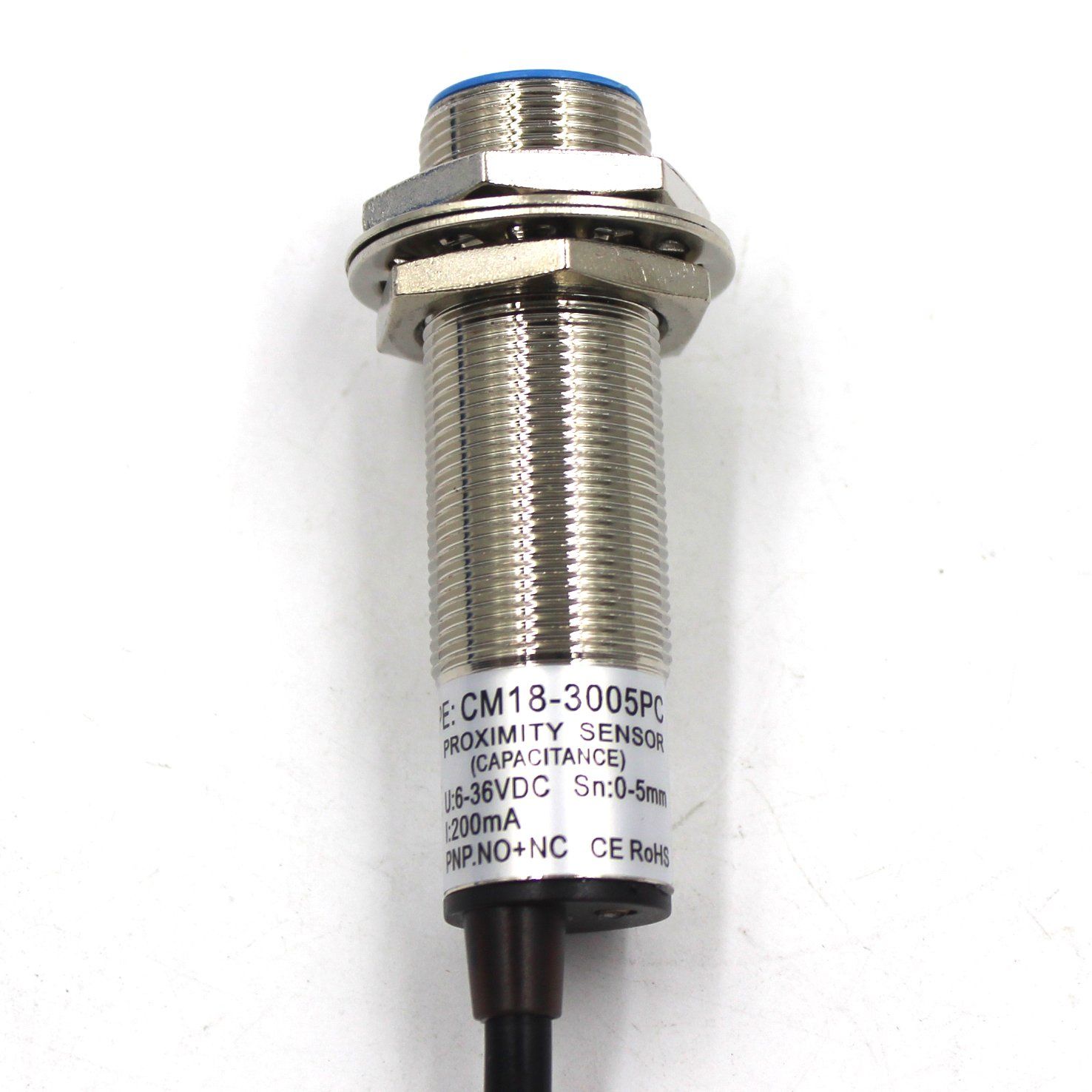

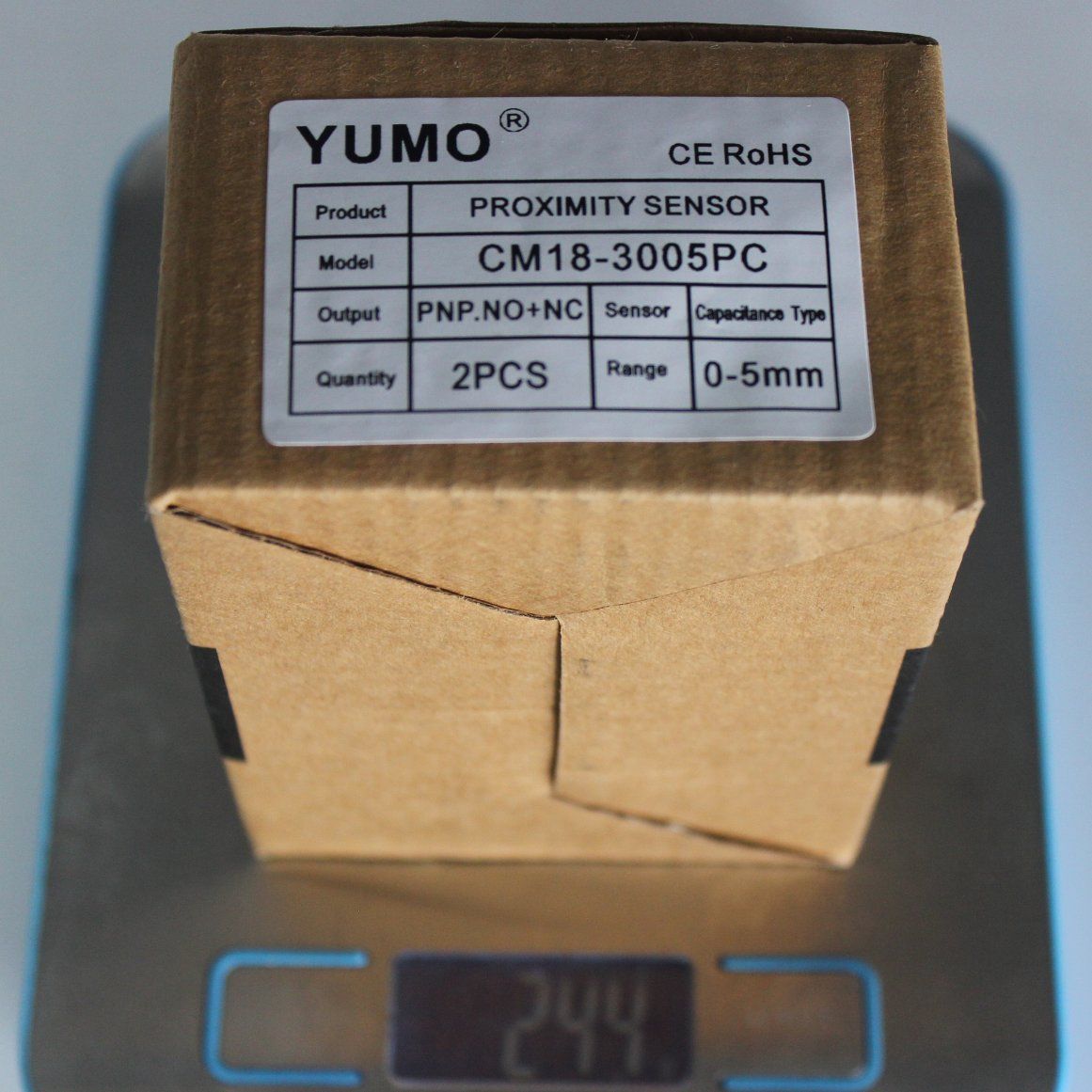

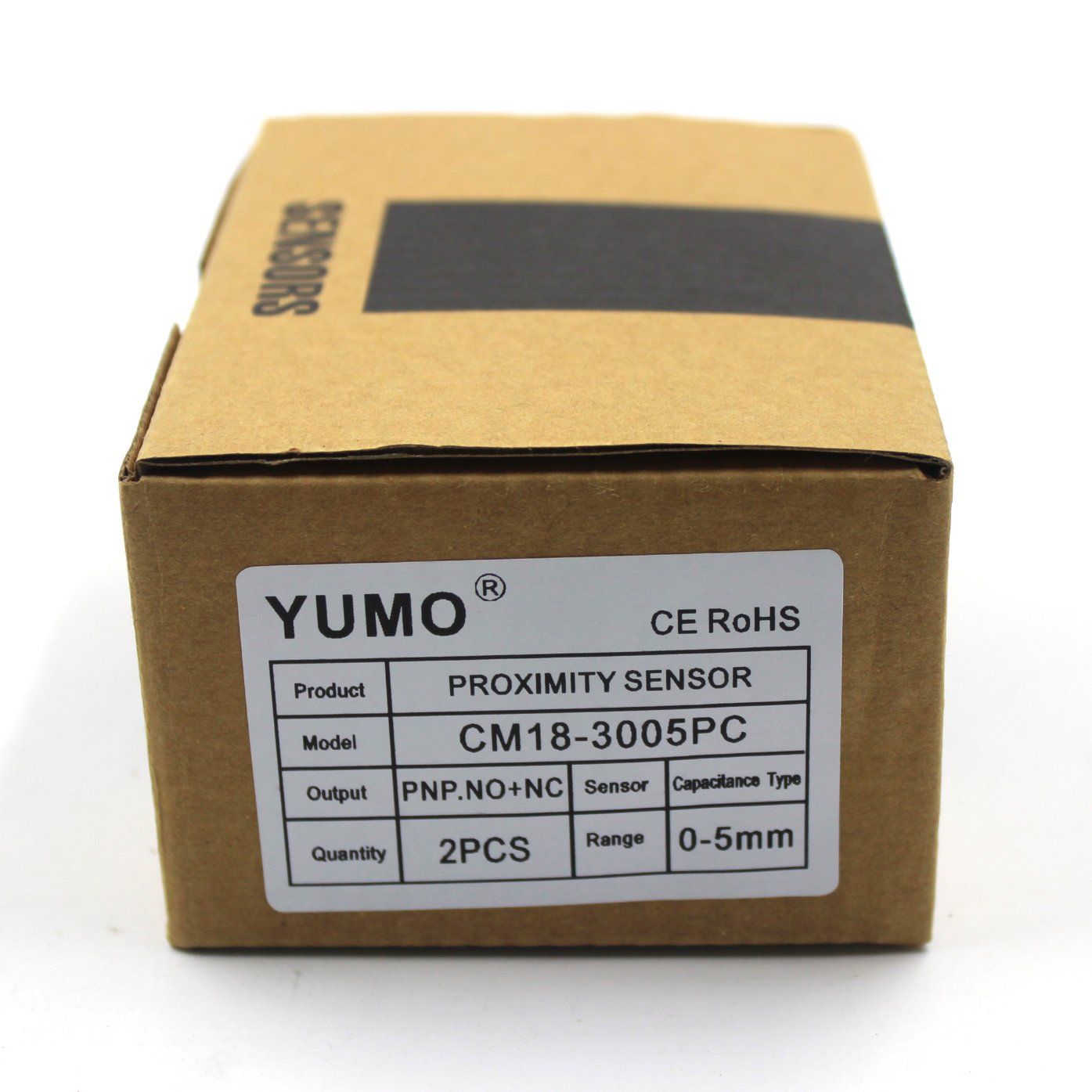

Product picture:
