| Prod Model: |
CM30-3010NA |
| Housing Diameter: |
30mm |
| Detecting Distance: |
0-10mm |
| Output Signal: |
NPN.No |
| Voltage: |
6-36VDC |
| Output Current: |
200mA |
| Standard Detected Object: |
Conductor and Dielectric Body |
| Response Frequency: |
Metal or ABS Resin , |
| IP: |
IEC Standard IP or 54 |
| Consumption Current: |
<15mA |
| Working Environme: |
-25c~70c |
| Principle: |
Capacitive |
| Standard: |
Standard |
| Application: |
Basement |
| Certification: |
CE |
| Wires: |
NPN.No |
Product Description
YUMO CM30-3010NA proximity switch optical inductive proximity sensor capacitive sensor

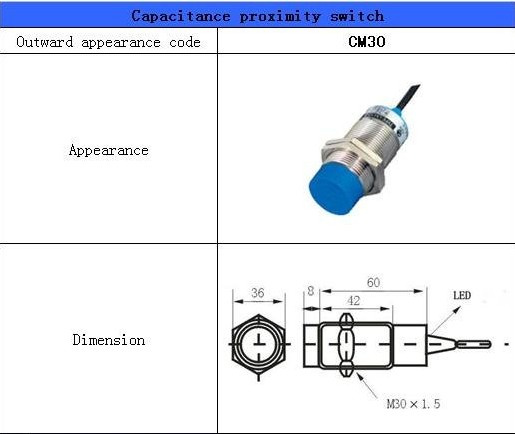

Datasheet:
| Flush | Detection distance | 0-10mm |
| DC6-36V | NPN | NO | 3010NA |
| NC | 3010NB |
| NO+NC | 3010NC |
| PNP | NO | 3010PA |
| NC | 3010PB |
| NO+NC | 3010PC |
| AC90-250V | SRC Control label silicon | NO | 2010A |
| NC | 2010B |
Non-flush | Detection distance | | 0-15mm |
| DC6-36V | NPN | NO | 3015NA |
| NC | 3015NB |
| NO+NC | 3015NC |
| PNP | NO | 3015PA |
| NC | 3015PB |
| NO+NC | 3015PC |
| AC90-250V | SRC Control label silicon | NO | 3015A |
| NC | 2015B |
| Control output | DC | 200mA |
| SCR/Relay | 300mA |
| Detect object | conductor and dielectric body |
| Consumption current | DC<15mA AC<10mA |
| Output current | DC:200mA AC:300mA |
| Output voltage drop | DC<3V AC<7V |
| Response frequency | DC:50HZ AC:10HZ |
| Shell material | Resin/Metal |
| Working environment temperature | below 25C to 70C |
| Insulation resistance | 50MΩ |
| Shell meterial | Metal |
| Protection grade | IEC standard IP54 |

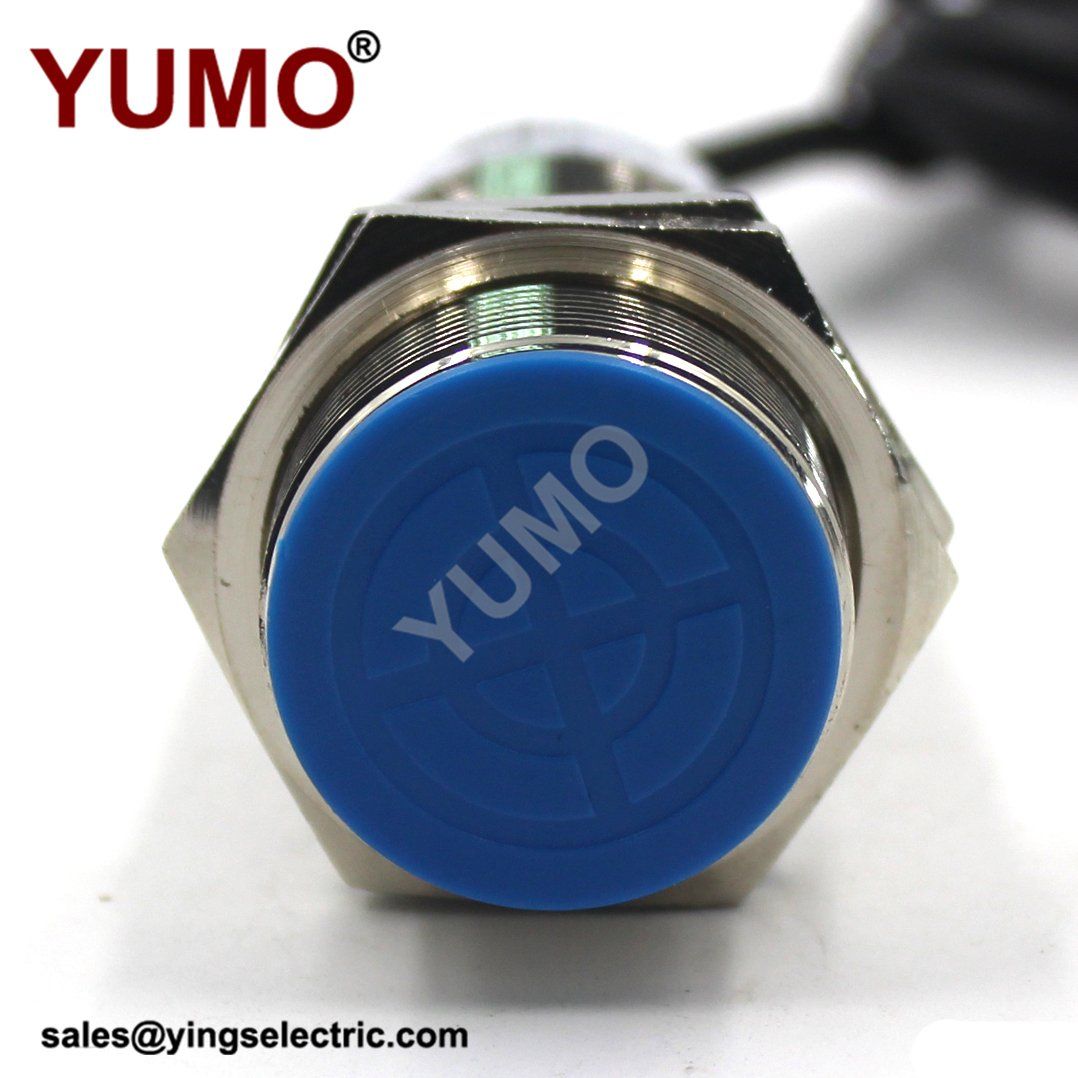

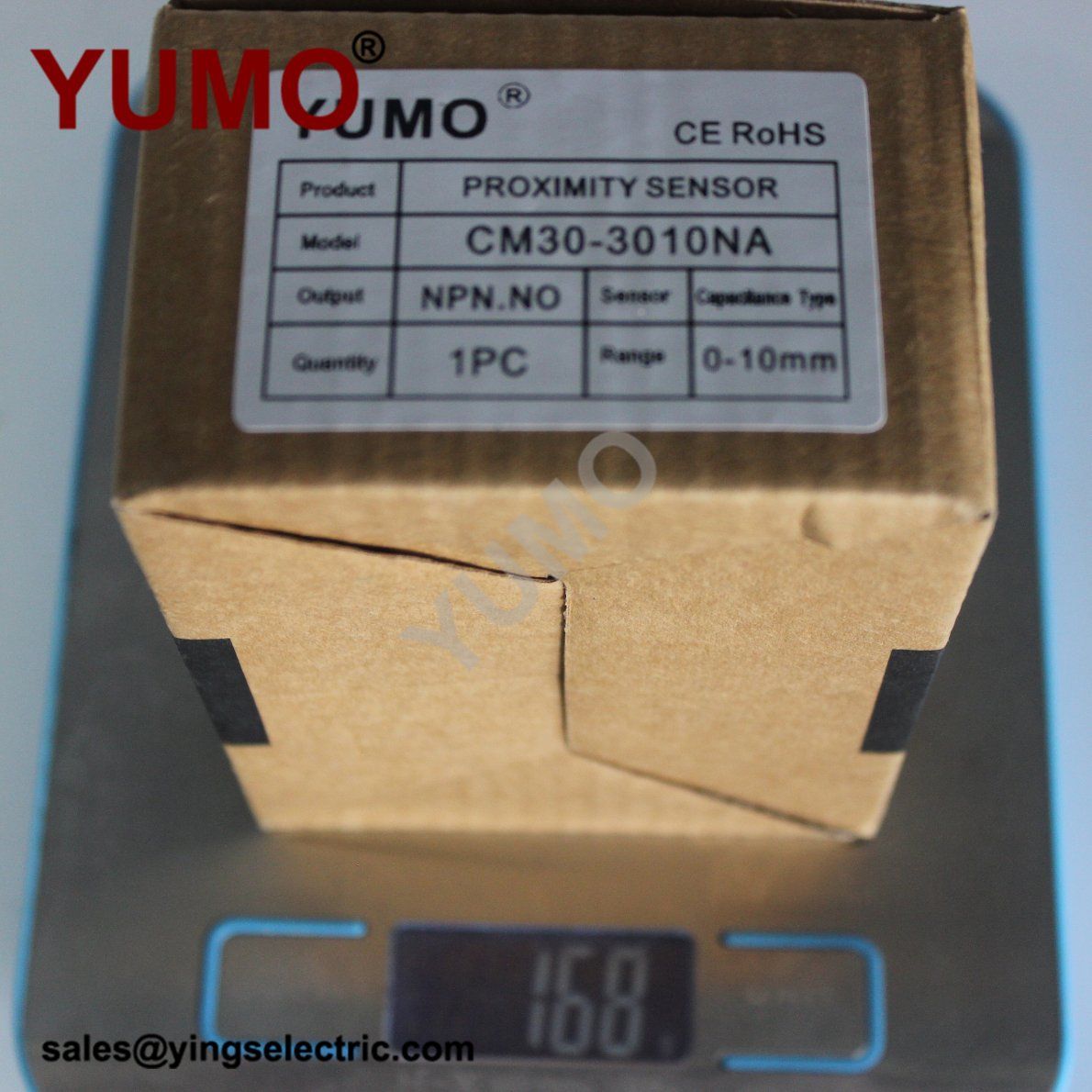

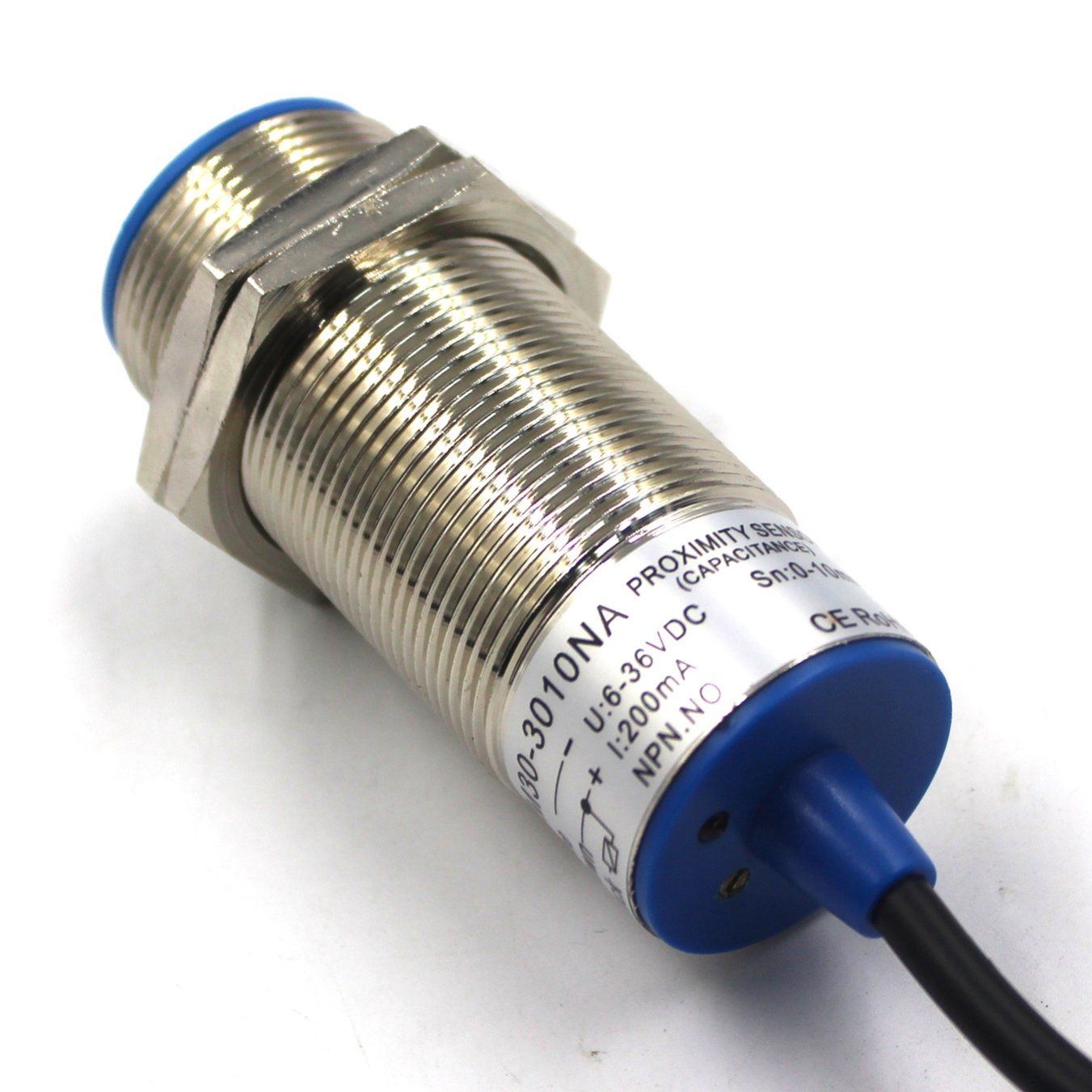

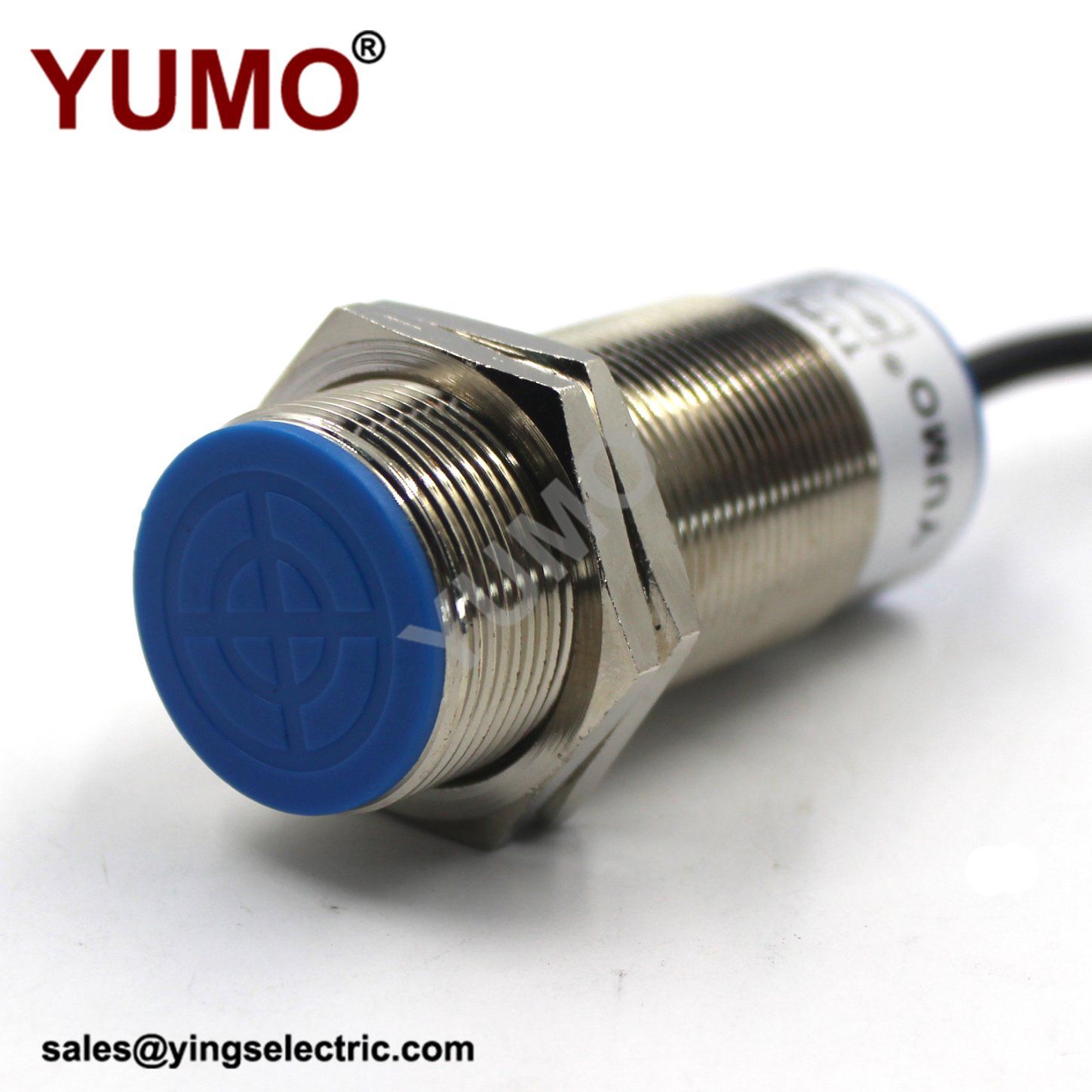

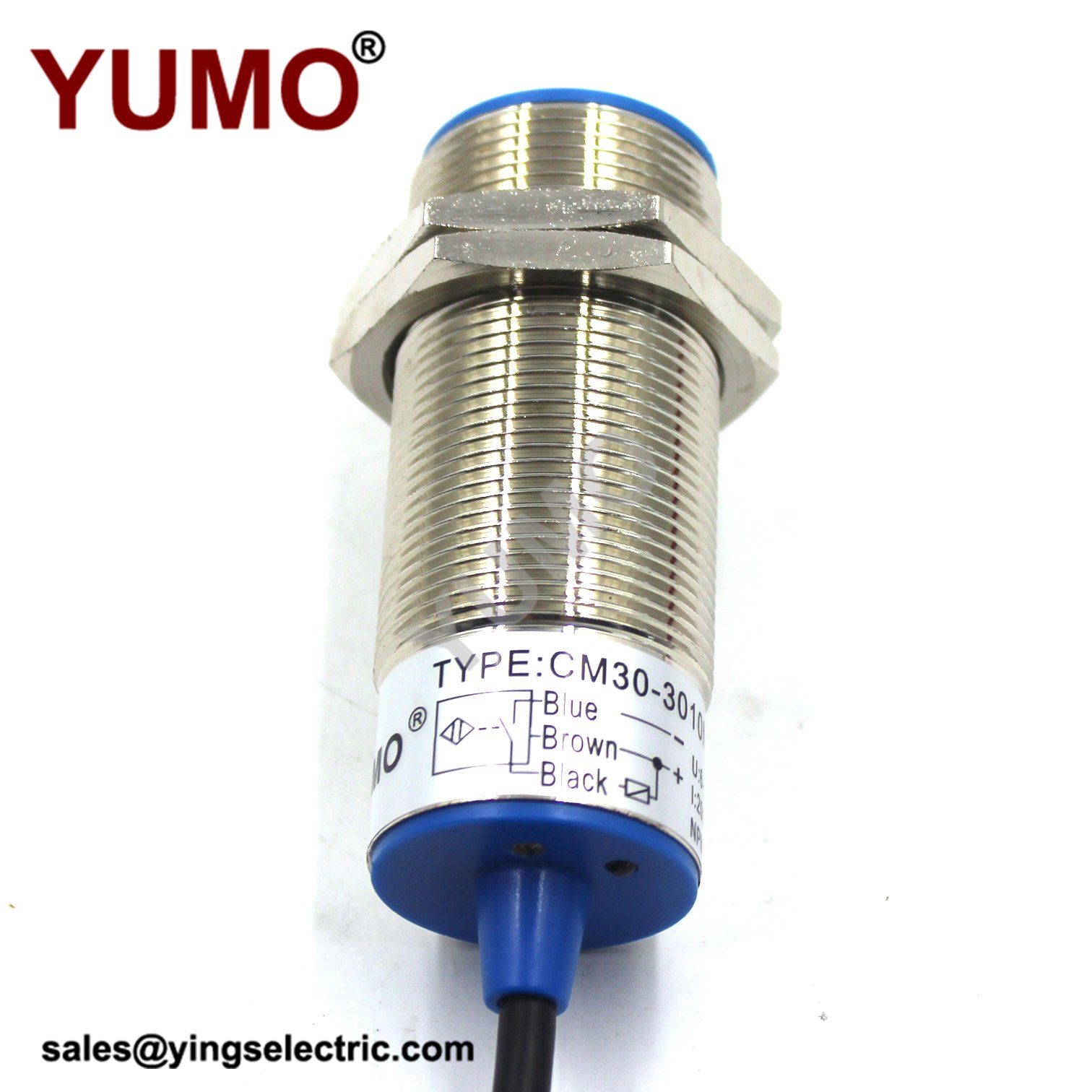

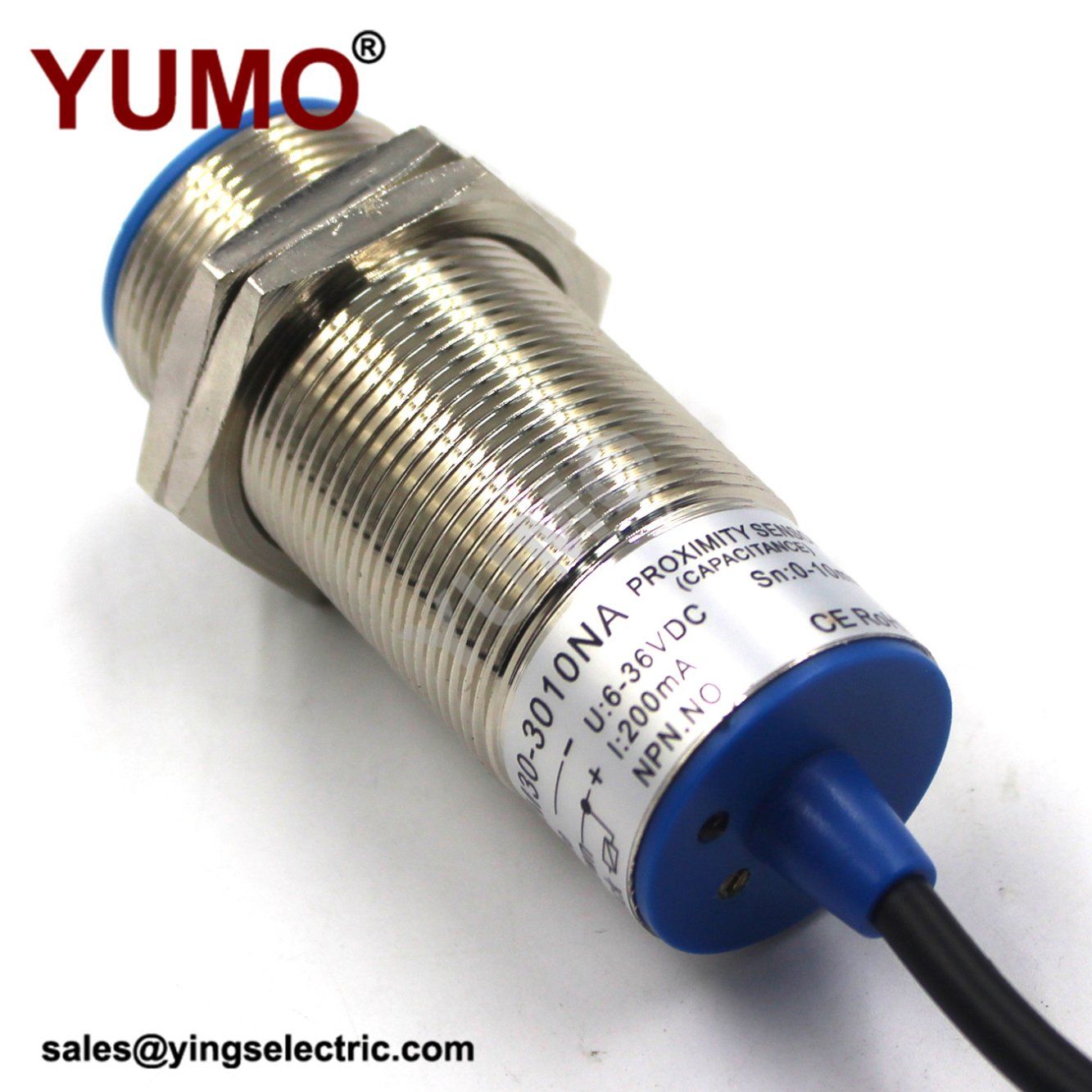

Product picture:
