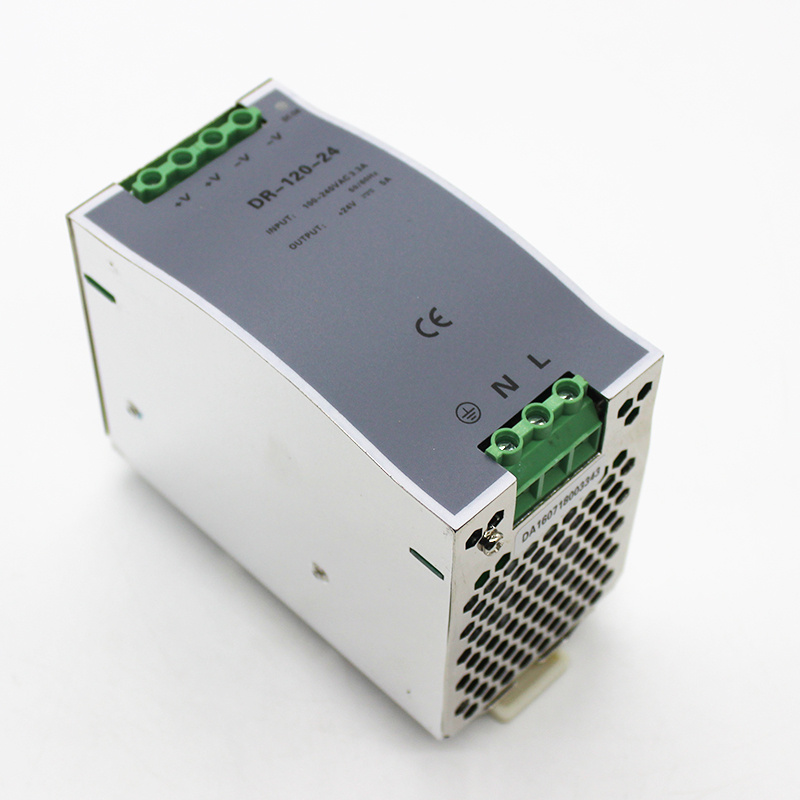

Yumo Dr-120 120W 24VDC DIN Rail Switching Power Supply
| Price: |
US $ 16.3-18/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
DR-120-24 |
| Input Voltage: |
85-265VAC |
| Input Current: |
2.6A/115VAC 1.6A/230VAC |
| Output Voltage: |
24VDC |
| Output Current: |
5A |
| Efficiency: |
80%~85% |
| Type: |
DIN Rail Switching Power Supply |
| Over Voltage: |
15~16.5V |
| Overload: |
105~150% Rated Output Power |
| Power: |
120W |
| Application: |
Industrial Automation; Vending machine |
| Usage: |
Digital Products |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Brand: |
Yumo |
Product Description
DR-120 120W 24VDC Din rail switching power supply Features:For AC power supply input global
Protection characteristics: short circuit/overload/pressure
Air cooling
Can be installed DIN standards guide TS-35/7.5 or 15
Has the boot display (light emitting diode (led)
100% full load and machine test
Working frequency 47-63KHz
One year warrantyParameters:| Model | DR-120-12 | DR-120-24 | DR-120-48 |
| output | Dc output voltage | 12V | 24V | 48V |
| Output voltage tolerance | ±2% | ±1% | ±1% |
| Rated output current | 10A | 5A | 2.5A |
| Output current range | 0-10A | 0-5A | 0-2.5A |
| Output power | 120W | 120W | 120W |
| Ripple and the noise | 80mVp-p | 80mVp-p | 100mVp-p |
| Dc voltage adjustable scope | 12-14V | 24-28V | 48-53V |
| Start, rise time | 500 ms, 70 ms / 230 VAC carrying 500 ms, 70 ms / 115 VAC carrying |
| Keep time | 36 ms / 230 VAC32ms / 115 VAC carrying |
| input | Input voltage range | 88~132 VAC/176~264VAC47~63 Hz;The switch choice 248~370VDC |
| Exchange input current | 2.6 A/115 V 1.6A/ 230 V |
| efficiency | 80% | 84% | 85% |
| Impulse current | Cold start current 20A/115V 40A/230V |
| Leakage current | <3.5mA/240VAC |
| Protection characteristics | The switch choice | 105%~150% |
| Protection way: constant current limiting automatic recovery |
| Overvoltage protection | 120%~135% |
| Protection way: cut output, restart |
| High temperature protection | 85ºC±5ºC(TSW1) | 90ºC±5ºC(TSW1) | 90ºC±5ºC(TSW1) |
| Protection way: cut output, temperature down automatically restored |
| environment | Working temperature, humidity | -10ºC~+60ºC;20%~90 %RH |
| Keep temperature, humidity | -20ºC~+85ºC;10%~95 %RH |
| Vibrate resistance | 10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis |
| security | Compression sex | 3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC |
| Insulation resistance | Between the input and output, the input and output, and ground: 100 M / 500 VDC Ohms |
| standard | Safety standards | UL508,UL60950-1,TUV EN60950-1 |
| EMC standard | EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2) |
| other | weight | 0.79Kg |
| packaging | 20pcs/16.5Kg/1.1CUFT |
| note | 1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ºC conditions measuring income value. |
| 2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement. |
| 3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate. |
| 4. The power to consider as a device installed in final equipment, this equipment must be to make sure it's EMC index. |
