| Prod Model: |
DRP-240-24 |
| Input Voltage: |
85-265VAC |
| Input Current: |
3.5A/115V 1.8A/230V |
| Output Voltage: |
24VDC |
| Output Current: |
10A |
| Efficiency: |
84% |
| Type: |
DIN Rail Switching Power Supply |
| Over Voltage: |
15~16.5V |
| Overovltage Protectio: |
30-36for 24V 50-60 for 48V |
| Power: |
240W |
| Application: |
Industrial Automation; Vending machine |
| Usage: |
Digital Products |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Brand: |
Yumo |

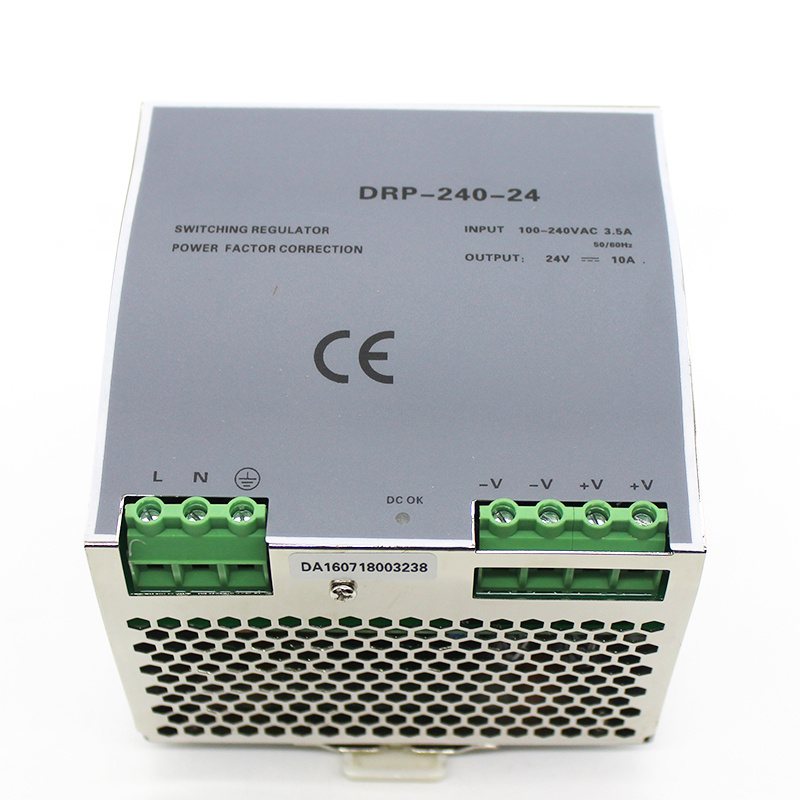

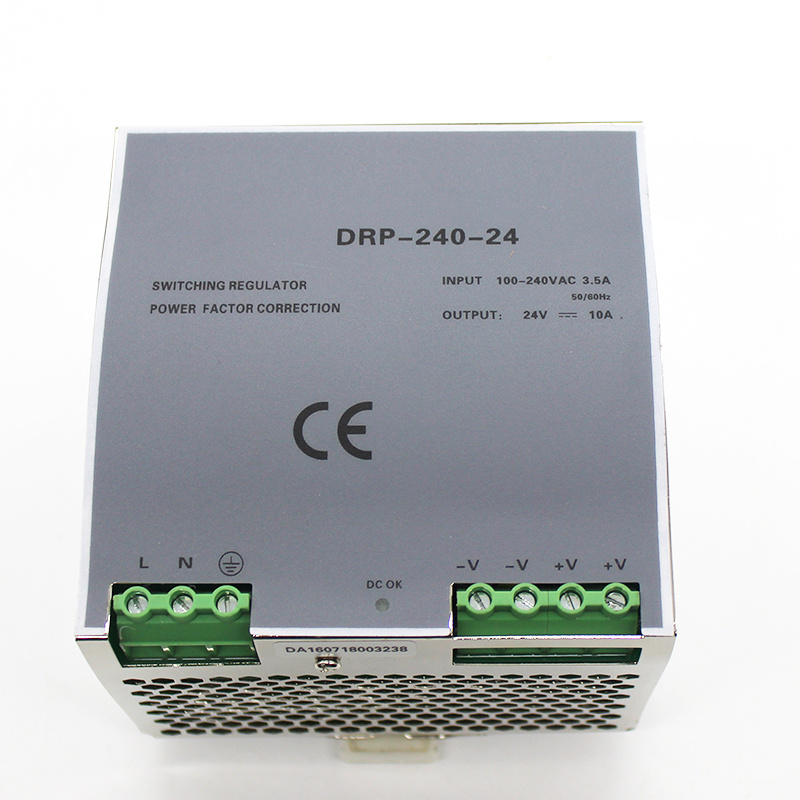

Product Description
DRP-240 240w smps Din rail type switching power supply Features:1.Power tools series:Electric saw,Drilling machine,Ginder,Sand blast Machine,Puching Machine,Weeding Machine,Air Compressor etc.
2.Office series:Computer,Printer,LCD Monitor,Scanning Machine etc.
3.Household Appliance series:Dust Collector,Fan Lamp or LED,Sewing Machine etc.
4.Kitchen Appliance series:Microwave Oven,Fridge,Freezr,Coffemarker etc.
5.Industrial Equipment series:Shipping,Vehicle,Metalhalide lamp,Solor system,Wind power generation etc.
6.Electric filed series:TV,VCRS,Radio ect.
Parameters:| MODEL | | DR-240-12 | DR-240-24 | DR-240-48 |
| Output | DC Voltage | 12V | 24V | 48V |
| Rated current | 20A | 10A | 5A |
| Current range | 0-20A | 0-10A | 0-5A |
| DC power | 240W | 240W | 240W |
| Voltage ADJ.range | 21.6~26.4V | 21.6~26.4V | 43.2~52.8V |
| Voltage tolerance | ±1% | ±1% | ±1% |
| Ripple and noise | 80mVp-p | 80mVp-p | 150mVp-p |
| Intet stability | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±1% | ±1% |
| Intput | AC voltage range | 90~132VAC/170~264VAC 47~63Hz ; 240~370VDC |
| Current | 3.5A/115V 1.8A/230V |
| Effi ciency | 85% | 84% | 85% |
| AC Inrush current | Cold-start current 30A/115V 60A/230V |
| Leakage current | < 3.5mA/240VAC |
| Protection | Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery |
| Over voltage | 15~16.5V | 28~33V | 58~65V |
| |
| Safety | Setup,rise,hold up time | 1000ms,60ms,50ms/230V |
| Vibration | 10~500Hz,2G 10min,/1 cycle |
| Withstand voltage | Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc |
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ |
