| Prod Model: |
G18-3A10PCT |
| Housing: |
18mm |
| Range: |
10cm |
| Output: |
PNP.No+Nc |
| Working Voltage: |
10-30VDC |
| Protection Grade: |
IP54 |
| Housing Material: |
Plastic |
| Detecting Type: |
Diffuse |
| Detected Object: |
Transparent of Opaque Body |
| DC Control Output: |
200mA |
| DC/AC Response Time: |
<2ms |
| Type: |
Microwave Sensor Switch |
| Principle: |
Capacitive |
| Standard: |
Standard |
| Certification: |
CE |
| Wires: |
NPN.No+Nc |
Product Description
YUMO G18-3A10PCT Retroreflective type Photoelectric Sensor DC10-30V Photocell Sensor
Product Description:1. G: Photoelectric sensor
2. Sub code No. (18, 50, 76...)
3. Operating voltage(2: 90-250VAC; 3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)
9. Other photoelectric sensor models: G12, G13, G14, G15, G16, G17, G18, G23, G24, G25, G26, G28, G30, G33, G35, G36, G40, G44, G50, G54, G55, G64, G68, G70, G71, G72, G180, G74, G75, G76, G77, G78, G80, G85, G86, G90, G100, G110, G139, G56, G60, G63, G65, G57, E3F, E3JK and so on.
10. More details, please contact us.
Electrical Datasheet:| Diffuse type | Detection distance | 10cm |
| 10-30VDC | NPN | NO | G18-3A10NA |
| NC | G18-3A10NB |
| NO+NC | G18-3A10NC |
| PNP | NO | G18-3A10PA |
| NC | G18-3A10PB |
| NO+NC | G18-3A10PC |
| 90-250VAC | | NO | G18-2B10LA |
| | NC | G18-2B10LB |
| Retroreflective type | Detection distance | 2m |
| 10-30VDC | NPN | NO | G18-3B2NA |
| NC | G18-3B2NB |
| NO+NC | G18-3B2NC |
| PNP | NO | G18-3B2PA |
| NC | G18-3B2PB |
| NO+NC | G18-3B2PC |
| 90-250VAC | | NO | G18-2B2LA |
| | | NC | G18-2B2LB |
| Through beam | Detection distance | 5m |
| 10-30VDC | NPN | NO | G18-3C5NA |
| NC | G18-3C5NB |
| NO+NC | G18-3C5NC |
| PNP | NO | G18-3C5PA |
| NC | G18-3C5PB |
| NO+NC | G18-3C5PC |
| 90-250VAC | SCR Contro Hable silicon | NO | G18-2B5LA |
| | NC | G18-2B5LB |
| DC/SCR Control output | DC:200mA |
| DC/AC Consumption current | DC<15mA |
| DC/AC Response time | Dc<2ms |
| Directional angle | 3 . -10 . |
| Detected object | transparent or opaque body |
| Working environment temperature | 25~+55ºC |
| Shell material | Plastic or Metal |
| Protection grade | IP54~IP67 |

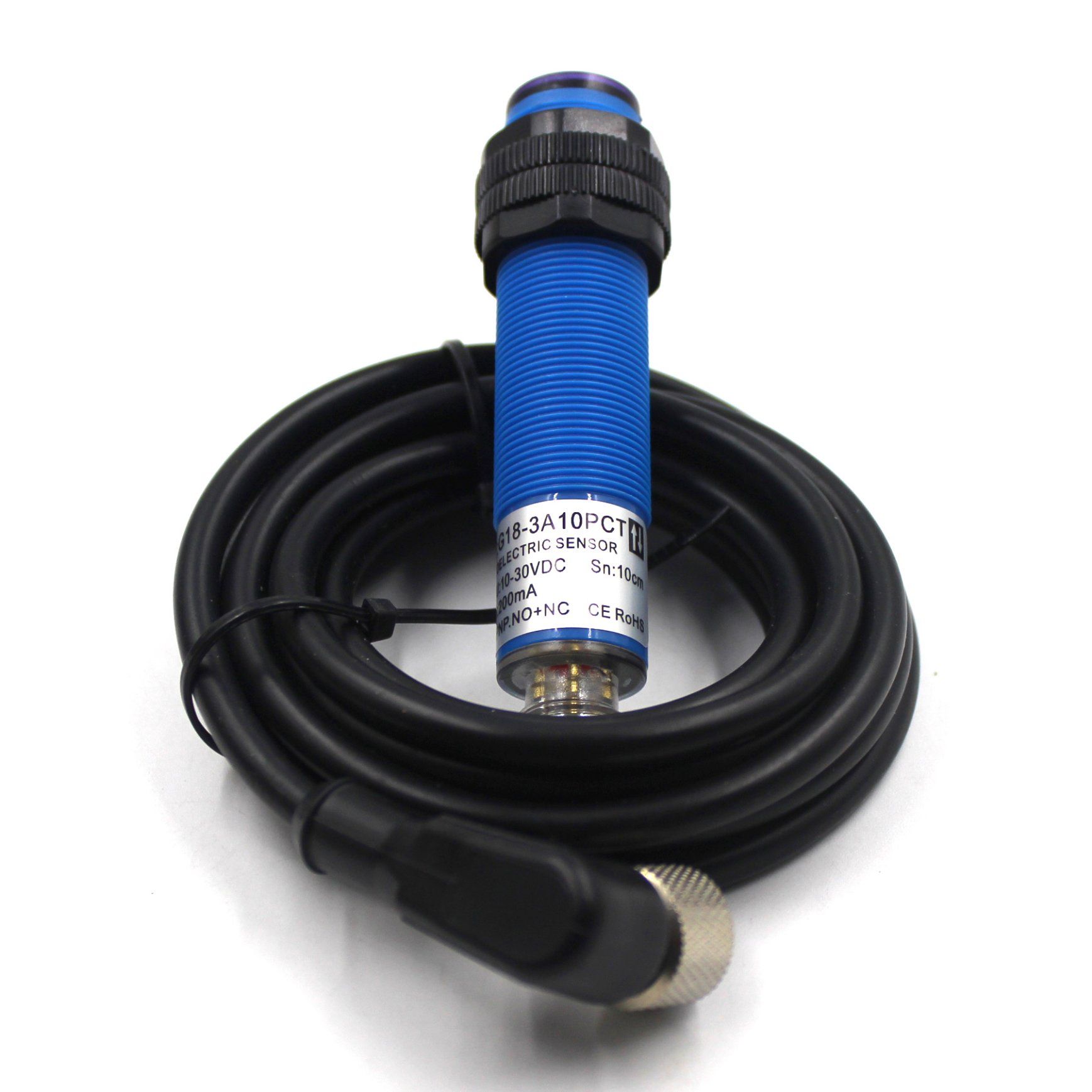

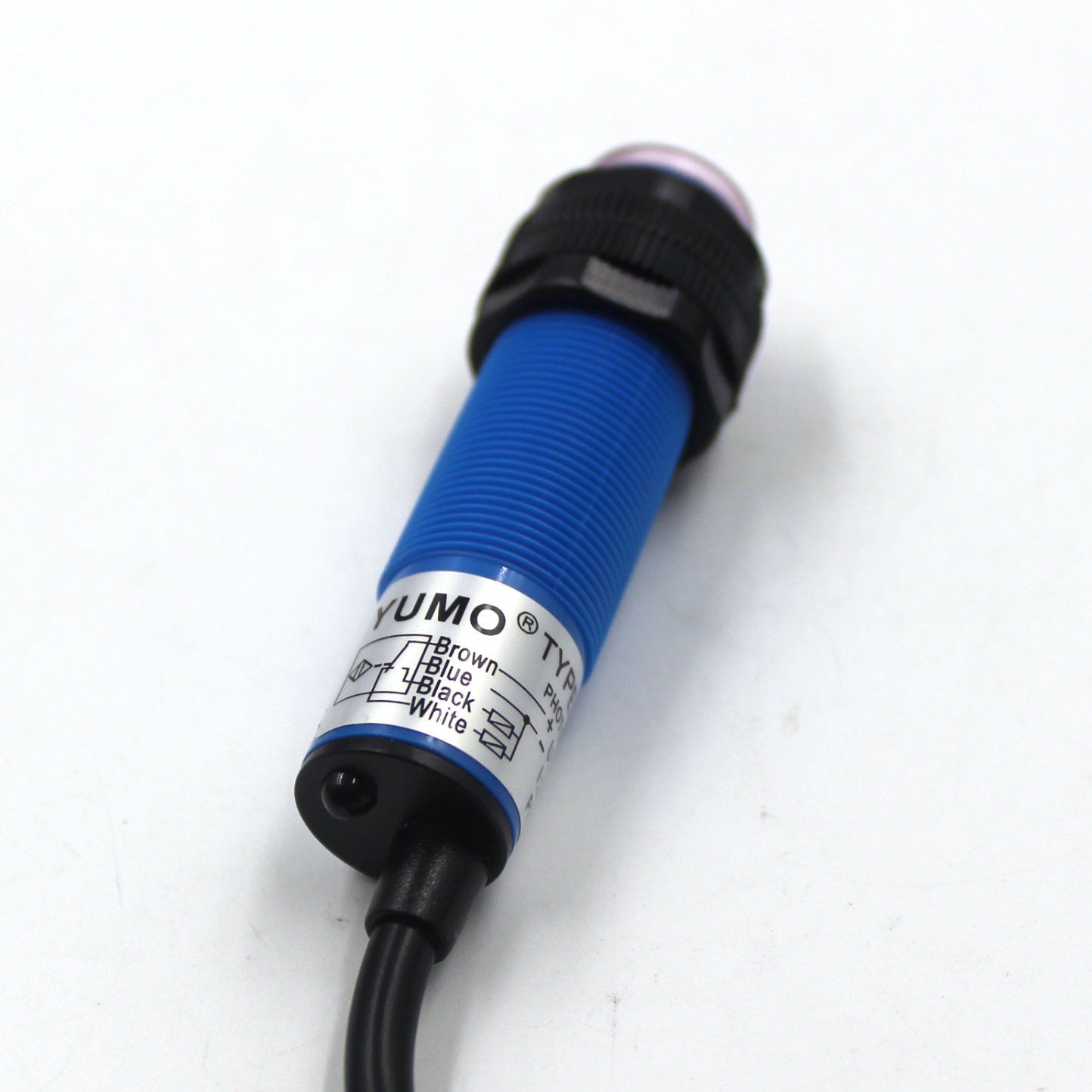

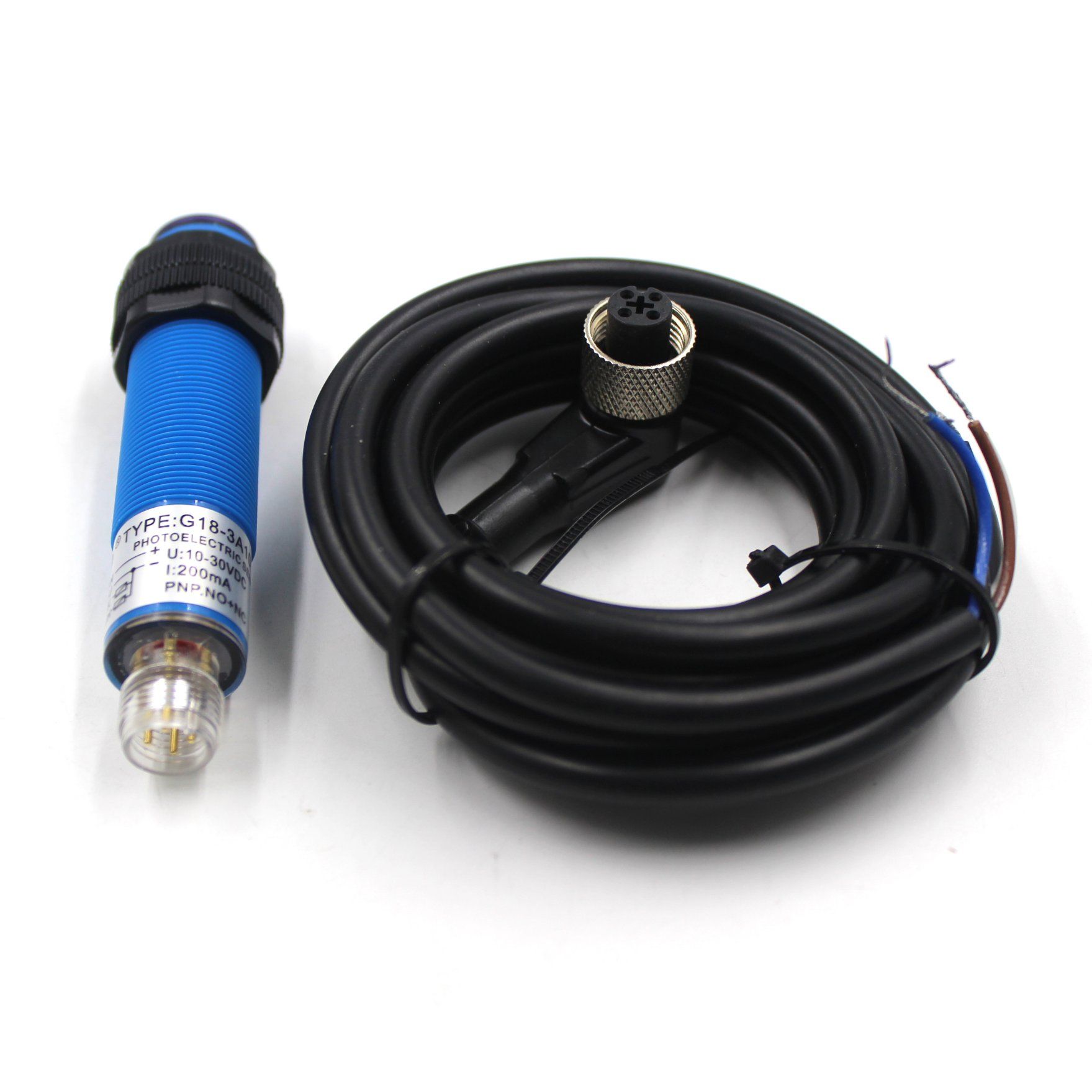

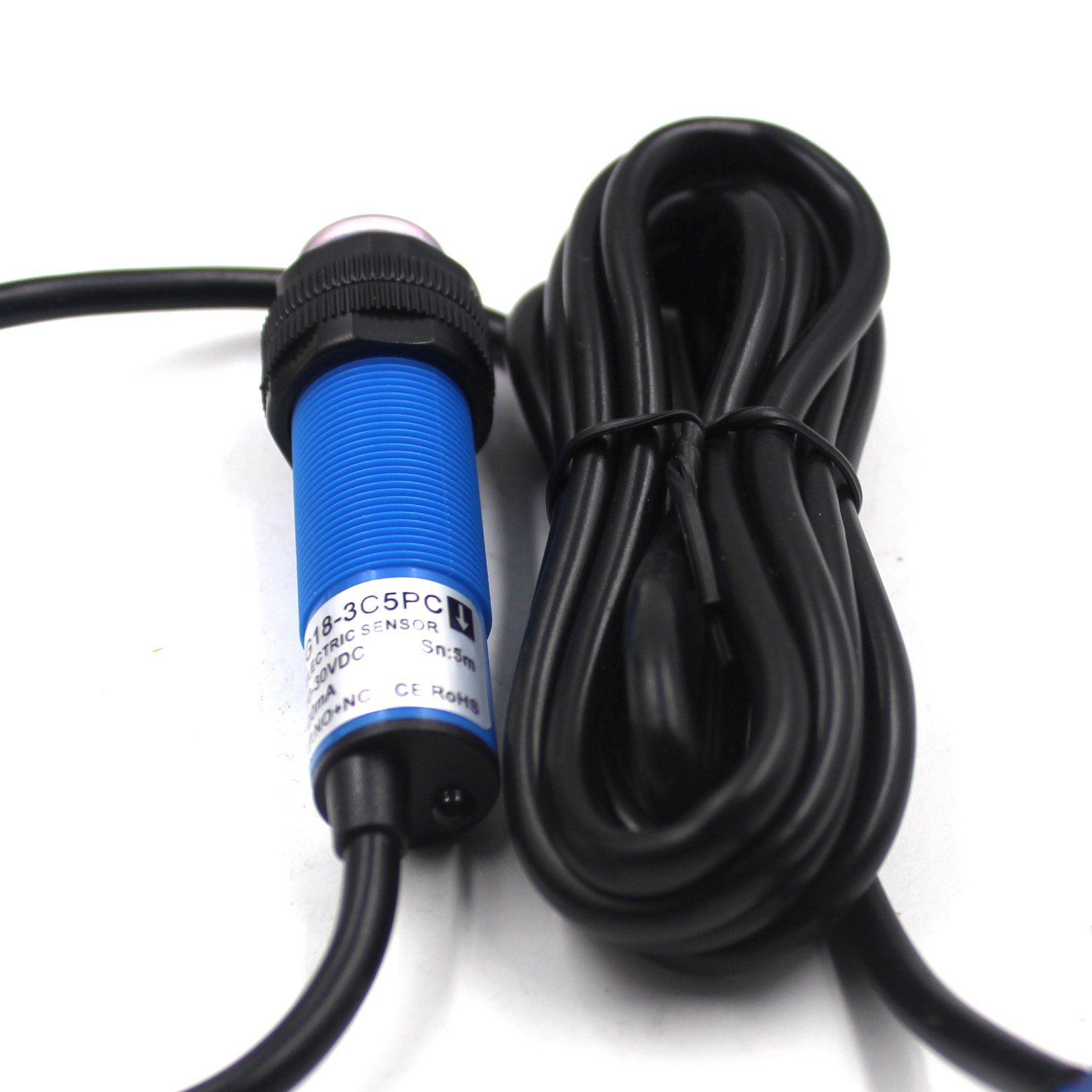

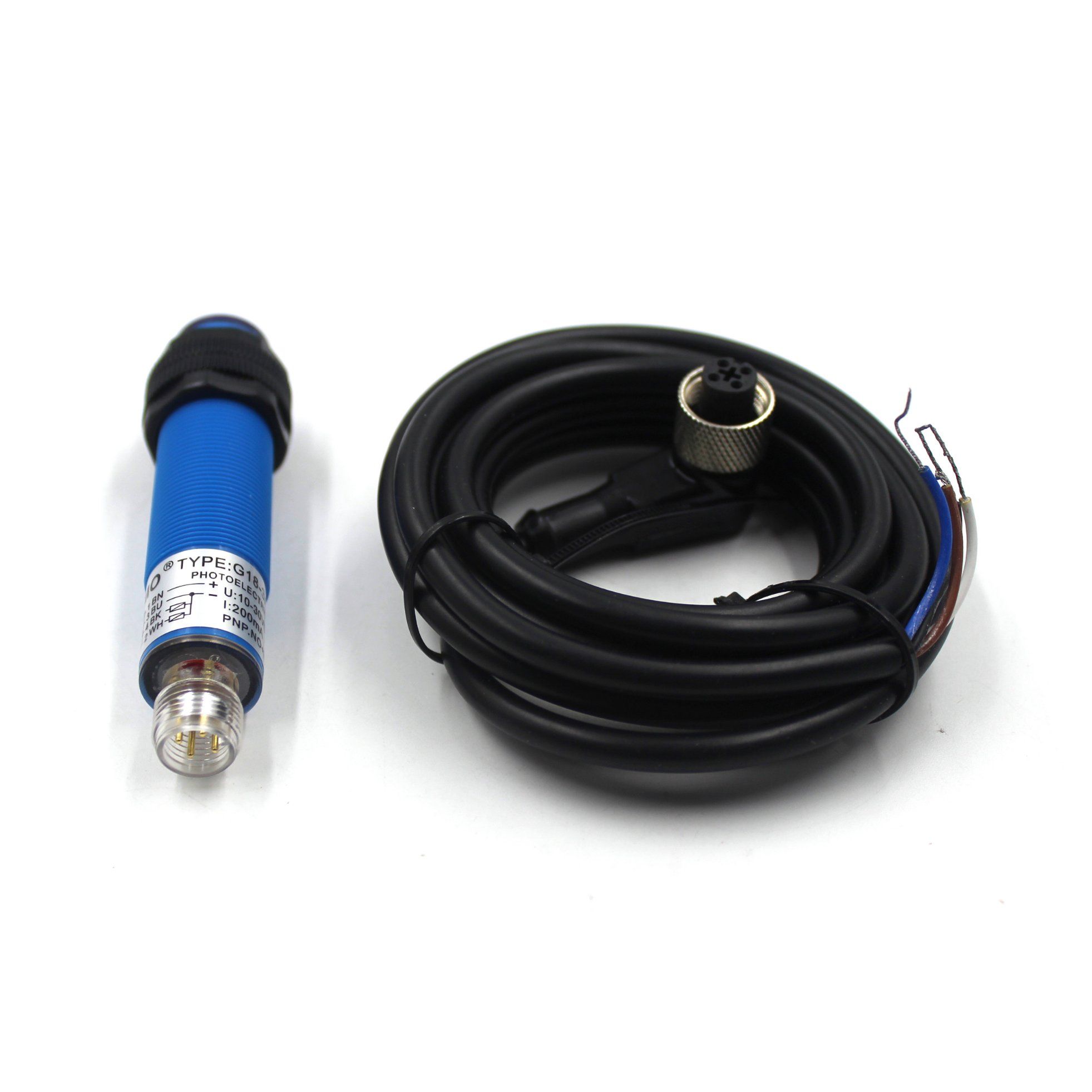

Product picture:
