| Prod Model: |
G50-3A30PC |
| Sensor: |
G50 Square |
| Housing: |
Square Type |
| Sensing Range: |
0-30cm |
| Signal: |
PNP |
| Operation Model: |
No+Nc |
| Input Voltage: |
10-30VDC |
| Protection Grade: |
IP65,IP67 |
| Housing Material: |
Copper |
| DC Control Output: |
200mA |
| DC/AC Response Time: |
<2ms |
| Type: |
Microwave Sensor Switch |
| Principle: |
Capacitive |
| Wires: |
PNP (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
Product Description
YUMO G50-3A30PC 10-30VDC Detection Infraded Square Photoelectric Switch SensorProduct Description:1. G: Photoelectric sensor
2. Sub code No. (18, 50, 76...)
3. Operating voltage(2: 90-250VAC; 3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)
9. Other photoelectric sensor models: G12, G13, G14, G15, G16, G17, G18, G23, G24, G25, G26, G28, G30, G33, G35, G36, G40, G44, G50, G54, G55, G64, G68, G70, G71, G72, G180, G74, G75, G76, G77, G78, G80, G85, G86, G90, G100, G110, G139, G56, G60, G63, G65, G57, E3F, E3JK and so on.
10. More details, please contact us.
Electrical Datasheet:
D
i
f
f
u
s
e
T
y
p
e
| | Detection distance | 30cm 50cm |
10-
10
VDC
|
NPN
| NO | G50-3A30NA |
NC | G50-3A30NB |
NO+NC | G50-3A30NC |
PNP
| NO | G50-3A30PA |
90~
250
VAC
| NC | G50-3A30PB |
NO+NC | G50-3A30PC |
SCR
ControHable
silicon | NO | |
NC | |
Relay output | G50-2A30JC |
R
e
t
r
o
r
e
f
l
i
c
t
i
v
e
| | Detection distance | 4m |
10-
10
VDC
|
NPN
| NO | G50-3B4NA |
NC | G50-3B4NB |
NO+NC | G50-3B4NC |
PNP
| NO | G50-3B4PA |
90~
250
VAC
| NC | G50-3B4PB |
NO+NC | G50-3B4PC |
SCR
ControHable
silicon | NO | |
NC | |
Relay output | G50-2B4JC |
T
r
o
u
g
h
b
e
a
m
| | Detection distance | 5m |
10-
10
VDC
|
NPN
| NO | G50-3C5NA |
NC | G50-3C5NB |
NO+NC | G50-3C5NC |
PNP
| NO | G50-3C5PA |
90~
250
VAC | NC | G50-3C5PB |
NO+NC | G50-3C5PC |
SCR
ControHable
silicon | NO | G50-2C5LA |
NC | |
Relay output | G50-2C5LC |
DC/SCR Control output | DC:200mA,AC:300mA relay:2A |
DC/AC Consumption current | DC<15mA,AC:<10mA |
| DC/AC Response time | Dc<2ms,AC<20ms |
| Directional angle | 3.-10. |
| Detected object | transparent or opaque body |
| Working envlrOnment temDerature | -25ºC~-55ºC |
| Intensity ofillumination ofworking environment | Sunlight underlOOOOLX incandescentlamp under 1000LX |
| Shell materia | Plastic |
| Protection grade | IP54 |

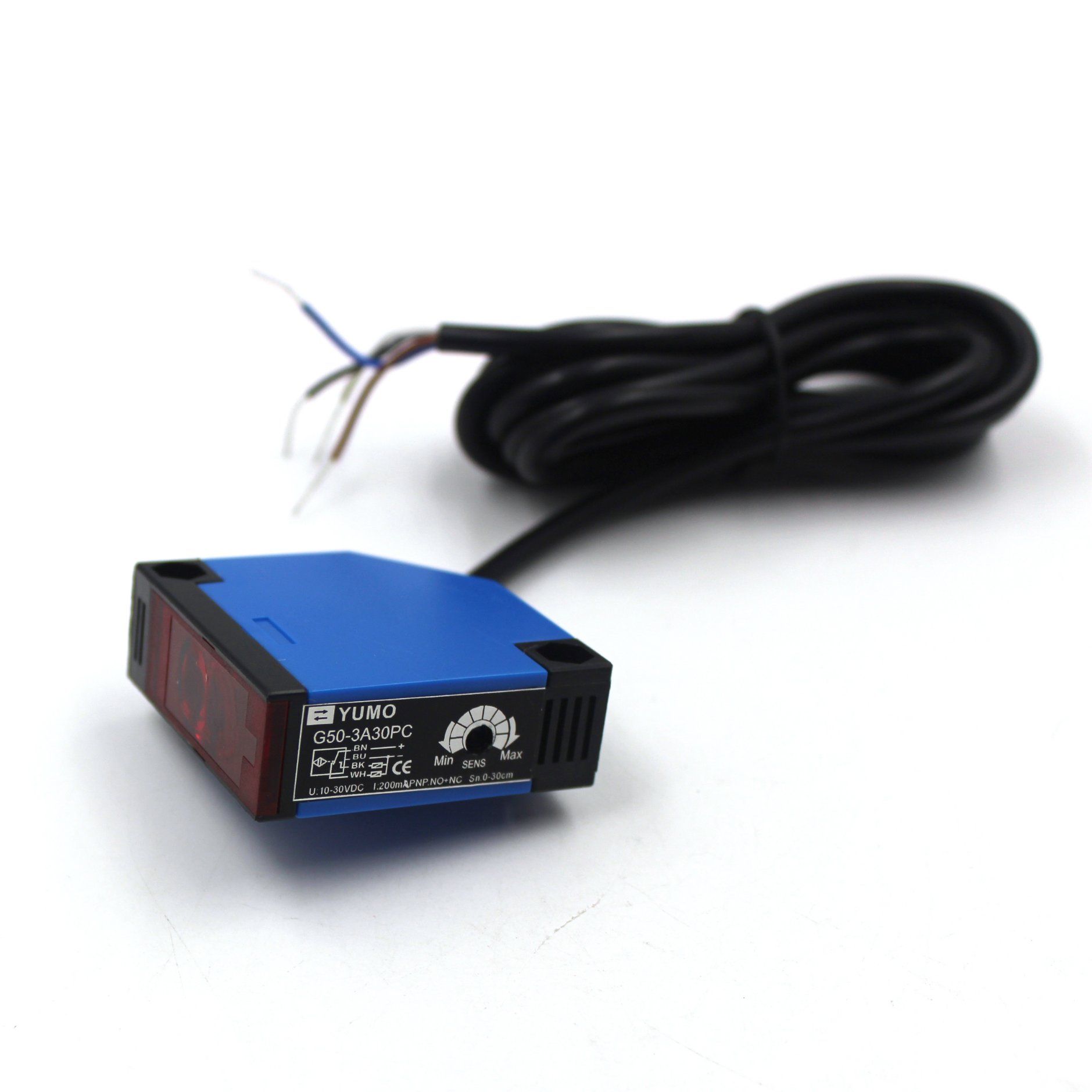

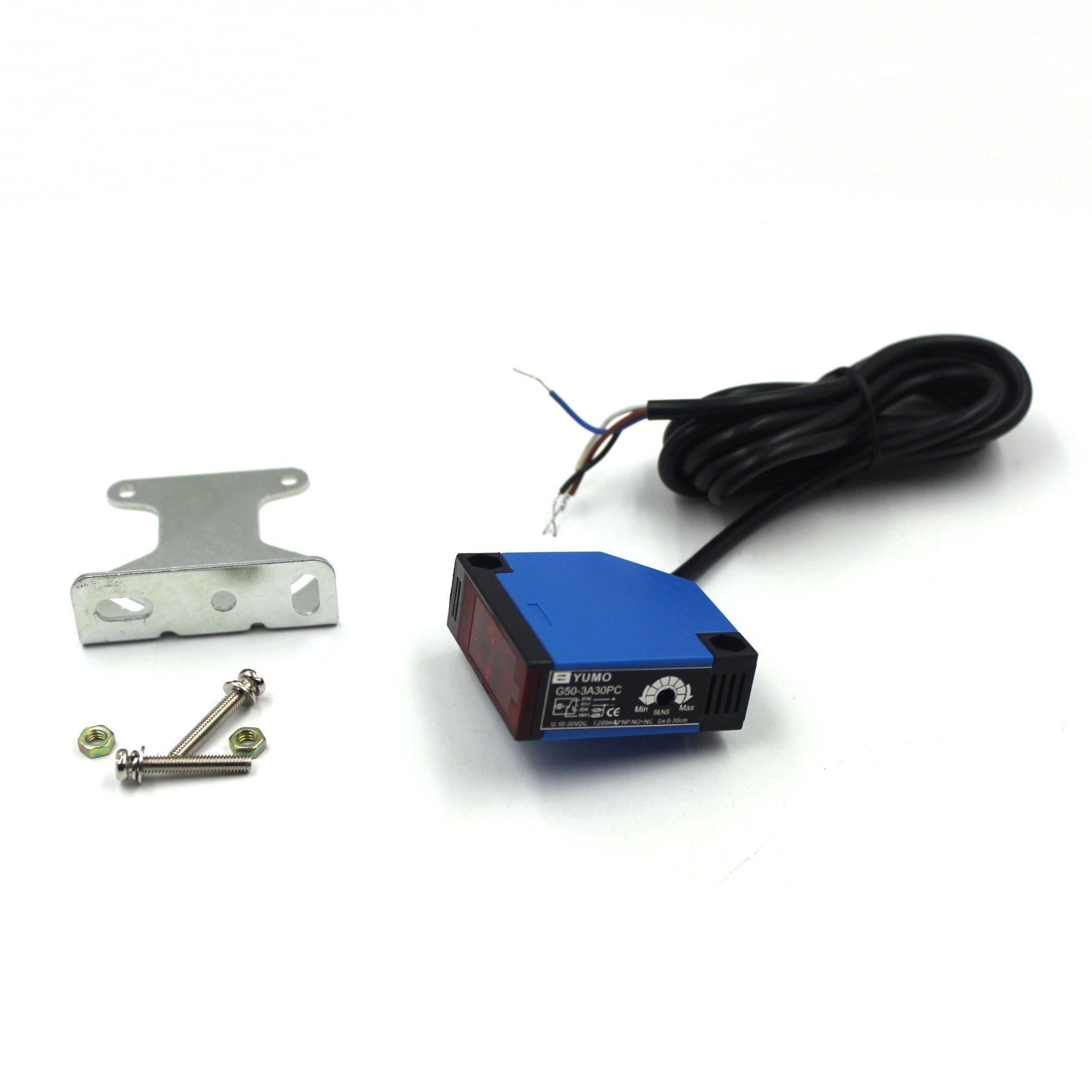

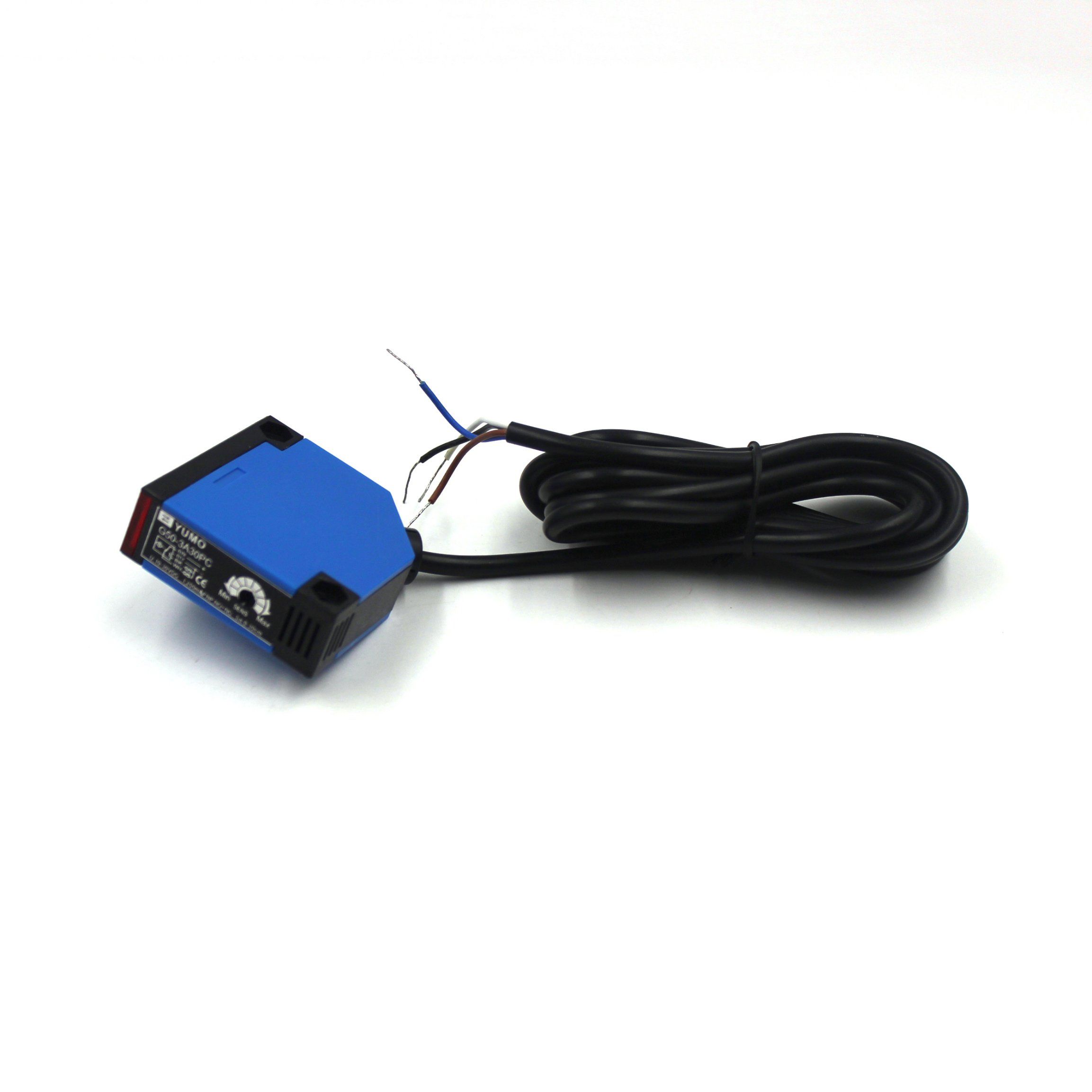

Product picture:
FAQ:
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
