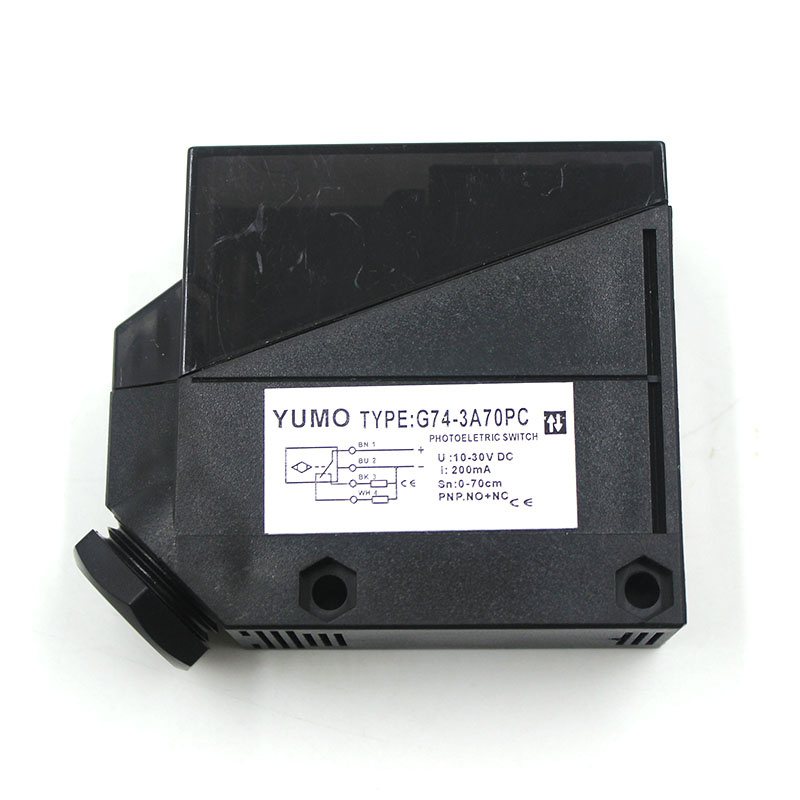

| Prod Model: |
G74-3A70PC |
| Sensor: |
G74 |
| Housing: |
75*80mm Square |
| Sensing Range: |
70cm |
| Signal: |
PNP |
| Operation Model: |
No+Nc |
| Input Voltage: |
6-36VDC |
| Protection Grade: |
IP54 |
| Housing Material: |
Plastic |
| Detecting Type: |
Diffuse |
| Detected Object: |
Transparent of Opaque Body |
| Type: |
Microwave Sensor Switch |
| Principle: |
Capacitive |
| Standard: |
Standard |
| Application: |
Warehouse |
| Certification: |
CE |
| Wires: |
PNP 4wires |
Product Description

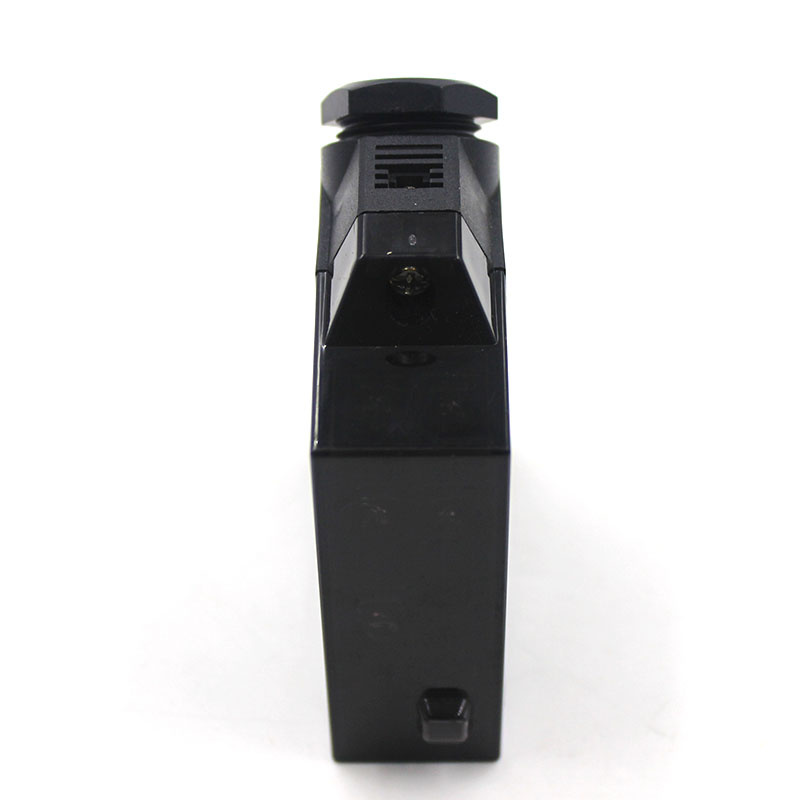

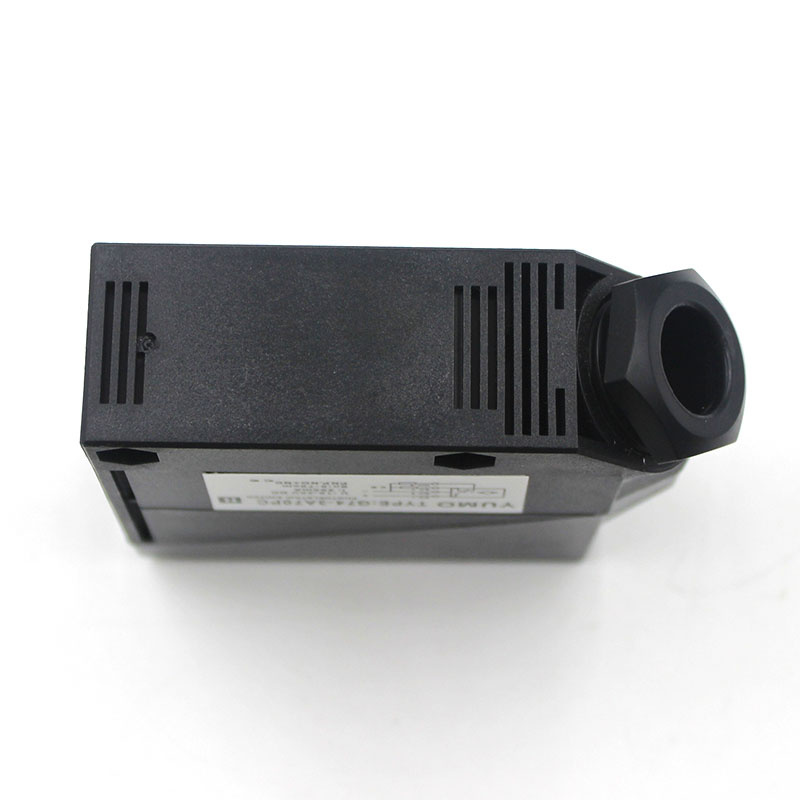

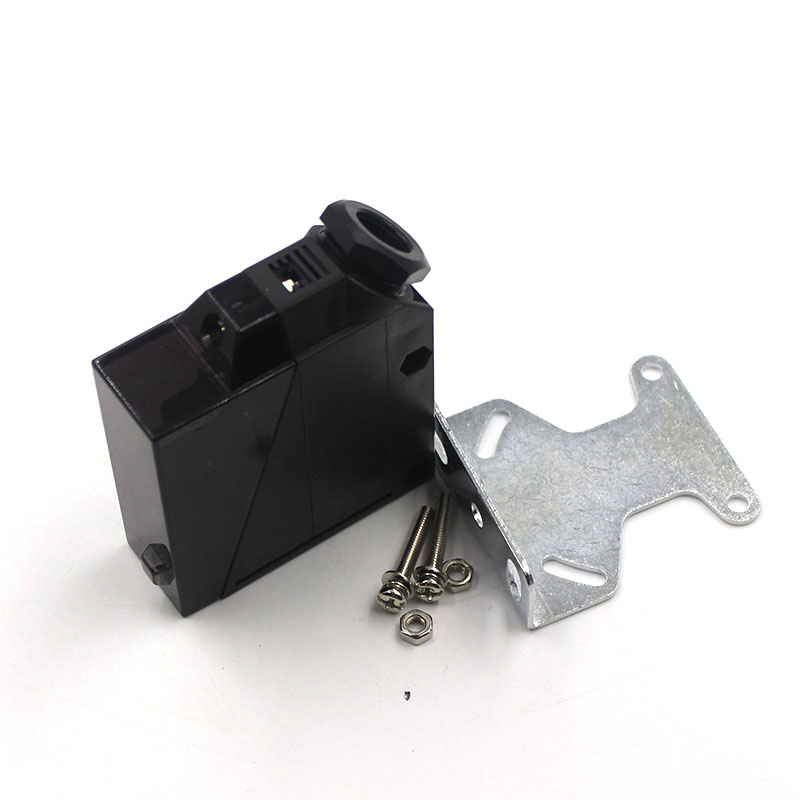

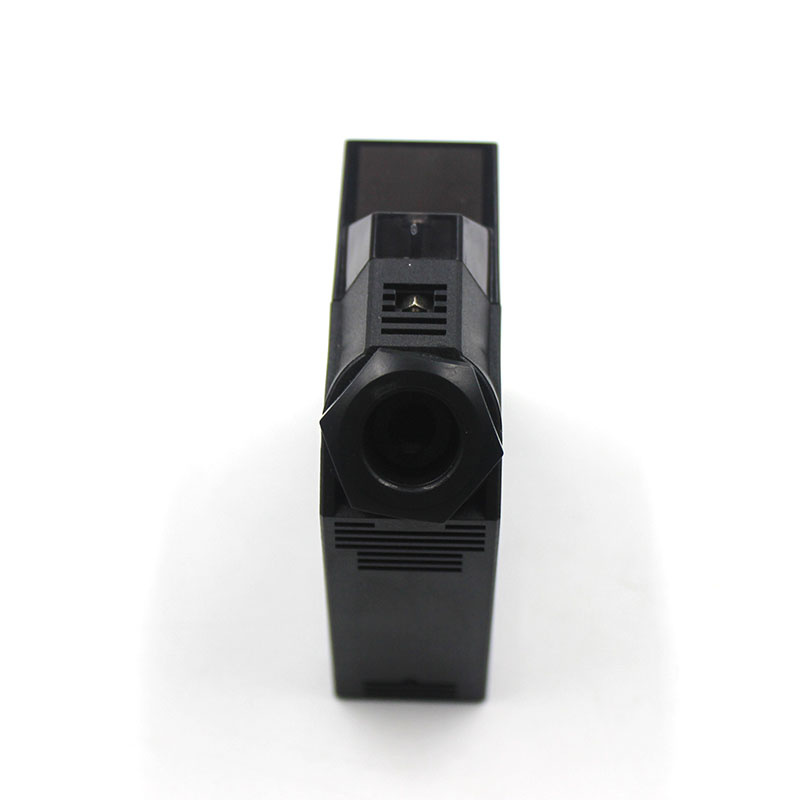

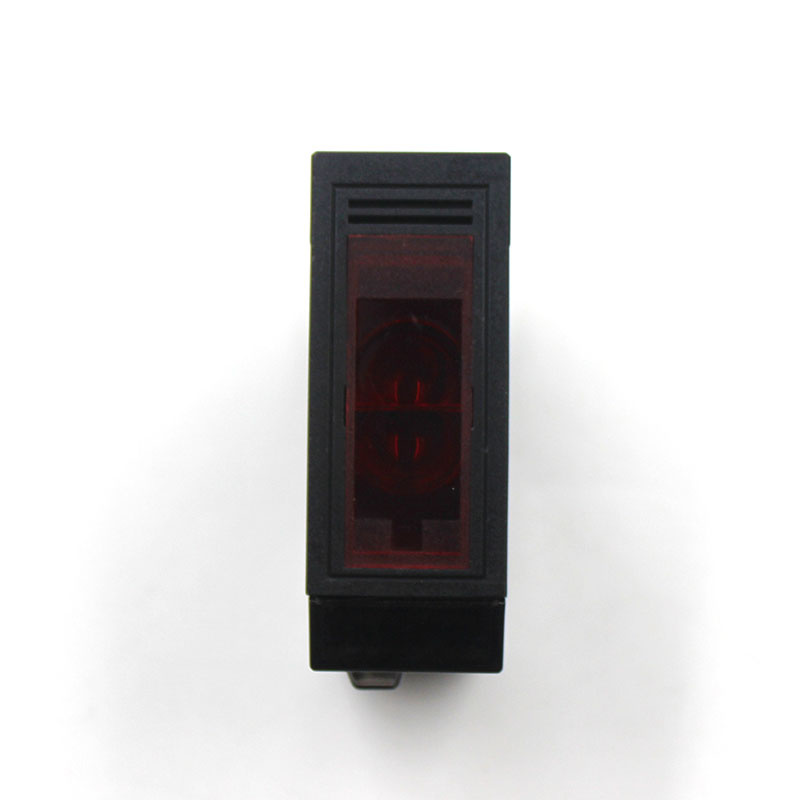

YUMO G74 70cm NO+NC PNP adjustbale diffuse photoelectric switchTechnique parameter:
1. G: Photoelectric sensor
2. Sub code No. (18, 50, 76...)
3. Operating voltage(2: 90-250VAC; 3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)
9. Other photoelectric sensor models: G12, G13, G14, G15, G16, G17, G18, G23, G24, G25, G26, G28, G30, G33, G35, G36, G40, G44, G50, G54, G55, G64, G68, G70, G71, G72, G180, G74, G75, G76, G77, G78, G80, G85, G86, G90, G100, G110, G139, G56, G60, G63, G65, G57, E3F, E3JK and so on.
10. More details, please contact us.
Electrical Datasheet| PHOTOELECTRIC SENSOR |
| Structural category | Photoelectric switch |
| Outward appearance code | G74 |
| Diffuse type | Detecting distance | 70cm |
| 6-24VDC | NPN | NO | G70-3A70NA |
| NC | G70-3A70NB |
| NO+NC | G70-3A70NC |
| PNP | NO | G70-3A70PA |
| NC | G70-3A70PB |
| NO+NC | G70-3A70PC |
| 90~250VAC | SRC Control label silicon | NO | G70-2A70LA |
| NC | |
| Relay output | G70-2A70JC |
| Retroreflictive | Detection distance | 4m |
| 6-24VDC | NPN | NO | G70-3B4NA |
| NC | G70-3B4NB |
| NO+NC | G70-3B4NC |
| PNP | NO | G70-3B4PA |
| NC | G70-3B4PB |
| NO+NC | G70-3B4PC |
| 90~250VAC | SRC Control label silicon | NO | G70-2B4LA |
| NC | |
| Relay output | G70-2B4JC |
| Trough beam | Detection distance | 8m |
| 6-24VDC | NPN | NO | G70-3C8NA |
| NC | G70-3C8NB |
| NO+NC | G70-3C8NC |
| PNP | NO | G70-3C8PA |
| NC | G70-3C8PB |
| NO+NC | G70-3C8PC |
| 90~250VAC | SRC Control label silicon | NO | G70-2C8LA |
| NC | |
| Relay output | G70-2C8JC |
| DC/SCR Control output | DC:200mA , AC:300mA |
| DC/AC Consumption current | DC:<15mA , AC:<10mA |
| DC/AC Response time | DC:<2ms , AC:<20ms |
| Directional angle | 3°-10° |
| Detected object | transparent of opaque body |
| Working environment temperature | -25ºC~55ºC |
| Intensity of illumination of working environment | |
| Shell material | Plastic |
| Protection grade | IEC standard IP54 |
