| Prod Model: |
APBB-22N |
| Useful: |
High Flat Push Button Switch with Light |
| Market: |
European,Africa,Middle East,North America |
| OEM: |
OEM Service |
| Protection Level: |
IP65, IP65 Push Button Switch |
| Voltage: |
220V |
| Connector: |
1nc or 1no,1nc+1no |
| Protection Classs: |
IP54,IP55,IP65 |
| Place An Original: |
Zhejiang ,China |
| Locking: |
Self-Locking |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Yumo |
Product Description
YUMO APBB-22N Emergency push button Instantaneous push button
Specification
1) Operational Voltage: ≤660V
2)Ambient temperature: -25 °C~ +55°C
3) Operational humidity: 45% to 90%
4) Power-frequency withstand voltage: 2500V AC, 1min
5) Contact resistance: ≤50mΩ
6) Mechanical life: Monentary 1000, 000, others:10, 000
7) Electric life: Monentary 100, 000 others:50000
8) Protection grade: IP40,IP67 with cover
9)Certificate: CCC, CE
APBB-22N, 1NO+1NC Momentary ON-OFF START STOP double Push Button Switch application:
1.Control contact
2.Control Panel
3.Mainframe computer switch
4.Motor
5.Machine tool
6.Relays
7.Electromagnetic starter
8.Various electrical
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
APBB-22N, 1NO+1NC Momentary ON-OFF START STOP double Push Button Switch technical parameters:
Product Name : Push Button Switch;
Model No. : APBB-22N;
Action Type : Momentary;
Contact Type : 1NO+1NC
Ui : 600V;Ith : 10A;
Rated Voltage & Current : AC 380V, 10A
Light Color : Yellow;
Light Voltage : AC 220V-240V;
Mounting Hole Diameter : 22mm / 0.85"
Fit Panel Thickness(Adjustable) : Max 5mm / 0.2";
Overall Size(Approx.) : 55 x 30 x 76mm / 2.2" x 1.2" x 3.0"(L*W*H);
Material : Plastic & Metal

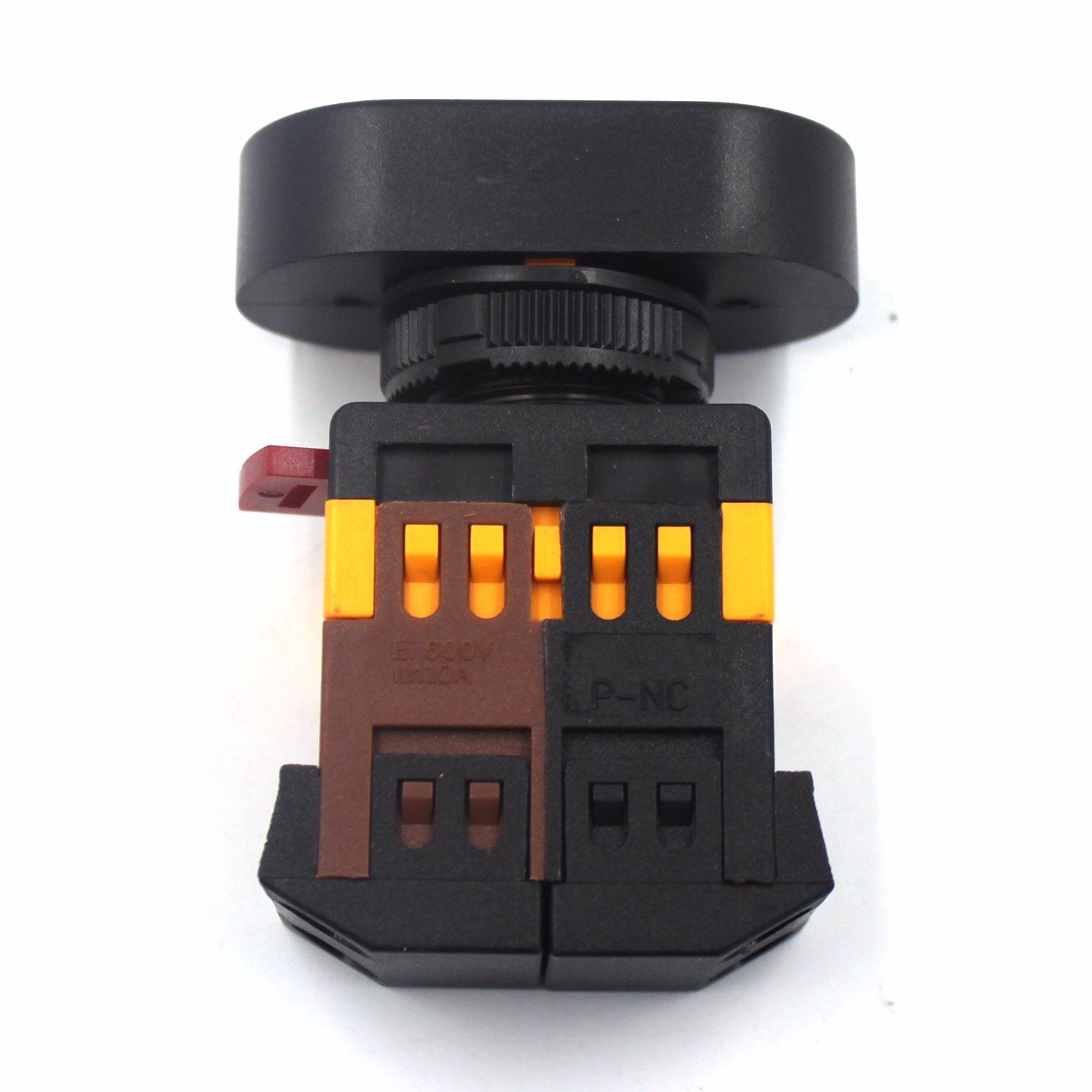

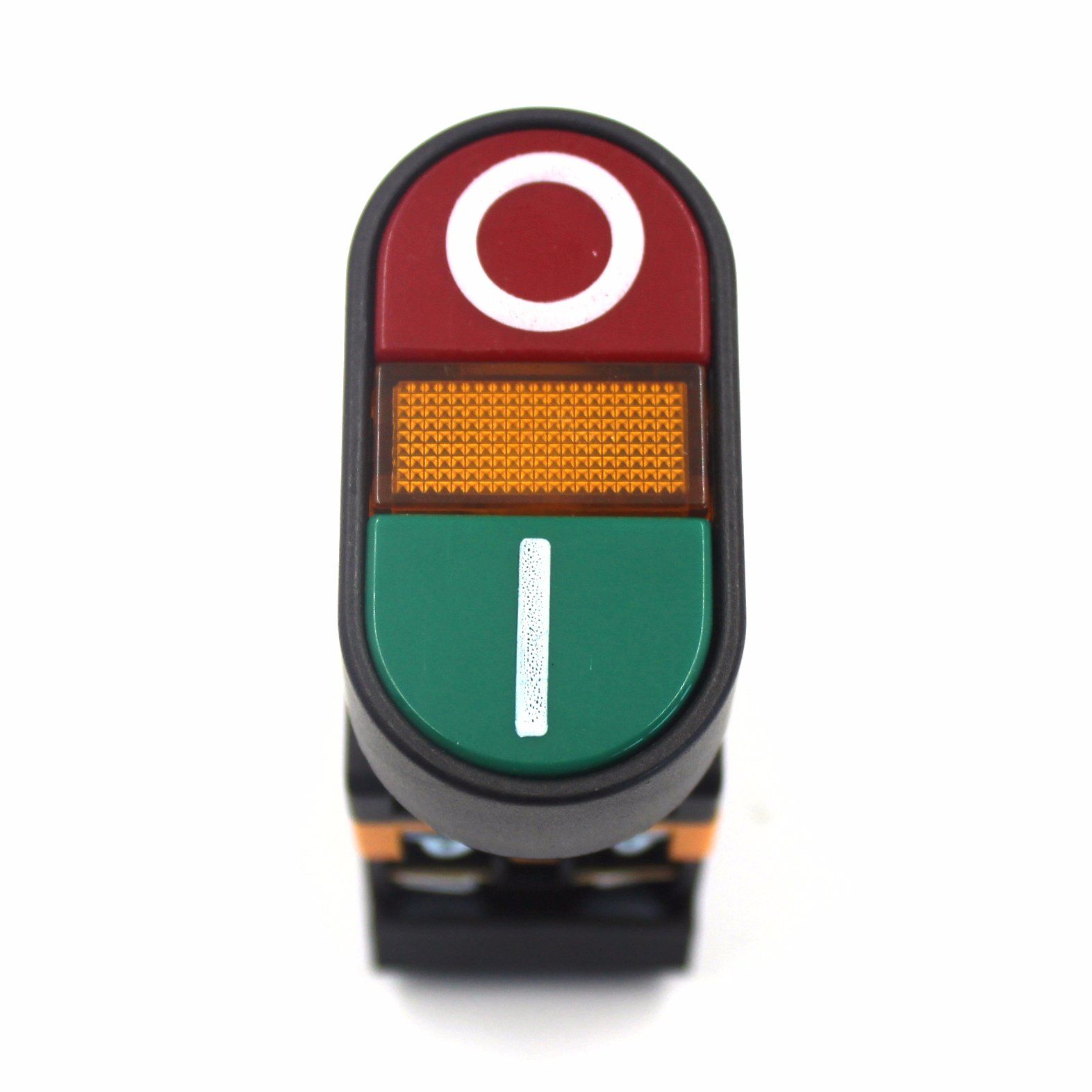

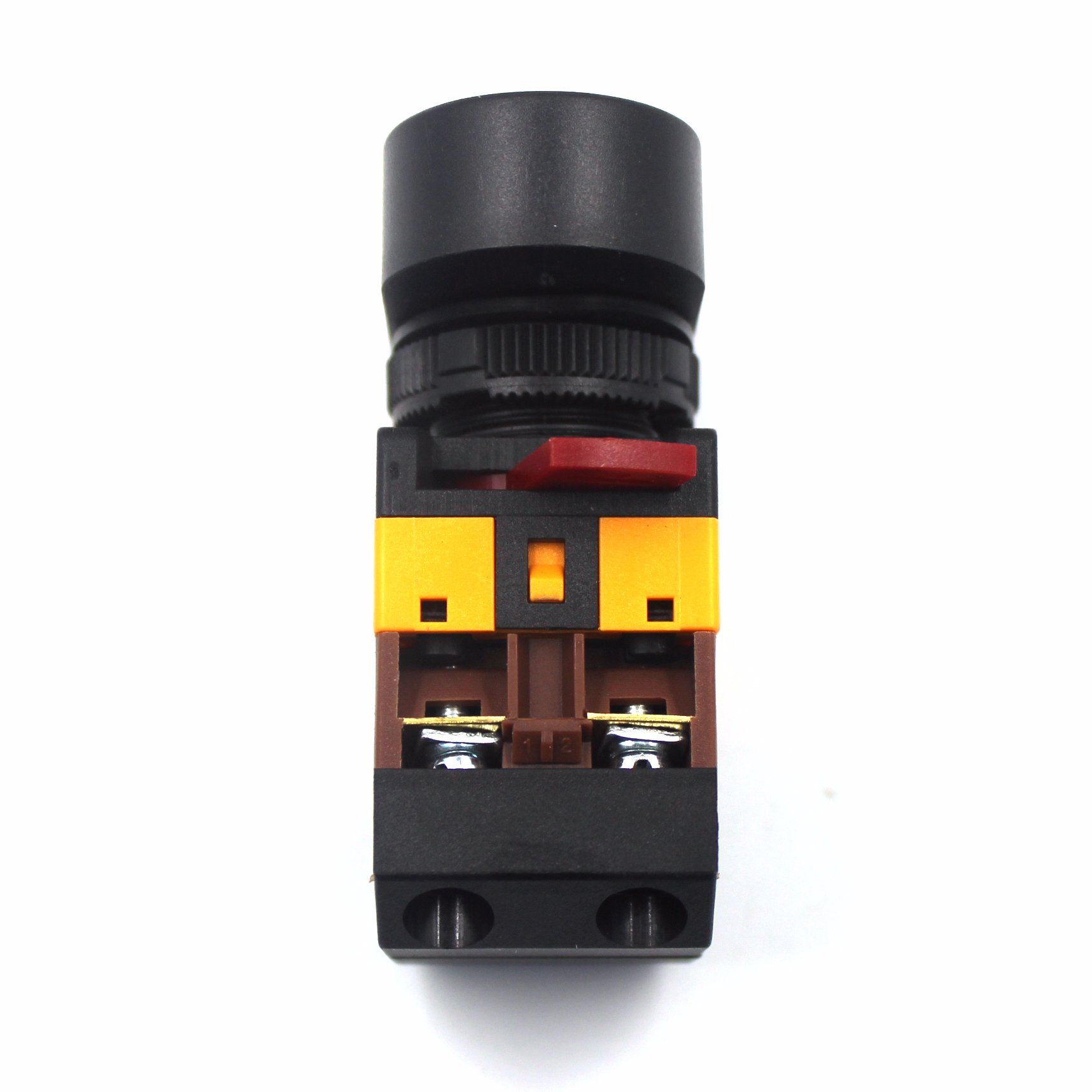

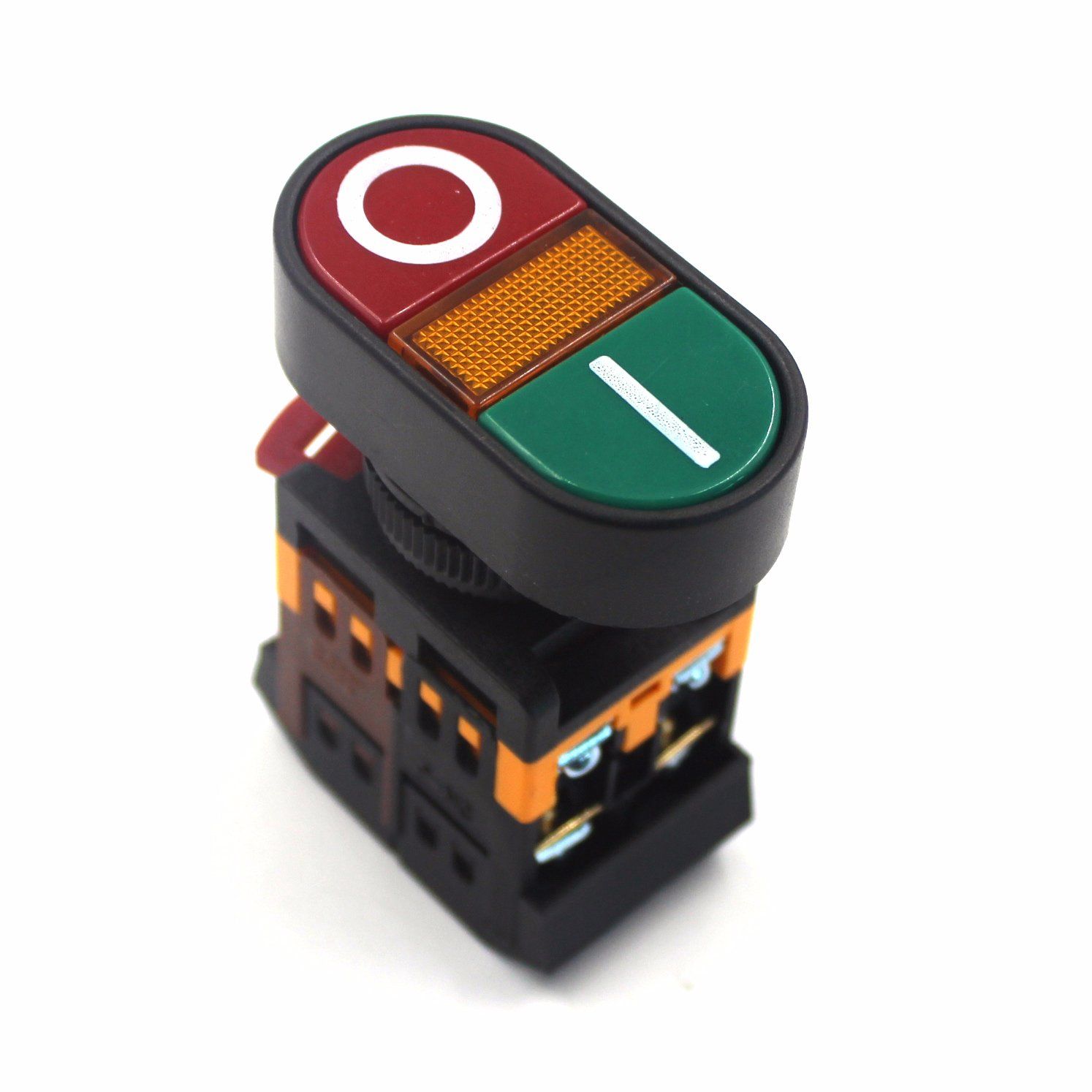

Product picture
