Yumo ISM6045 Manual Encoder Rotary Encoder Wheel Encoder Handwheel

Yumo ISM6045 Manual Encoder Rotary Encoder Wheel Encoder Handwheel
Price: US $ 12-20/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: ISM6045
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 5VDC or 12VDC
Number Of Pulses: 100p/R or 25p/R or 50p/R
Output Circuit: Line Driver
Diameter Size: 60mm
Rotary Number: Single Button
Usage: Digital Products
Standard: Nonstandard
Structure: Self-Locking
Operation: Open Type
Certification: CE
Condition: New

Product Description

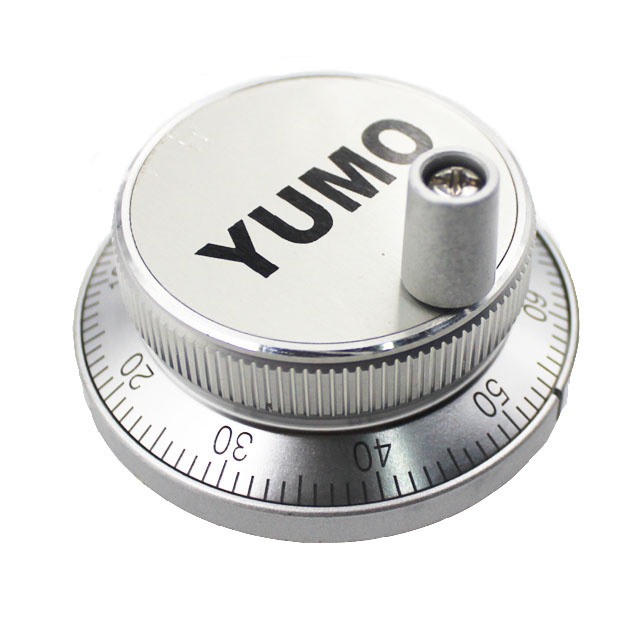

ISM6045 Manual Encoder (rotary encoder) Wheel encoder
Output wave: Square wave
Output signal: A, B
Response frequency: 0--20kHz
Supply voltage: 5V DC, 12V DC
Number of pulses: 100
Output circuit: Open collector NPN, push pull, line driver, voltage
Working life: MTBF>10000h
Weight: About 200g
Protection class: IP54

Place of Origin Zhejiang, China (Mainland)
Brand Name YUMO
Model Number ISM6045
Usage Speed Sensor
Theory Optical Sensor
Output Switching Transducer
Code ISM6045
Pulse 25, 50, 100P/R
Output circuit 5L, 5F, 12F



More detail please visit our website.
Trademark:YUMO
Model:ISM6045
Origin:China
Packing:Rugged Paper Carton
 Connection Table

Code123456
Line drive output+5V0VSigal ASigal A(-)Signal BSignal B(-)
Other output +5V0VSigal ASignal B--

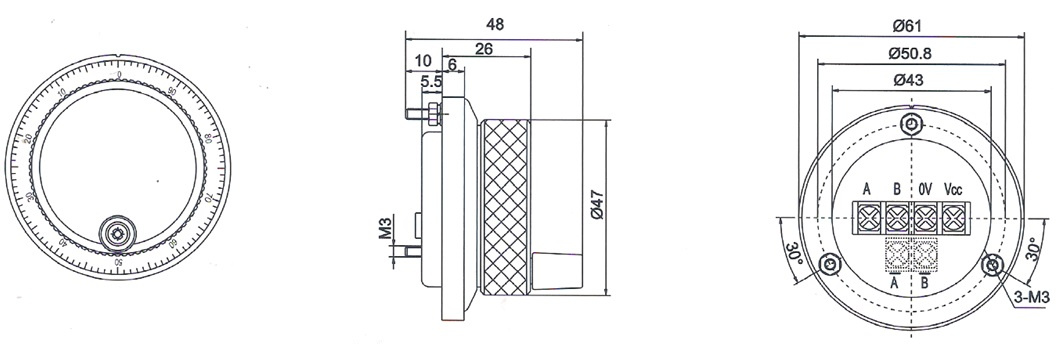

Dimensions(mm)
