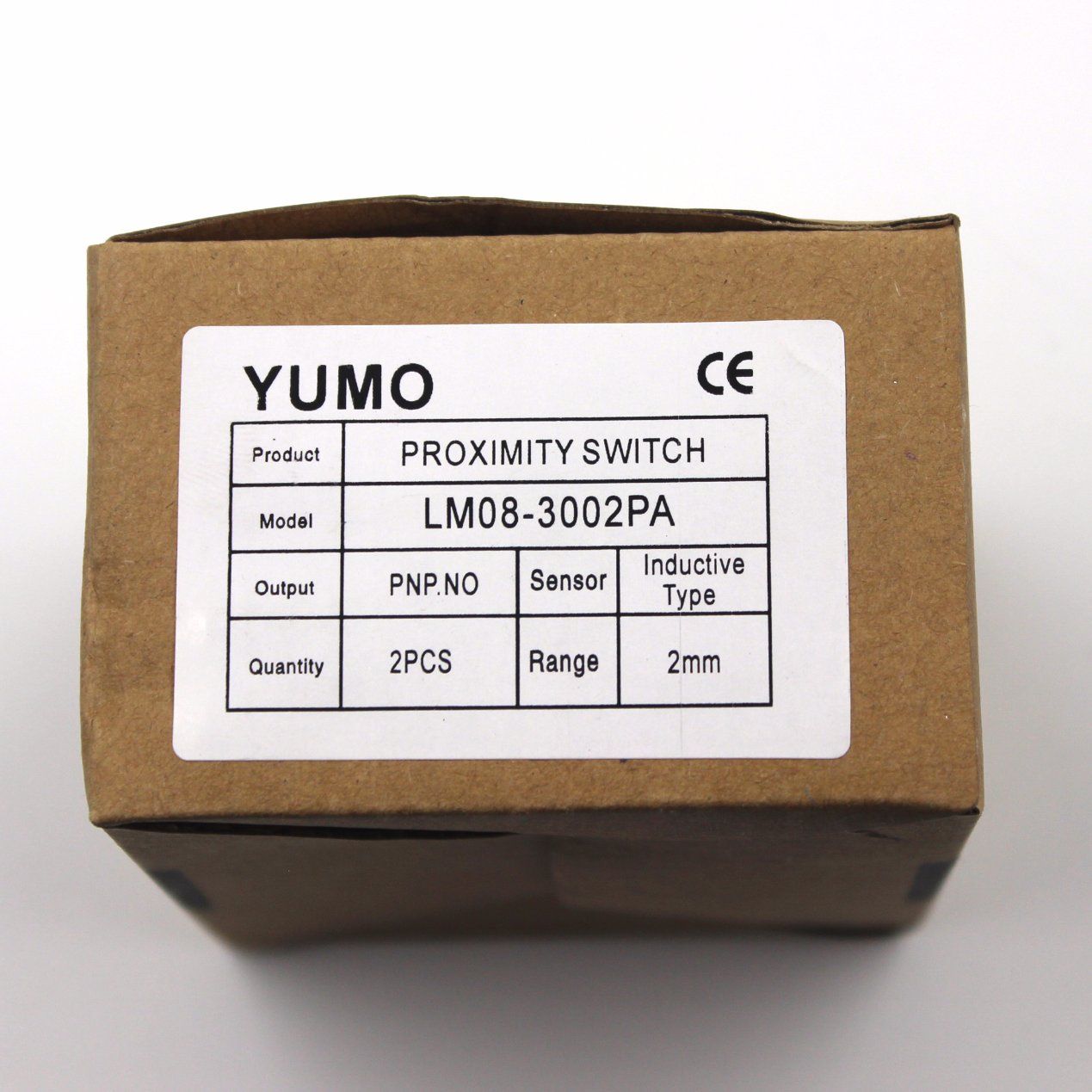

Yumo Lm08-3002PA Proximity Switch Optical Inductive Proximity Sensor Capacitive Sensor
| Price: |
US $ 2-6/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LM08-3002PA |
| Control Output: |
200mA |
| Output Voltage Drop DC/AC: |
DC<3V AC<10V |
| Standard Detected Object: |
100×100×1(A3 Iron) |
| Repeated Precision: |
0.5 |
| DC/AC Response Frequency: |
50Hz/10Hz |
| Insulation Resistance: |
≥50mΩ |
| Shell Material: |
ABS Resin |
| Protection Grade: |
IP67 |
| Detection Distance: |
2mm |
| Wires: |
Two-Wires |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Application: |
Industrial |
| Size: |
8mm |
Product Description
LM08-3002PA M8 Detection Distance 2mm Inductive Proximity Switch sensor
Cylinder diameter: 8mm,Thread: M8,Length of sensor: 36 mm (end to end)
Detect face colour: Black, Voltage: 5V,Output logic: Normally closed NPN,
Cable length: 70 cm,Detect distance: 4 mm minimum, object:35um copper
working temeparature: 90 °C
OVERALL DIMENSIONS |
|
| | DETECTION DISTANCE 1mm |
F
l
u
s
h |
DC
10-
30
VDC
AC
90-
250
VAC | NPN | NO | LM8-3001NAT |
| NC | LM8-3001NBT |
| NO+NC | |
| PNP | NO | LM8-3001PAT |
| NC | LM8-3001PBT |
| NO+NC | |
two wire
system | NO | LM8-3001LAT |
| NC | LM8-3001LBT |
SCR
Control-
lable
silicon | NO | |
| NC | |
| NO+NC | |
| Relay output | |
| | DETECTION DISTANCE 2mm |
F
l
u
s
h |
DC
10-
30
VDC
AC
90-
250
VAC | NPN | NO | LM8-3002NAT |
| NC | LM8-3001NBT |
| NO+NC | |
| PNP | NO | LM8-3002PAT |
| NC | LM8-3002PBT |
| NO+NC | |
two wire
system | NO | LM8-3002LAT |
| NC | LM8-3002LBT |
SCR
Control-
lable
silicon | NO | LM8-2002AT |
| NC | |
| NO+NC | |
| Relay output | |
Controloutput | DC | 150mA |
| SCR/ Relay | |
| Output voltagc dropDC/AC | DC (NPN PNP)Type 3V below,2 wire type:blow 3.9V,below AC 10V DC<3V,AC<10V |
| Consumption current | DC(NPN PNP)Type at DC 12V 8mA,at 24V 15mA,AC below 10mADC<15mA,AC<10mA |
| Standard detected object | 8X8X1(A3 iron) |
| Repeated precision | 0.01 |
| DC/AC | 500Hz/IOHz |
| Working environment temperature | -25°C~+70°C |
| Insulation resistance | 50MΩ |
| Shell material | Metal |
| Protection grade | IP67 |
| Altemative model at home and abroad | E2E-XIR5-M1
|
