Yumo Lm18-3010la M18mm Inductive Proximity Switch Sensor Ozone Sensor
| Price: |
US $ 2-5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LM18-3010LA |
| Control Output: |
200mA |
| Output Voltage Drop DC/AC: |
DC<3V AC<10V |
| Standard Detected Object: |
100×100×1(A3 Iron) |
| Repeated Precision: |
0.5 |
| DC/AC Response Frequency: |
50Hz/10Hz |
| Insulation Resistance: |
≥50mΩ |
| Shell Material: |
ABS Resin |
| Protection Grade: |
IP67 |
| Detection Distance: |
10mm |
| Output Type: |
NPN/PNP.No |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Wires: |
Controllable Silicon |
| Application: |
Industrial |
| Size: |
18mm |
Product Description

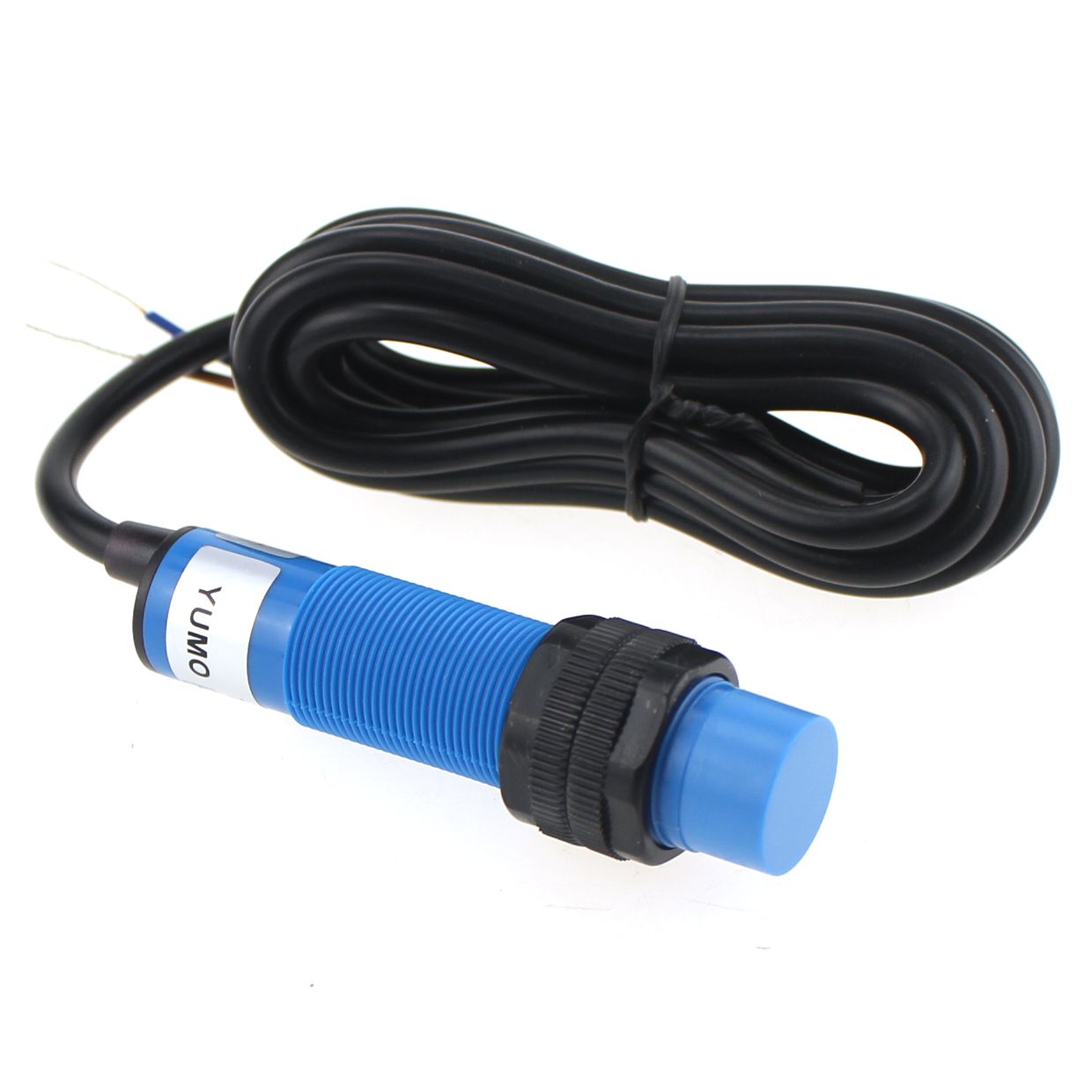

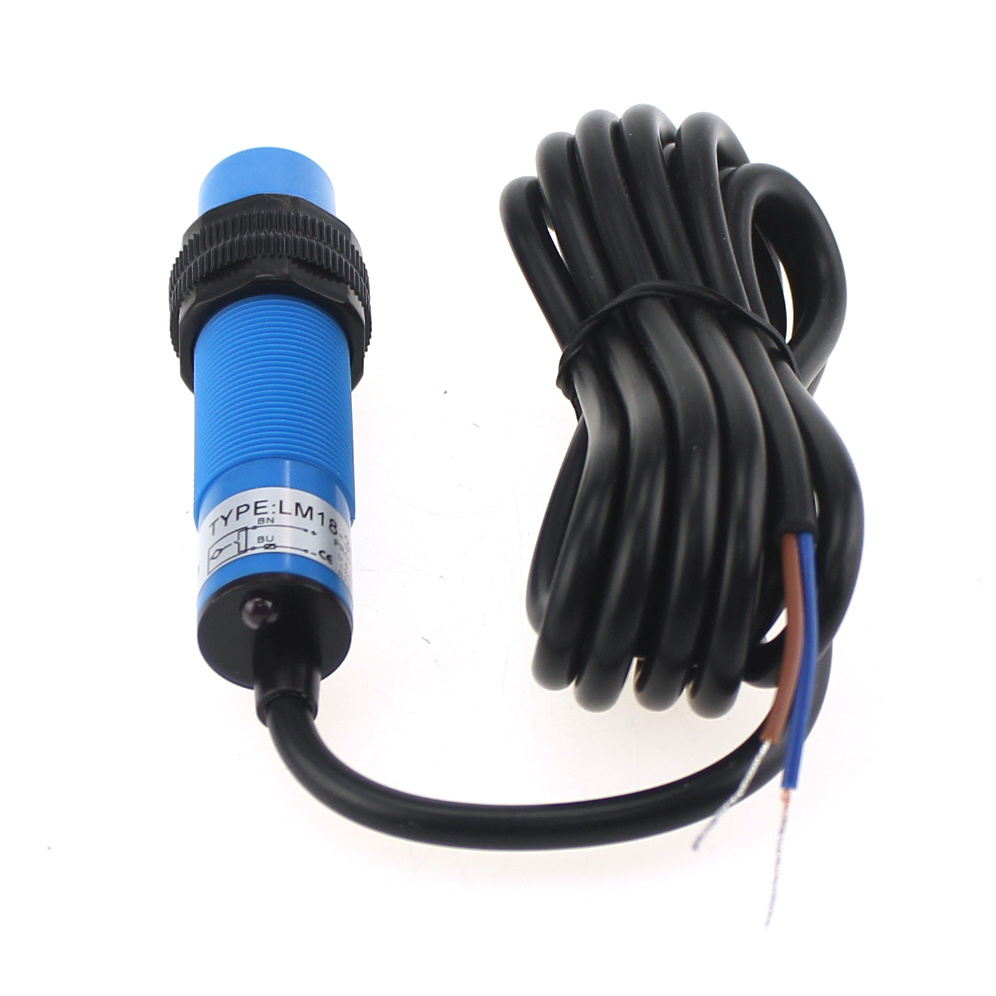

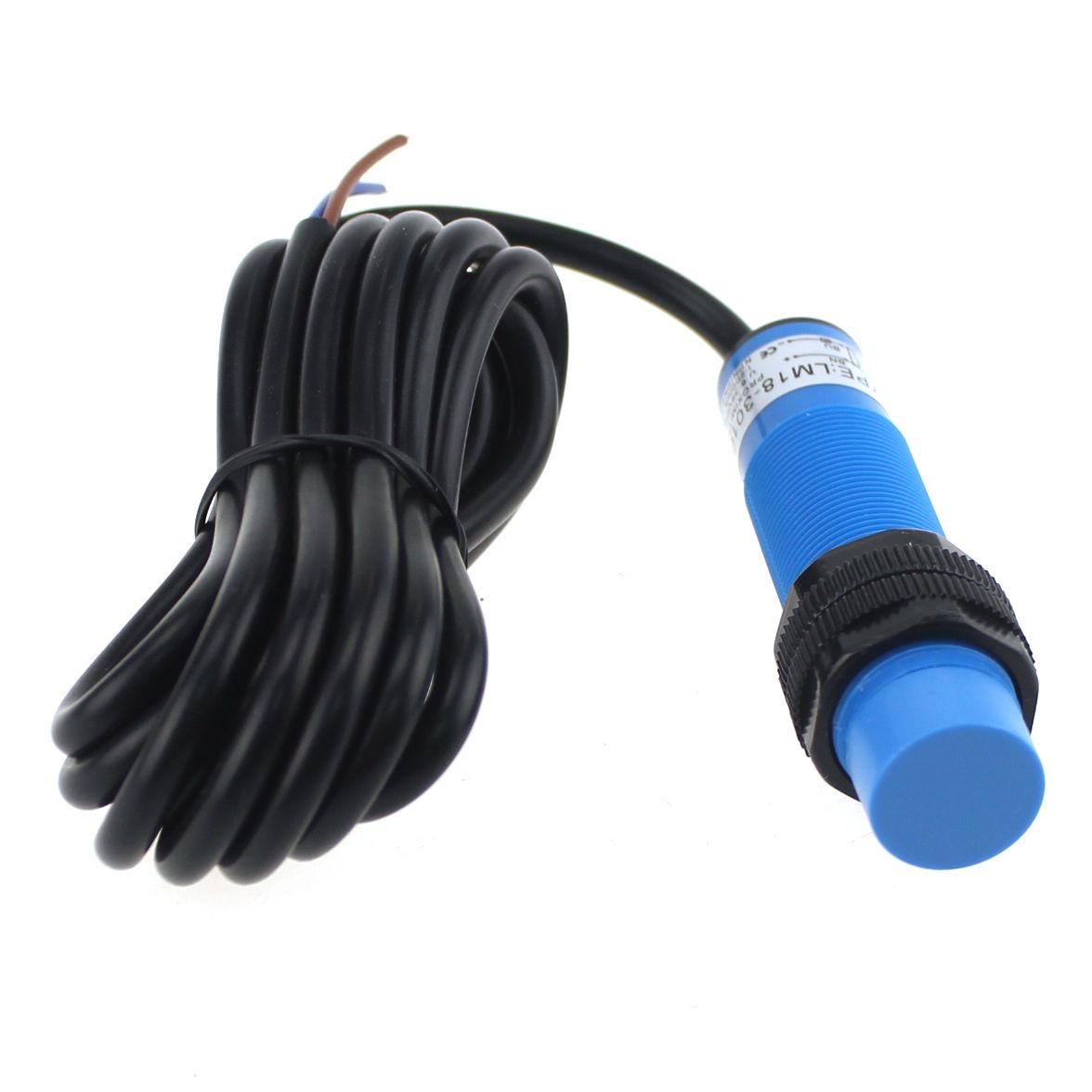

YUMO LM18-3010LA M18mm inductive proximity switch sensor ozone sensor
Inductive proximity switch is composed of three parts: oscillator, switch circuit and magnified output circuit. The oscillator will generate an alternating electric field. When the metal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibration and then stop. The change of vibration and stop of oscillator is treated by behind stage magnified circuit and converted to switching sign, triggering driving control for non-contact detection.

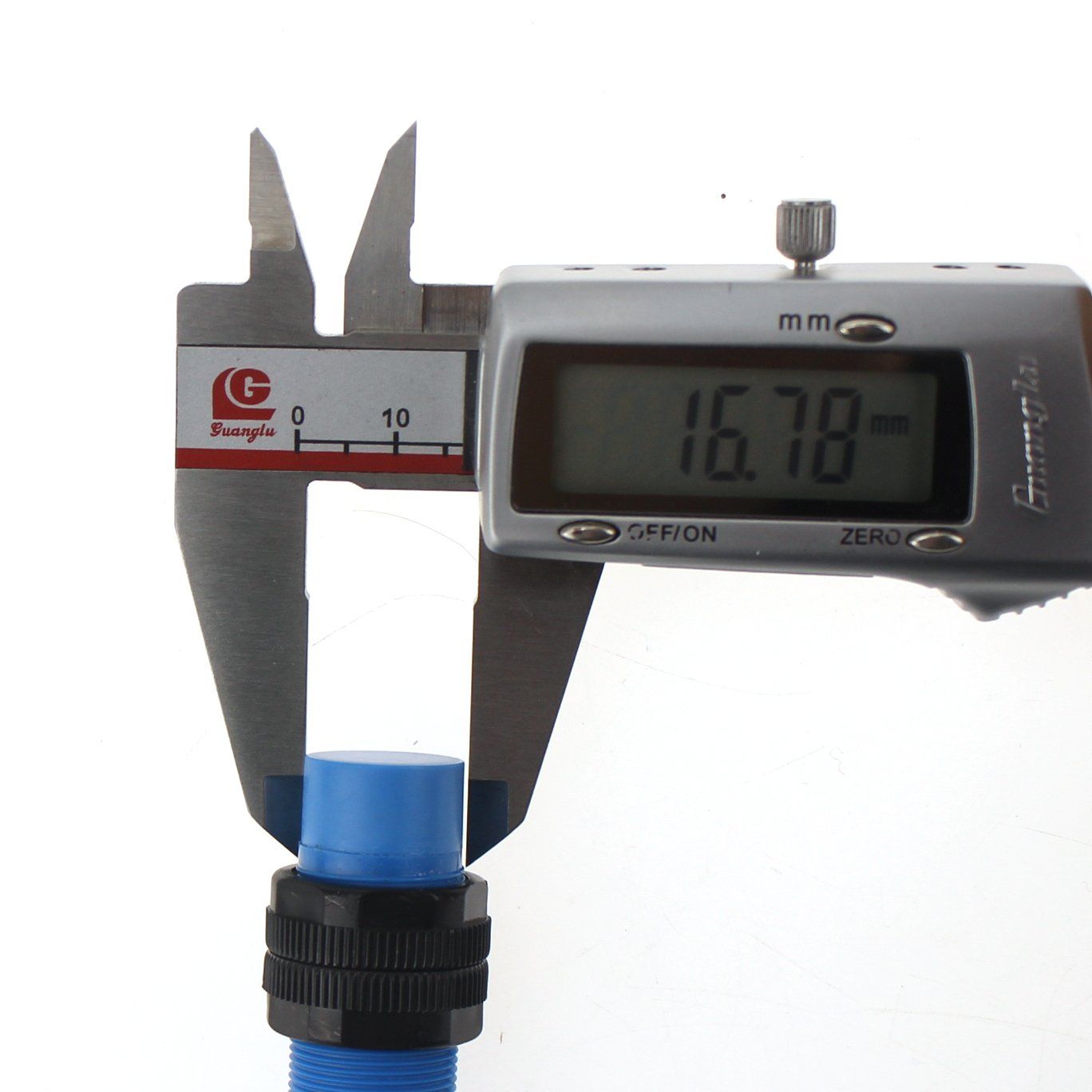

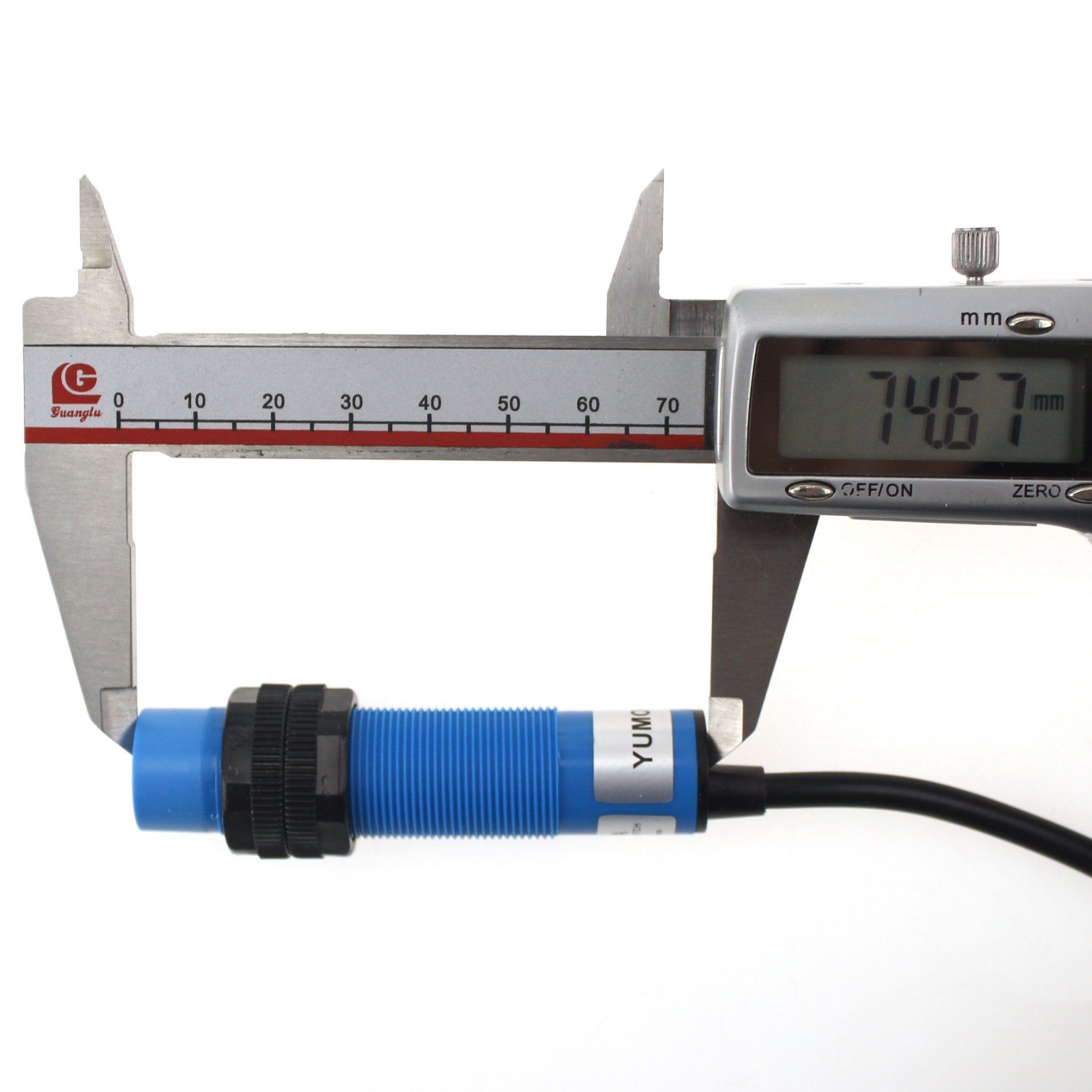

OVERALL DIMENSIONS |
LM18
| | | DETECTION DISTANCE 5mm |
F
l
u
s
h |
DC
10-
30
VDC
AC
90-
250
VAC | NPN | NO | LM18-3005NA | | NC | LM18-3005NB | | NO+NC | LM18-3005NC | | PNP | NO | LM18-3005PA | | NC | LM18-3005PB | | NO+NC | LM18-3005PC |
two wire
system | NO | LM18-3005LA | | NC | LM18-3005LB | SCR
Control-
lable
silicon | NO | LM18-3005A | | NC | LM18-3005B | | NO+NC | | | Relay output | | | | DETECTION DISTANCE 8mm |
F
l
u
s
h |
DC
10-
30
VDC
AC
90-
250
VAC | NPN | NO | LM18-3008NA | | NC | LM18-3008NB | | NO+NC | LM18-3008NC | | PNP | NO | LM18-3008PA | | NC | LM18-3008PB | | NO+NC | LM18-3008PC | two wire
system | NO | LM18-3008LA | | NC | LM18-3008LB | SCR
Control-
lable
silicon | NO | LM18-3008A | | NC | LM18-3008B | | NO+NC | | | Relay output | |
Controloutput | DC | 150mA | | SCR/ Relay | | | Output voltagc dropDC/AC | DC (NPN PNP)Type 3V below,2 wire type:blow 3.9V,below AC 10V DC<3V,AC<10V | | Consumption current | DC(NPN PNP)Type at DC 12V 8mA,at 24V 15mA,AC below 10mADC<15mA,AC<10mA | | Standard detected object | 8X8X1(A3 iron) | | Repeated precision | 0.01 | | DC/AC | 500Hz/IOHz |
| Working environment temperature | -25°C~+70°C | | Insulation resistance | 50MΩ | | Shell material | Metal | | Protection grade | IP67 | | Altemative model at home and abroad | E2E-XIR5-M1
|
|
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
