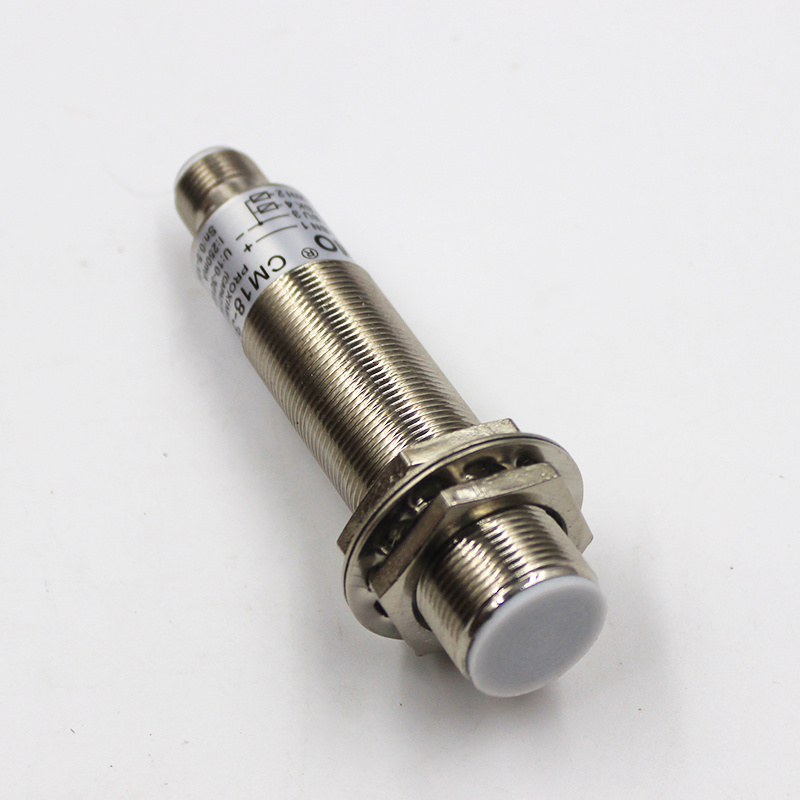

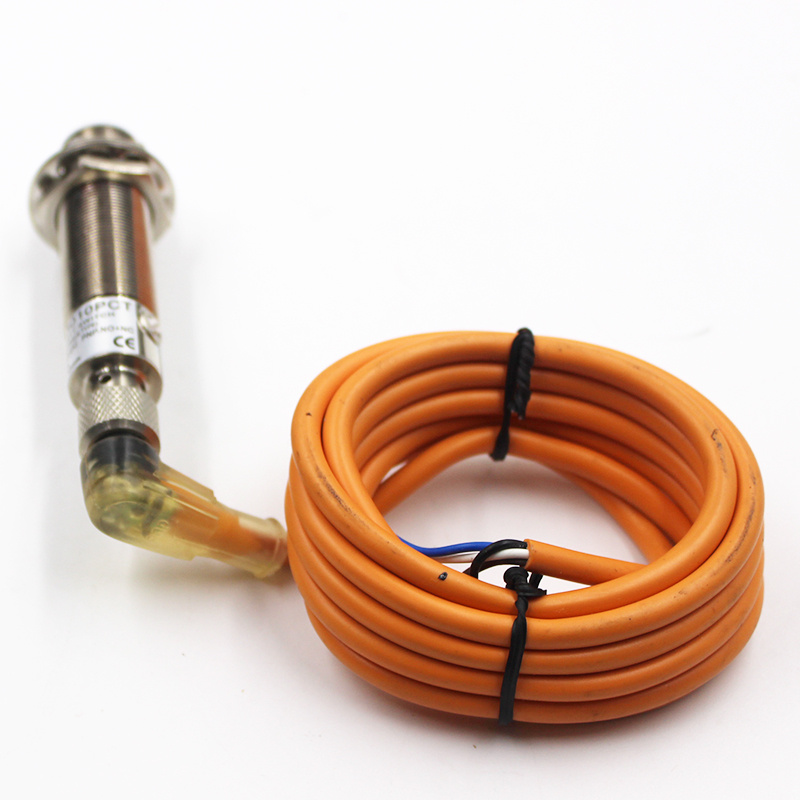

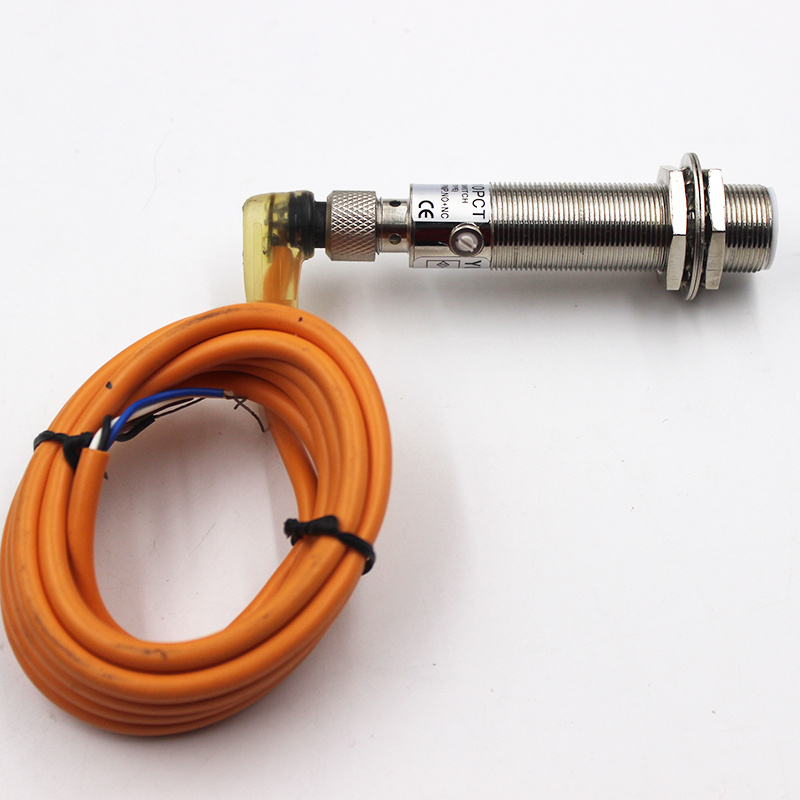

Yumo M18 Sensing 10mm Capacitive Proximity Switch Sensor

Yumo M18 Sensing 10mm Capacitive Proximity Switch Sensor
Price: US $ 2-10/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: CM18-3010PCT
Housing Diameter: 18mm
Detecting Distance: 10mm
Output Signal: NPN No
Voltage: 6-36VDC
Output Current: 200mA
Standard Detected Object: Conductor and Dielectric Body
Response Frequency: Metal or ABS Resin ,
IP: IEC Standard IP or 54
Consumption Current: <15mA
Working Environme: -25c~70c
Principle: Capacitive
Wires: NPN (',Three-Wires)
Standard: Standard
Application: Basement
Certification: CE

Product Description

CM18-3010PCT M18 sensing 10mm capacitive proximity switch sensor

Datasheet:
CM18 Capacitive  proximity switch
Detecting rang mm 0-5mmYUMO part no.
Flush DC 6-36VNPNNOCM18-3005NA
NCCM18-3005NB
NO+NCCM18-3005NC
PNPNOCM18-3005PA
NCCM18-3005PB
NO+NCCM18-3005PC
AC 90-250VSCRNOCM18-2005A
NCCM18-2005B
Detecting rang mm 0-8mm
Non-flushDC 6-36VNPNNOCM18-3008NA
NCCM18-3008NB
NO+NCCM18-3008NC
PNPNOCM18-3008PA
NCCM18-3008PB
NO+NCCM18-3008PC
AC 90-250VSCRNOCM18-2008A
NCCM18-2008B
CM18 Inductive proximity switch  Characteristics
Output currentDC200mA
SCR/relay300mA
Output voltage dropDC<3V;AC<7V
Consumption currentDC<15mA, AC<10mA
Standard detected objectConductor and dielectric body
Response FrequencyDC:50Hz ; AC: 10HZ
Working environment temperature -25ºC ~+70ºC
Insulation resistance50MΩ
Shell materialABS Resin , Metal
Protection gradeIEC Standard IP54
Alternative model LJC18A3-**
