Yumo M24 Detecting 10mm Inducitive Cylinder Proximity Switch Sensor

Name: Yumo M24 Detecting 10mm Inducitive Cylinder Proximity Switch Sensor
Brand: all-electronics-online.com
SKU: 827806685
Availability: InStock
Rating: 4.6 (111 reviews)

Price:	US $ 2-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

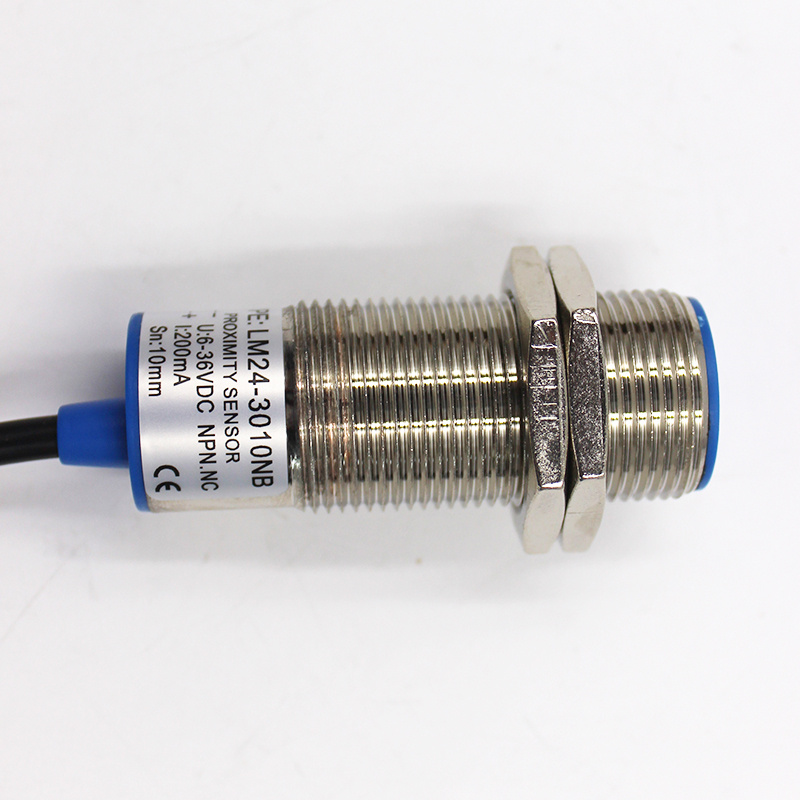

Prod Model:	LM24-3010NB
Housing Diameter:	24mm
Detected Distance:	10mm, 8mm
Voltage:	6-36VDC
Installation Type:	Non-Flush
Housing Material:	Metal
Operation Type:	No
Output Current:	200mA
Output Voltage Drop DC/AC:	DC<3V AC<10V
Response Frequency:	200Hz/25Hz
Protection Grade:	IP67
Type:	Microwave Sensor Switch
Wires:	NPN (',Three-Wires)
Standard:	Standard
Application:	Corridor
Certification:	CCC
Principle:	Inductive Sensor

Product Description

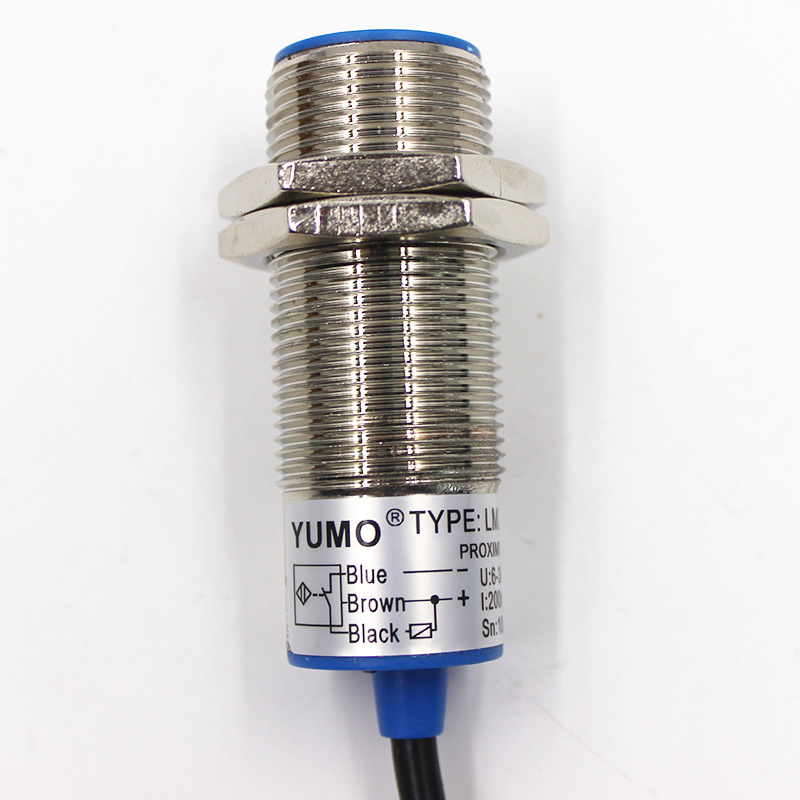

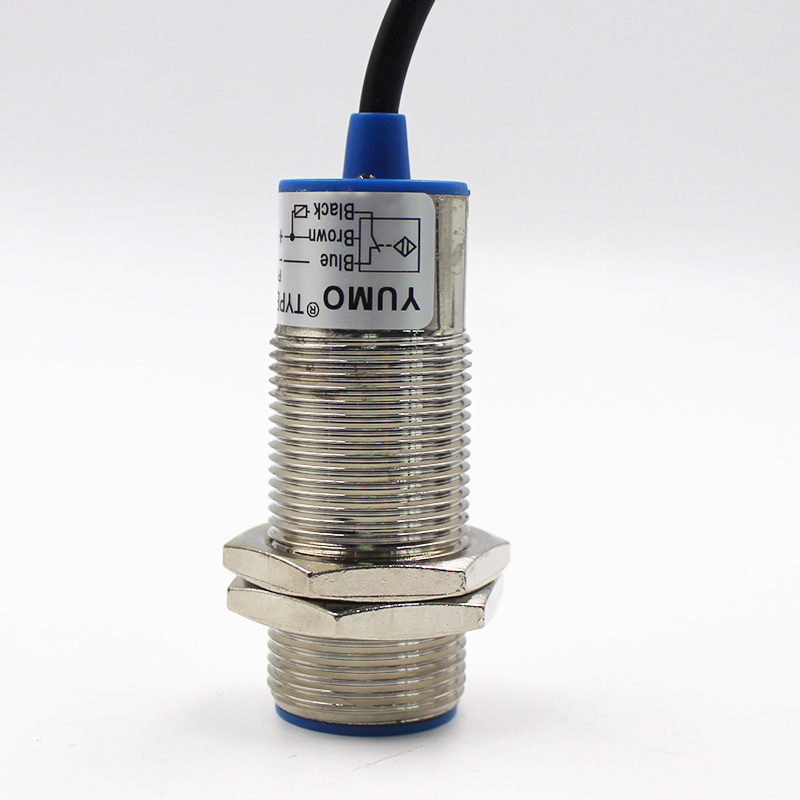

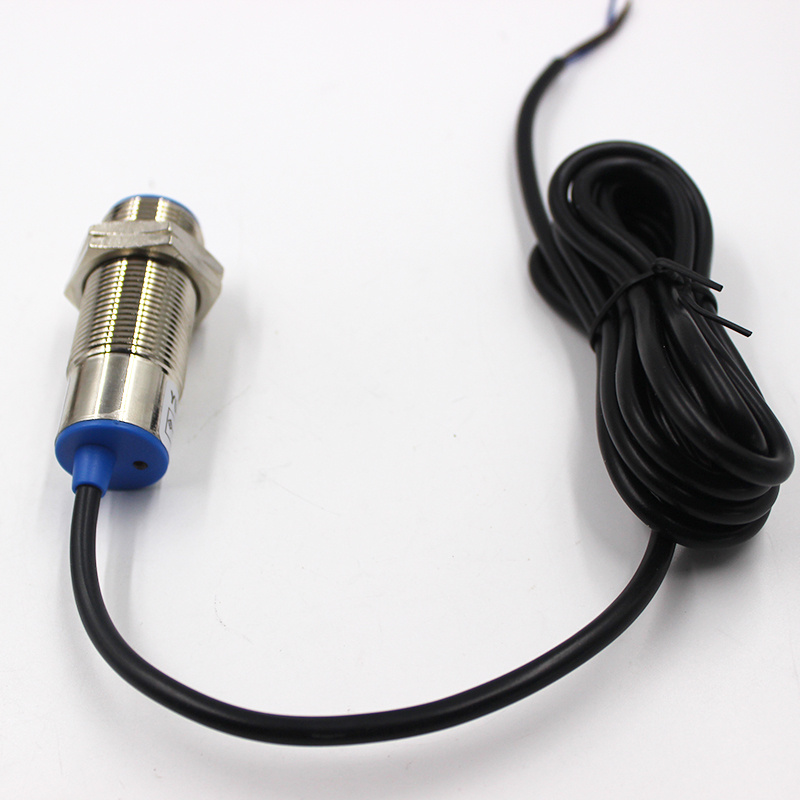

M24 detecting 10mm inducitive cylinder proximity switch sensor

Proximity switches are the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1"~2"metal object . YUMO Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch , YUMO will be your best choice .

Datasheet :

M24 Inductive proximity switch
Detecting rang 8mm				YUMO part no.
Flush	DC	NPN	NO	LM24-3008NA
			NC	LM24-3008NB
			NO+NC	LM24-3008NC
		PNP	NO	LM24-3008PA
			NC	LM24-3008PB
			NO+NC	LM24-3008PC
		2 Wires	NO	LM24-3008LA
			NC	LM24-3008LB
	AC	SCR	NO	LM24-2008A
			NC	LM24-2008B
			NO+NC	LM24-2008C
		Relay output
Detecting rang 10mm
Non-flush	DC	NPN	NO	LM24-3010NA
			NC	LM24-3010NB
			NO+NC	LM24-3010NC
		PNP	NO	LM24-3010PA
			NC	LM24-3010PB
			NO+NC	LM24-3010PC
		2 Wires	NO	LM24-3010LA
			NC	LM24-3010LB
		SCR	NO	LM24-2010A
			NC	LM24-2010B
			NO+NC	LM24-2010C
		Relay output
LM24 Sensor Characteristics
Output current	DC	200mA
	SCR/relay	300mA
Output voltage drop DC/AC		DC<3V AC<10V
Consumption current		DC<15mA; AC<10mA
Standard detected object		24×24×1(A3 Iron)
Repeated precision		0.05
Response Frequency		200Hz/25Hz
Working environment temperature		-25ºC ~+75ºC
Insulation resistance		50MΩ
Shell material		Metal
Protection grade		IP67
Alternative model		LJ24A4-10-**
