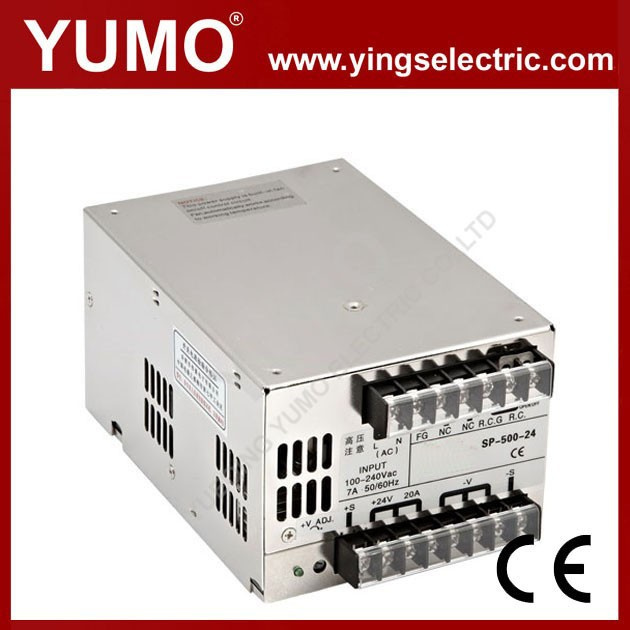

Yumo Sp-500 500W 12/24/48V Single Output High Efficiency Switching Power Supply
| Price: |
US $ 65-69/Piece |
| Trade Terms: |
BY SEA BY AIR |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SP-500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
>500W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
CCC |
| Brand: |
Yumo |
Product Description
Specifications:
SP-500-12
1. CE ROHS approved
2. AC85~264V 120~370VDC input
3. 84% efficiency
4.2 years warranty
Notice:
a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d. 2 years warrenty ,buy with confidence
General Features:
Model
Specification | SP-500-12 | SP-500-13.5 | SP-500-15 | SP-500-24 | SP-500-27 | SP-500-48 |
DC output voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
Output voltage error | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
Rated output current | 40A | 36A | 32A | 20A | 18A | 10A |
Output current rage | 0-40A | 0-36A | 0-32A | 0-20A | 0-18A | 0-10A |
Wave and noise | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 200mVp-p | 300mVp-p |
Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability(Note5) | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
DC output power | 480W | 486W | 480W | 480W | 486W | 480W |
Efficiency | 84% | 84% | 83% | 85.5% | 86.5% | 87% |
Adjustable range for DC voltage | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 24-30V | 41-56V |
AC input voltage range | 88132VAC/176264VAC BY SWITCH 4763Hz;124370VDC |
AC Input current | 7A/115V 3.5A/230V |
Power Factor | 0.95/100240VAC |
AC impulse current | 18A/115V 36A/230V |
Leakage current | <3.5mA/240VAC |
Overload protection | 105%135% TypePULSING HICCUP SHUTDOWN Reset: auto recovery |
Over-voltage protection | 13.816.2V | 15.518.2V | 1821V | 27.632.4V | 3136.5V | 57.667.2V |
Fan control,O.T.P. | RTH1 OR RTH2>=50 FAN ON,<=45 FAN OFF,>=70 Cut off output |
Temperature coefficient | ±0.03%(050) |
Setup rise hold up time | 1.5s,50ms,20ms |
Vibration | 10500Hz,2G 10min./1cycle,Period for 60min,EACH AXES |
Withstand voltage |
Input and output interval3KVAC,Input and enclosure1.5KVAC Output and enclosure0.5KVAC
|
Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure500VDC/100M Ohms |
Working temperature and humidity | -10+50,20%90%RH |
Store temperature and humidity | -20+85,10%95%%RH |
Overall dimension | 185*20*93mm |
Weight | 1.8Kgs |
Safety standards | UL1950,TUV EN60950 |
EMC standards | IEC1000-42,3,4,5,6,8,11 IEC100-3-2 |
