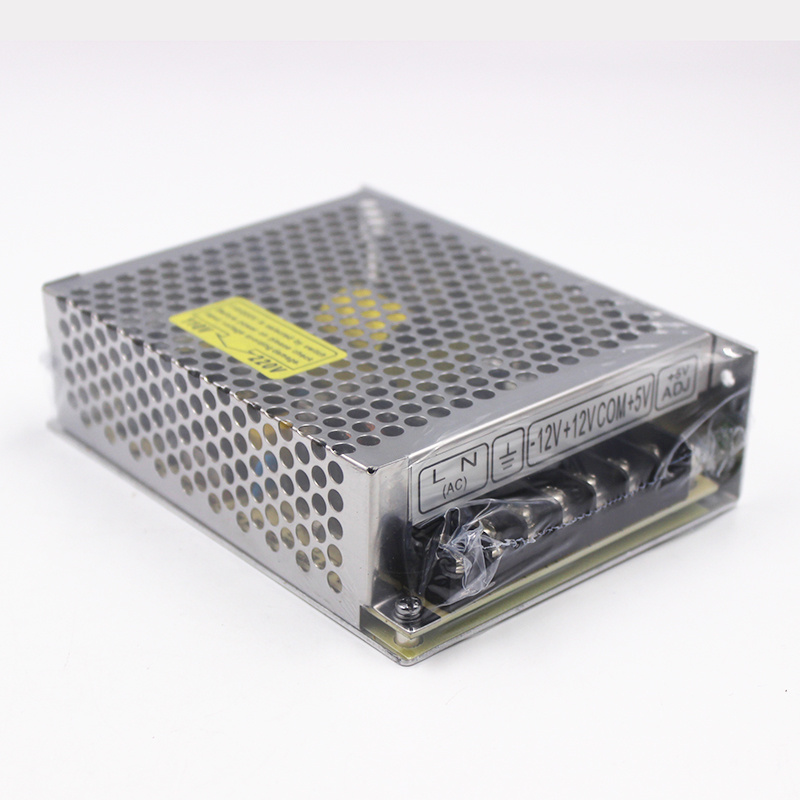

Yumo T-30b Ce RoHS Triple Output 30W Switching Power Supply
| Price: |
US $ 7-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
T-30B |
| Type: |
Triple Switching Power Supply SMPS |
| Input Current: |
0.8A/115V 0.45A/230V |
| Output Voltage: |
5V 12V -12V |
| Current: |
3A 1A 0.5A |
| Efficiency: |
70% |
| Frequency: |
47-63Hz |
| Over-Load Protection: |
105%~150%Rated Output Power Start The Over Load Pr |
| Output Type: |
Triple |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Input Voltage: |
85~132VAC 170~264VAC 47~63Hz 240~370VDC |
| Brand: |
Yumo |
Product Description
T-30B CE RoHS approved 5V 12V -12V Triple Output 30W switching power supplySpecifications
1.The low price with high quality
2.CE ROHS
3.2 years quality assurance
4.LED power supply
5.small volume,high efficiency
Model | T-30B |
Output | DC output voltage | 5V | 12V | -12V |
Output voltage tolerance | ±1% | ±1% | ±1% |
Rated output current | 3A | 1A | 0.5A |
Output current | 0.5~3A | 0.1~1A | 0.1~0.5A |
Output power | 20W | 12W | 6W |
Ripple and noise | 50mVp-p | 100mVp-p | 50 mVp-p |
DC adjustable range | ±10% | ±10% | ±10% |
Setup rise hold up time | 200ms,100ms,30ms |
Input | Input voltage range | 85~132VAC 170~264VAC 47~63Hz 240~370VDC |
AC input current | 0.8A/115V 0.45A/230V |
Efficiency | 70% | 70% | 70% |
AC inrush current | Cold start current 18A/115V 36A/230V |
Leakage current | smaller than0.75mA/240VAC |
Protection characteristic | Over load protection | 105%~150%rated output power start the over load protection |
Protection mode : cut off the output,auto-recovery |
Over-voltage protection | |
Environment | Working temperature | -10°C~+60°C;20%~90%RH(please refer to the Load deduction curve) |
Security | Withstand voltage | Between input and output::1.5KVAC The input and ground : 1.5KVAC The output and ground :0.5KVAC |
Insulation resistance | Between input and output: The input and ground, the output and ground: 100M 0hms /500VDC |
Others | Weight/Packing | 0.4kg/45PCS/19kg |
