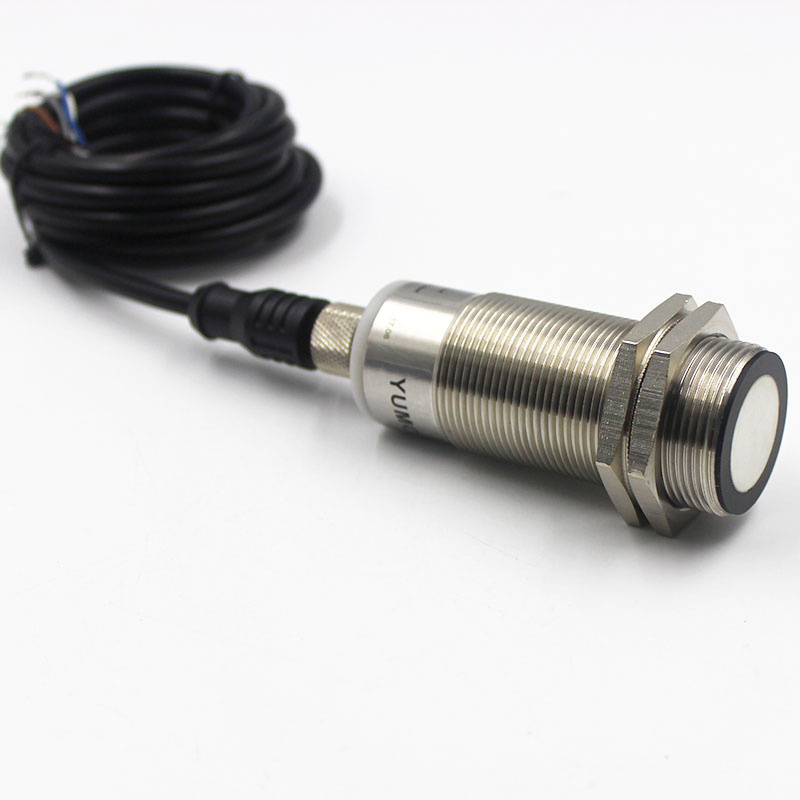

Yumo Waterproof IP67 Ub2000 Series M30 2m Distance Ultrasonic Sensor
| Price: |
US $ 100-130/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
UB2000-30GM-E4-V15 |
| Housing Diameter: |
30mm |
| Sensing Range: |
2000mm |
| Adjustment Range: |
120....2000mm |
| Transducer Frequency: |
~112kHz |
| Response Delay: |
~195ms |
| Operation Voltage: |
10----30VDC |
| Output Type: |
1 Switch Output E5, PNP No/Nc Programmable |
Product Description
YUMO UB2000-30GM-E4-V15 2m distance liquid level measurement Ultrasonic sensor| Technical data |
| General Specifications |
| Sensing distance 80…2000mm |
| Adjustment range 120…2000mm |
| Unusable area 0…80mm |
| Standard target plate 100mm×100mm |
| Transducer frequency About 112kHz |
| Response delay About 195ms |
| Indicators/Operating means |
| LED blue Power on |
LED yellow indication of the switching state
Flashing:program function object detected |
| LED red permanently red: Error Red,flashing:program function,object not detected |
| Electrical specifications |
| Operating voltage UB 10…30VDC,ripple10%ss |
| No-load supply current ≤20mA |
| Input |
Input type 1 TEACH-IN input Operating distance
A1:-UB…+1V,operating distanceA2:+6…
+ UB Input impedance:>4.7KΩ
TEACH-IN programmable pulse :≥1S |
| Output |
| Output type 1 switch output E5,PNP NO/NC,programmable |
| Rated operational current 200mA,short-circuit/overload protected |
| Default setting Switching point A1:70mm Switching point A2: 800mm |
| Voltage drop ≤ 3V |
| Repeat accuracy ≤ 1% |
| Switching frequency f ≤ 4HZ |
| Range hysteresis H 1% of the set operating distance |
| Temperature influence ± 1.5% of full-scale value |
| Ambient conditions |
| Ambient temperature -25…70ºC(248...343K) |
| Storage temperature -40…85ºC(233...358K) |
| Mechanical specifications |
| Protection grade IP67 |
| Connection V1 connector(M12×1),4-pin |
| Material Housing brass,nickel-plated |
Transducer epoxy resin/hollow glass sphere mixture;
foam polyurethane,cover PBT |
| Weight 25g |
| Compliance with standards and di |
Standard conformity EN 60947-5-2:2007
IEC 60947-5-2:2007 |
