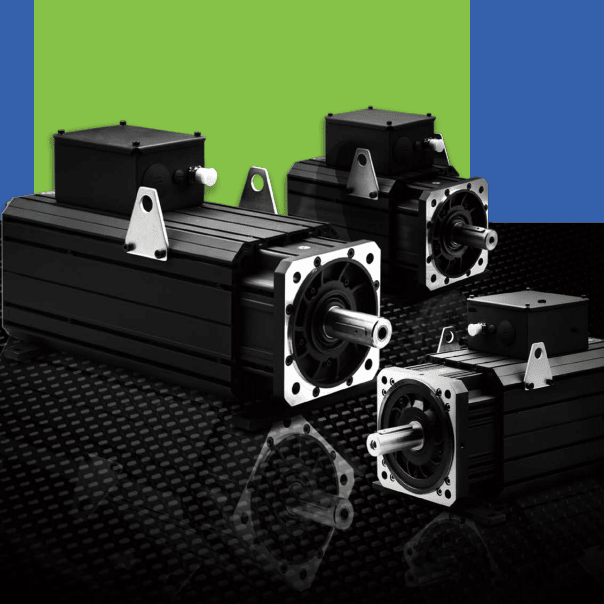

Yunsheng Servo AC Pmsm Servo Motor for Plastic Injection Machine

Yunsheng Servo AC Pmsm Servo Motor for Plastic Injection Machine
Price: Negotiable/Piece
Min Order: 20/Piece
Pay Type: L/C,T/T
Prod Model: ac pmsm servo motor
Motor: Servo Motor
Usage: Plastic Injection Machine
Minimal Power: 6 Kw
Maximum Power: 77.52 Kw
Rpm Range: 1500 ~ 2450
Cooling: Fan or Oil
Protection: IP54
PTC: 130
Number Of Stator: Three-Phase
Function: Servo
Certification: Ce
Brand: Yunsheng

Product Description

Motor Identifier: 215YSD15F
Nominal torque T100: 128 N.M
Nominal speed nN: 1500 RPM
Nominal power Pn: 22 KW
Maximum speed Wmax: 1950 RPM

Rotor inertia Jm: 13.8/13 kg m2 10-3
Motor insulation: F grade
Winding insulation: H grade
Cooling: Air cooling
Waterproof: IP54
Threshold of built-in PTC: 130 ºC
Pole number: PN=8
Winding connection: Y type
Torque constant Kt: 3.3 Nm/A
Winding resistance Rw: 0.345 Ohm
Winding inductance Lw: 6.169 mH
Nominal voltage Vn: 380 Vrms
Back Electromotive Force @ 1000RPM V1000: 204 Vrms
Nominal current In: 41 Arms
Working frequency Fn: 100 Hz

Motor suspended in horizontal position in free still air, ambient temperature of 20 ºC
Motor flanged connection in horizontal position, ambient temperature of 20 ºC
With interference coupling and infinite load inertia applied in the middle of the shaft extension
Standard type
Typical value at tolerance of ±10%



Ningbo Yunsheng Co., Ltd, with its more than ten subsidiary enterprises, such as:

Ningbo Yunsheng High-tech Magnetics Co., Ltd.,

Ningbo Yunsheng Motor Co., Ltd.,

Ningbo Yunsheng Servo Control Division,

And Nikko Electric Industry Co., Ltd., etc.,

Is a state key high-tech enterprise listed among the top 100 of China's Electronic and Information Technology Companies and designated as a home for post-doctorate research station. It has been listed (IPO) in Shanghai Stock Exchange since October 30, 2000.

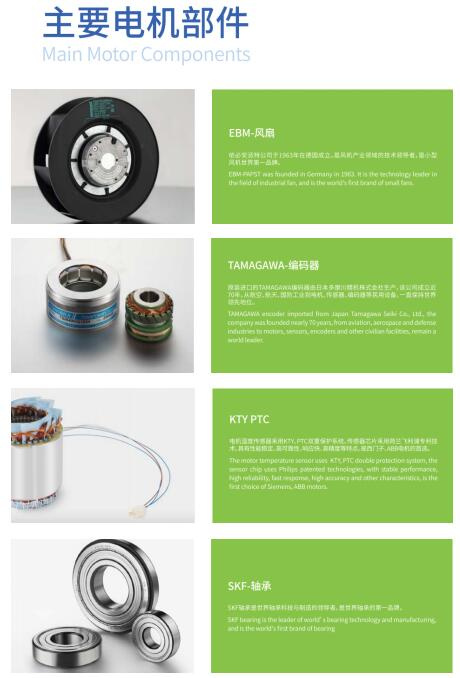

The Servo Motor Division, inheriting the corporate culture gene from its holding company Ningbo Yunsheng Co., Ltd., is devoted to supply various servo motors in the field of equipment application on a basis of research in new materials, new energy and mechanical-electronic integration industry. And commits to be growing up together with its valuable customers The company established a professional institute on the R&D of the servo technology by an excellent team comprising about thirty high-end research staff of which have the degrees of master or doctor, which ensures the leading position in technology of the company With the high-quality rare earth magnets produced by Ningbo Yunsheng High-Tech Magnetics Co., Ltd., assembled in the rotors and other key components with world-class quality, the company always pursuant to assure the reliability and consistency of the product effectively. We are committed ourselves to provide every single high-quality motor, with equipped by the imported top-rank servo motor manufacturing facility, and the implementation of a strict quality control system.
