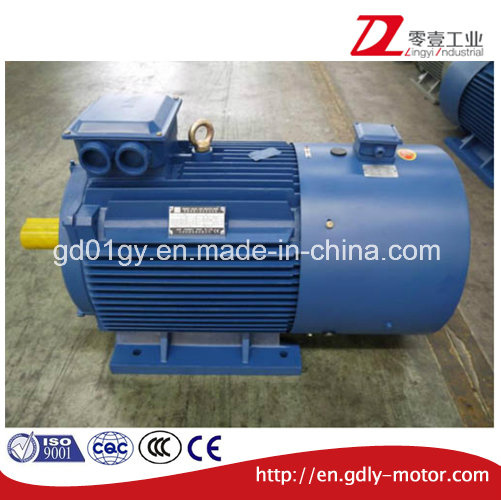

Yvp Series Variable Frequency Three Phase Electric AC Motor for Mining Machinery, IP55

Name: Yvp Series Variable Frequency Three Phase Electric AC Motor for Mining Machinery, IP55
Brand: all-electronics-online.com
SKU: 809680875
Availability: InStock
Rating: 5 (59 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YVP
Frame Size:	H90-355
Runing Zone For Constant Torque:	5~50Hz
Runing Zone For Constant Power:	50~100Hz
Color:	Grey (as Customers Required)
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	Ce
Brand:	TF

Product Description

YVF2 Frequency Variable Adjustable Speed Electric Motor

Motor Summary

Frame size	90-355
Pole	2-8
Rated voltage	380V
Protection degree	IP54/IP55
Cooling method	IC416
Insulation class	F
Running zone for constant torque	5-50Hz
Running zone for constant power	50-100Hz
Ambient Temperature	-15°C~40°C
Altitude	not exceed 1000 Meter
Working Duty	S1(Continuous)

Motor Description

1/. YVF2 series converter-fed three phase asynchronous motor (IP54) is the low voltage totally enclosed fan cooled squirrel cage asynchronous motor.

2/. YVF2 series motor mounting dimension and power rating conform to international IEC standards, and accordance with German DIN42673 standard

3/. Frame size 280-355 motors equipped with oil drain and injection system

Application fields

Machine tools, water pump, blower, compressor, and transportation, print, agriculture, food and more industries.

FAQ
Q: What is your MOQ of this item?
A: 5PCS.
For the first time cooperation, we accept trial sample order.

Q: What's your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

Q: What's the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.

Q: Can we used our own brand on motors ?
A: Sure, we can offer OEM service,
manufacture with your authorized brand

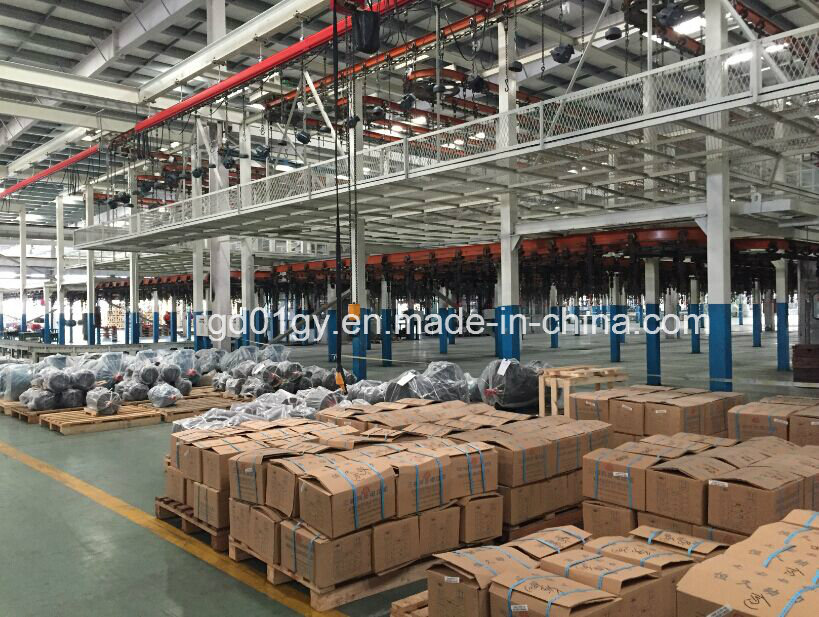

Factory Photo

Our Office Block

Company Staff

Guangdong Lingyi Industrial Technology Co., Ltd set up since 1997, with 20 years development, we become one of the best companies in the industry for mechanical and electrical products system integration, logistics service and investment. The company has set up 21 subsidiaries located in southern, central, eastern and northern China, .

The products categories include:

1, Transmission Products: High and low voltage electric motors, geared motors, gear boxes, bearings, inverter and complete electrical cabinets

2, Automation Products: Automation systems, motion control, low voltage control products and systems, sensor and communication products,

3, Power distribution Products: Low-voltage power distribution products, medium voltage circuit breaker, intelligent building system and equipment.

4, Machinery components.

Count on our 20 years industry experiences. Guangdong Lingyi Industrial Technology Co., Ltd give you one-stop industrial products sourcing, procurement, system integration and services, satisfy your different needs in the industry.

We are looking forward to cooperating with you.
