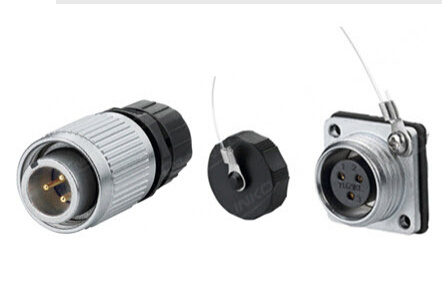

Yw-16 Waterproof Power Connector with 3pins

Name: Yw-16 Waterproof Power Connector with 3pins
Brand: all-electronics-online.com
SKU: 803097165
Availability: InStock
Rating: 4.5 (34 reviews)

Price:	US $ 0.1-3/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YW-16-C03PE, YW-16-J03SX, YW-16-J03PE, YW-16-C03SX
Contact Diameter × Number:	Φ1.5×3
Rated Current:	10A
Operating Voltage (AC.V.RMS):	500V
Contact Resistance:	<2.5mΩ
Withstanding Voltage(AC.V)1 Minute:	2500V
Protection Level:	IP67
Assembly Wire:	Solder
Flammability Rating:	UL94-V0
Copper Needles:	Copper Alloy(Gold-Plated)
Connecting Mode:	Screw Connect
Application:	UHF
Gender:	Male and Female

Product Description

Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727071542_81589.jpg

YW-16 connectors meet 16MM hole size, the power and signal transmission through distribution and 5A and 10A current, shell of zinc alloy design, more in line with the signal transmission shielding requirements, widely used in industrial LEDscreen design, audio and video transmission and other industrial equipment.

1.All zinc alloy shell, intact electromagnetic and radio frequency interference protection, while can adapt the demands of top-grade products.
2.Outer screw locking device, solid and safety.
3.16MM mounting dimensions.
4.Quickly and easy nut locking system design.
5.Hanging dust cover design avoid matters; high safe performance, easy to operate.
6.3/9 pins optional.
7.Rated current: 10A/5A rms.
8.Slip-resistant outer circle.

Cable specification: 1.0mm²~1.5mm²/18~16 AWG
Diameter range: Φ3mm~Φ7mm
Contact diameter × number: Φ1.5×3
Rated Current: 10A
Operating voltage (AC.V.rms): 500V
Contact resistance: <2.5mΩ
Temperature rise: 10A contact temperature below 30ºC, 12 Acontact temperature below 40ºC, 15A contact temperature below 50ºC.

Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP65	Durability:	>500 times
Working temperature:	-40ºC~80ºC	Connecting mode:	screw connect
Assembly wire:	solder	Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0
