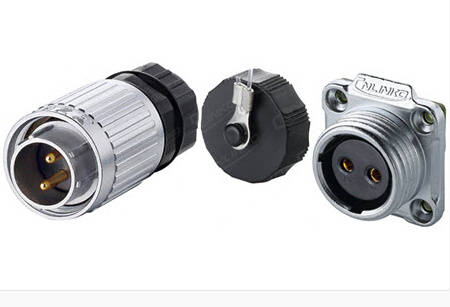

Yw-20 Waterproof Power Connector with 2pins

Prod Model:	YW-20-C02PE, YW-20-J02SX, YW-20-J02PE, YW-20-C02SX
Contact Diameter × Number:	Φ2.7×2
Rated Current:	20A
Operating Voltage (AC.V.RMS):	500V
Contact Resistance:	<1mΩ
Withstanding Voltage(AC.V)1 Minute:	2500V
Protection Level:	IP67
Assembly Wire:	Solder
Flammability Rating:	UL94-V0
Copper Needles:	Copper Alloy(Gold-Plated)
Connecting Mode:	Screw Connect
Application:	UHF
Gender:	Male and Female

Product Description

Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727075238_99546.jpg

YW-20 waterproof connector, zinc alloy shell, effective safety and signal shielding, using the locking screw, more secure and reliable.

1.All shell is made from zinc alloy, with complete electromagnetic and radio frequency interference protection, while can meet the demands of top-grade products.
2.Outer screw locking device, solid and safety.
3.20MM optional mounting dimensions.
4.Quickly and easy nut locking system design.
5.Hanging dustproof-cover design avoids the entering of other foreign matters; high safe performance, easy to operate
6.2-12pins optional.
7. 20A/12A/5A rms rated current.
8.Slip-resistant outer circle.

Cable specification: 2.5mm²~4mm²/14~12 AWG
Diameter range: Φ8mm~Φ12mm
Contact diameter × number: Φ2.7×2
Rated Current: 20A
Operating voltage (AC.V.rms): 500V
Contact resistance: <1mΩ
Temperature rise: 20A contact temperature below 30ºC, 25 Acontact temperature below 40ºC, 30A contact temperature below 50ºC.


Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP67	Durability:	>500Times
Working temperature:	-40ºC~80ºC	Connecting mode:	Screw connect
Assembly wire:	Solder	Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0

Packaging & Shipping

Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 3-5 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.

Our Services

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
